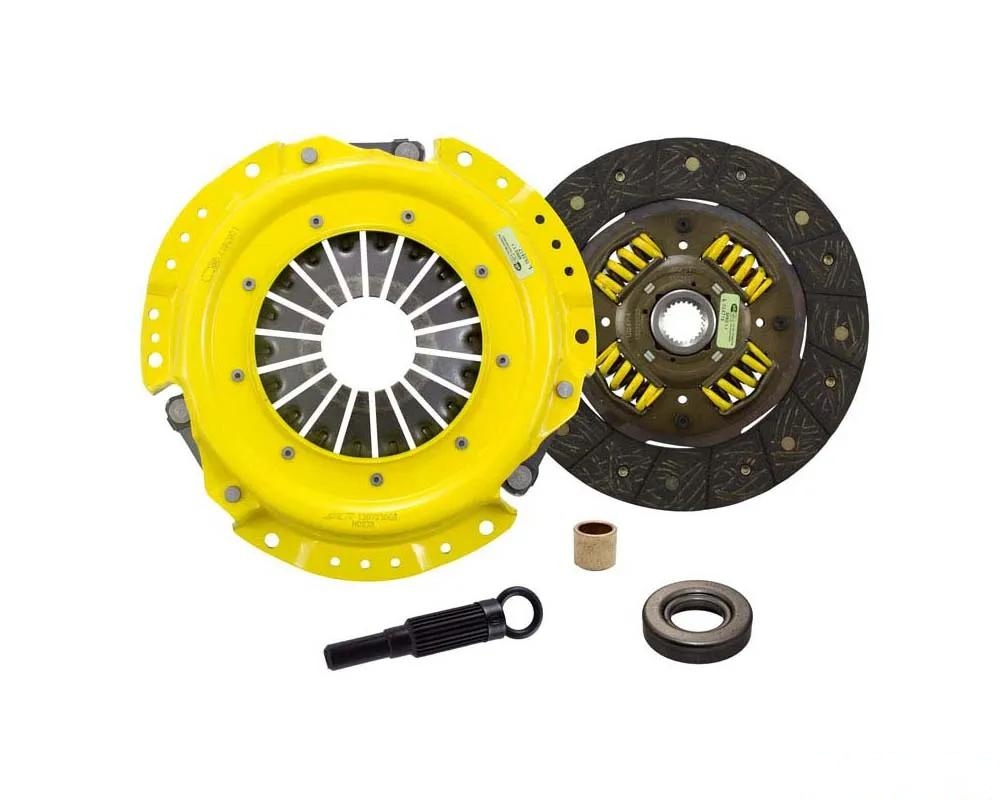

ACT NX4-XTSS Performance Clutch Kit for Nissan 240SX S13

If you’re a proud owner of a Nissan 240SX S13 from 1989 or 1991-1994, the ACT NX4-XTSS Performance Clutch Kit is engineered specifically for your ride. This kit features an Xtreme pressure plate that’s built for the most demanding drivers, ensuring you get the performance you crave whether you're hitting the streets or the track.

Why Choose the NX4-XTSS?

The NX4-XTSS kit utilizes an exclusive diaphragm design that increases clamp load while reducing deflection, which ultimately maximizes clutch life. Every diaphragm undergoes a meticulous four-stage heat-treating process, guaranteeing durability and performance that can withstand the heat of spirited driving.

Performance Features

• Moderate to heavy pedal effort with smooth engagement, transitioning from OE to mild gear rattle for a more engaging driving experience.
• Longer friction life thanks to ACT's innovative diaphragm design.
• Precision-engineered and dynamically balanced for high RPM reliability.
• Premium organic friction materials with high copper content enhance heat transfer and durability, reducing fade during intense driving.
• Perfectly suited for both street and race applications.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 14.6 lbs
• Torque Capacity: 370 ft/lbs (1.09 times over OE)

Installation Instructions

• For detailed installation instructions, CLICK HERE.

Customer Feedback

Nissan 240SX owners have noted how the NX4-XTSS transformed their driving experience. One owner remarked, “After installing the ACT NX4-XTSS on my 1991 240SX, I noticed a significant improvement in shift response. The engagement is smooth, and I can feel the extra torque capacity during hard pulls.”

Elevate your driving experience with the ACT NX4-XTSS Performance Clutch Kit—engineered for those who demand the best from their Nissan 240SX S13.
