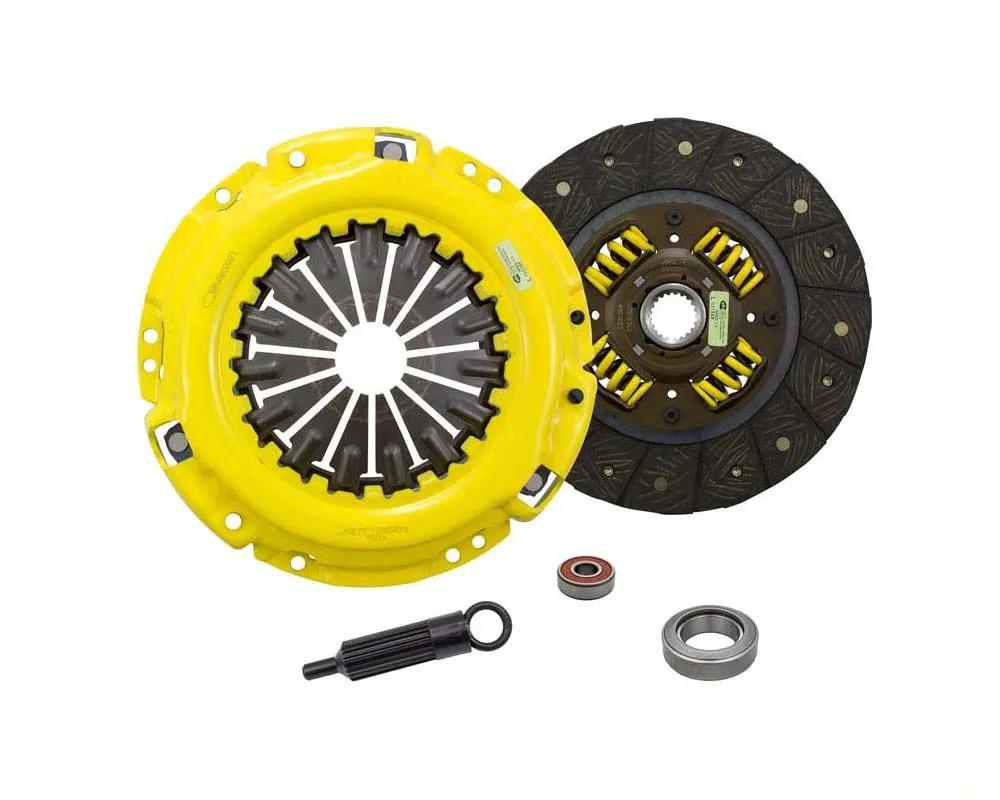

ACT TS1-XTSS Clutch Kit

The ACT TS1-XTSS is engineered for drivers seeking a robust clutch solution that can handle demanding conditions. This kit integrates the Xtreme pressure plate, which utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring exceptional performance under pressure.

Clutch Components

The pressure plate features precision cover stampings that contribute to its rigidity and consistency, critical for high-performance applications. The accompanying performance street disc is crafted from premium organic materials, enriched with high copper content for improved heat transfer. This design is paired with a steel-backed lining to enhance burst strength and durability. The reduced marcel in the disc allows for quicker shift action, making it an ideal match for the ACT pressure plate.

Installation Notes

• For detailed installation instructions, CLICK HERE.

Key Features

• Moderate to heavy pedal effort with smooth engagement; designed to manage OE to mild gear rattle.
• Extended friction life due to ACT's exclusive diaphragm design.
• Constructed with premium organic friction materials to provide excellent heat tolerance and reduced fade.
• Suitable for both street and race applications, offering versatility in performance.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16.7 lbs
• Torque Capacity: 350 ft/lbs
• Torque Capacity Over OE: 0.62

Fitment

The ACT TS1-XTSS is compatible with the following models:

• Toyota 4Runner (1985-1987)
• Toyota Celica (1981-1985)
• Toyota Cressida (1984-1987)
• Toyota Pickup (1985-1987)
• Toyota Supra (1986-1988)
