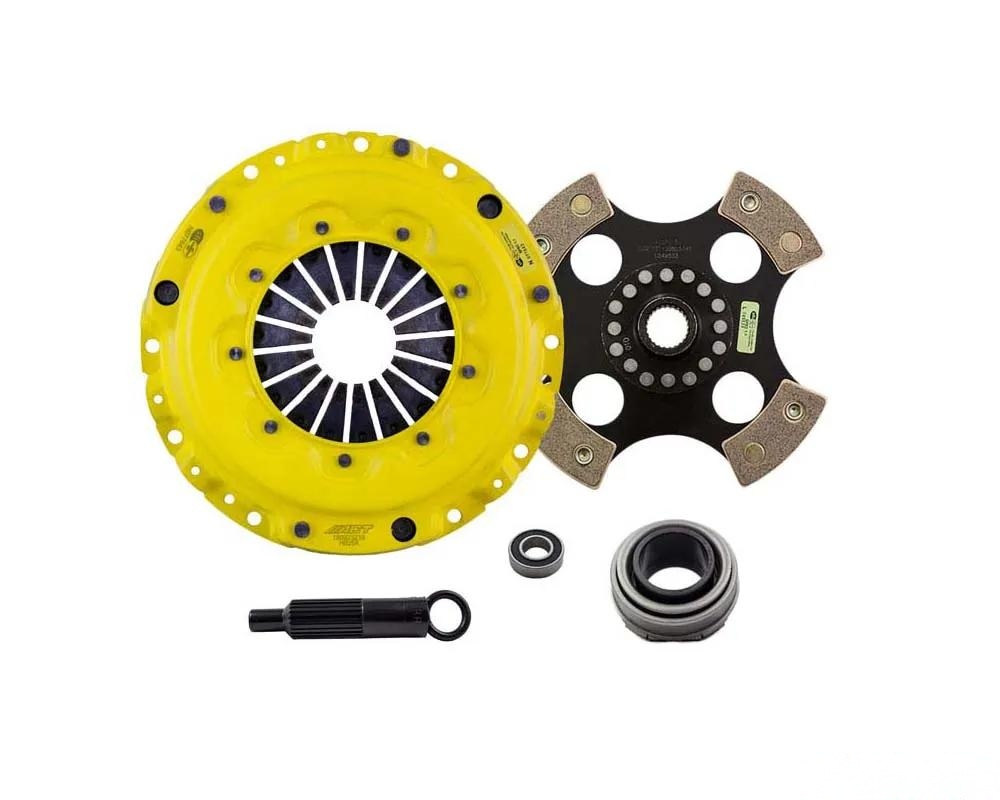

ACT AI3-XTR4 Advanced Clutch XT/Race Rigid 4 Pad Kit

For those who push their vehicles to the limit, the ACT AI3-XTR4 Advanced Clutch XT/Race Rigid 4 Pad Kit is designed for the serious driver. This kit features an Xtreme pressure plate that’s engineered to handle the demands of high-performance driving, making it a perfect fit for your 1992-1993 Acura Integra.

Why Choose the AI3-XTR4?

The ACT Xtreme pressure plates utilize a unique diaphragm design that increases clamp load and reduces deflection, maximizing clutch life under extreme conditions. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring top-notch durability and performance. The precision cover stampings enhance rigidity and consistency, allowing you to shift with confidence.

Equipped with a 4-pad rigid race disc made from premium ceramic friction materials, this kit ensures that you get the most out of your shifts. The chrome-moly hub is heat-treated for added strength, while the lightweight design promotes quicker shifts and a smoother driving experience. While the engagement is more aggressive, the payoff is faster shifts that keep you in control.

Installation Details

• For detailed installation instructions, CLICK HERE

Key Features

• Moderate to heavy pedal effort with aggressive engagement and increased gear rattle.
• Designed for moderate friction life, enhanced by ACT's proprietary diaphragm design.
• Constructed with select ceramic friction materials for superior heat tolerance and performance.
• Recommended for race use only, ensuring that it meets the demands of serious driving.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12 lbs
• Torque Capacity: 410 ft/lbs (1.2 times over OE)

Real-World Feedback

Acura Integra owners have shared their experiences with the AI3-XTR4, noting that after installation, they felt a significant improvement in responsiveness and shift speed. One owner remarked, “I installed this clutch on my 1993 Integra, and the difference was night and day—shifting is now so much quicker, and I can really feel the power transfer.”

Upgrade your clutch setup with the ACT AI3-XTR4 kit and experience the performance boost that comes from a clutch designed for the track and built for enthusiasts.
