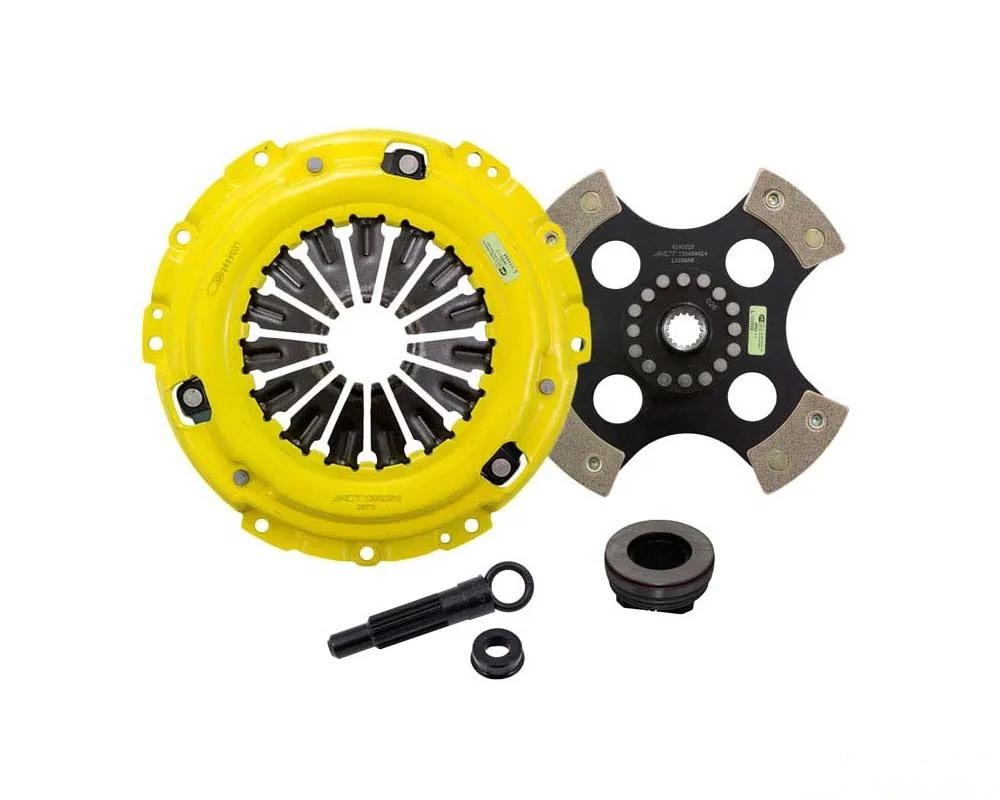

ACT DN3-XTR4 Clutch Kit

The ACT DN3-XTR4 is engineered for drivers demanding exceptional performance and reliability. This clutch kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to enhance clamp load, minimize deflection, and extend clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring it can withstand high-stress driving conditions.

Key Features

• Moderate to heavy pedal effort with aggressive engagement and increased gear rattle.
• Utilizes select ceramic friction materials for high heat tolerance and maximum performance.
• Designed specifically for race applications, providing a harsher engagement for quicker shifts.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.
• Includes pressure plate bolts (M8-1.25 x 16mm) for secure installation.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Pressure Plate Type: Xtreme
• Torque Capacity: 695 ft/lbs (1.2 times over OE)
• Product Weight: 13.9 lbs

Installation Notes

• Conversion kit replaces modular clutch; requires the use of an ACT flywheel (not included).
• Grease is included for installation.
• Alignment tool is provided for precise installation.

Fitment

This clutch kit is confirmed to fit the Dodge Neon (2000-2005).
