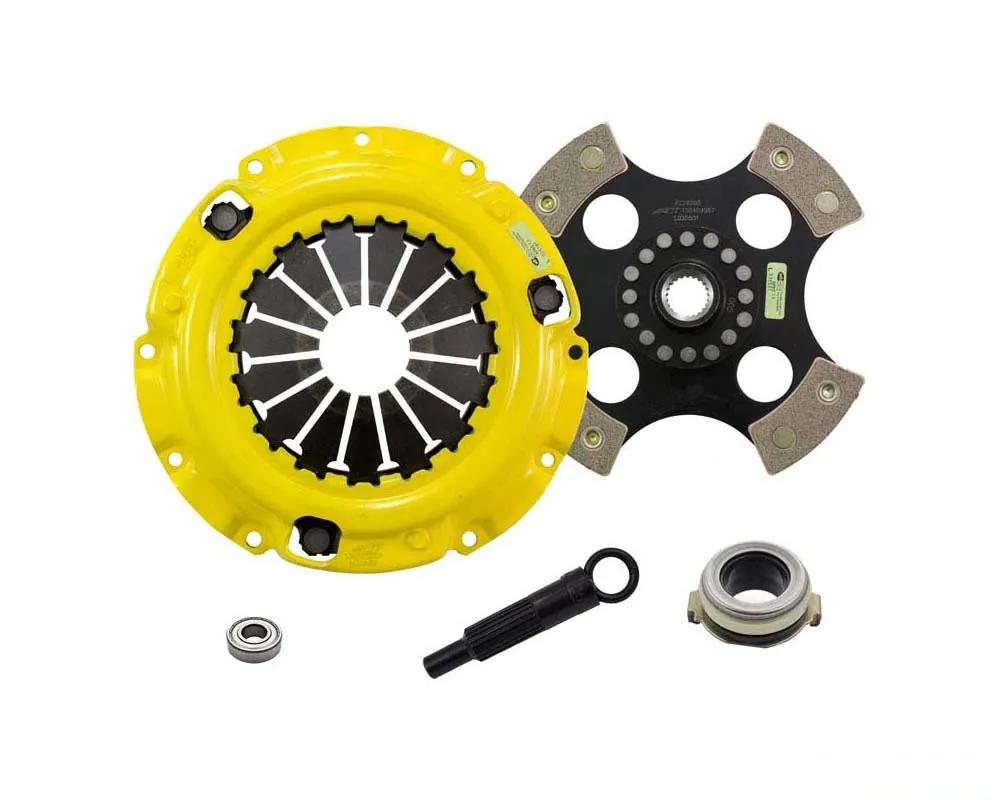

ACT Z66-XTR4 Advanced Clutch XT/Race Rigid 4 Pad Kit

The ACT Z66-XTR4 is designed for performance enthusiasts who demand the best from their vehicles. This Advanced Clutch XT/Race Rigid 4 Pad Kit features an Xtreme pressure plate, tailored for those who push their cars to the limit. The exclusive diaphragm design of the pressure plate increases clamp load while minimizing deflection, which not only enhances clutch life but also ensures consistent performance under extreme conditions.

Every diaphragm undergoes a meticulous four-stage heat-treating process, resulting in unparalleled durability and reliability. The precision cover stampings contribute to the rigidity and consistency of the pressure plate, making it a trustworthy choice for serious drivers.

The 4-pad rigid race discs are crafted from high-quality ceramic friction materials, ensuring excellent heat tolerance and performance. The chrome-moly hub is heat-treated, providing both strength and durability. This lightweight and rigid design allows for quicker shifts, making your driving experience smoother and more enjoyable. While the engagement may feel harsher, the trade-off is faster shifting, ideal for those who crave responsiveness.

Customer Feedback

Many users have shared their satisfaction with the Z66-XTR4, noting its performance on the track. One customer mentioned, "The engagement is definitely aggressive, but the speed of shifting is just what I needed for my race days." Another user highlighted, "Installation was straightforward, and the difference in performance was noticeable right away!"

Features

• Moderate to heavy pedal effort with aggressive engagement
• Extended friction life due to ACT's unique diaphragm design
• Engineered for high performance with select ceramic materials
• Recommended for race use only
• 100% clamp load tested for reliability at high RPMs

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 12.3 lbs
• Torque Capacity: 430 ft/lbs
• Torque Capacity Over OE: 1.29

Fitment

The Z66-XTR4 is compatible with the following vehicles:

• Ford Probe (1993-1997)
• Mazda 626 (1993-2002)
• Mazda MX-6 (1993-1997)
• Mazda Protege (2001-2003)
• Mazda Protege5 (2002-2003)

Installation Instructions

For detailed installation instructions, please click here.
