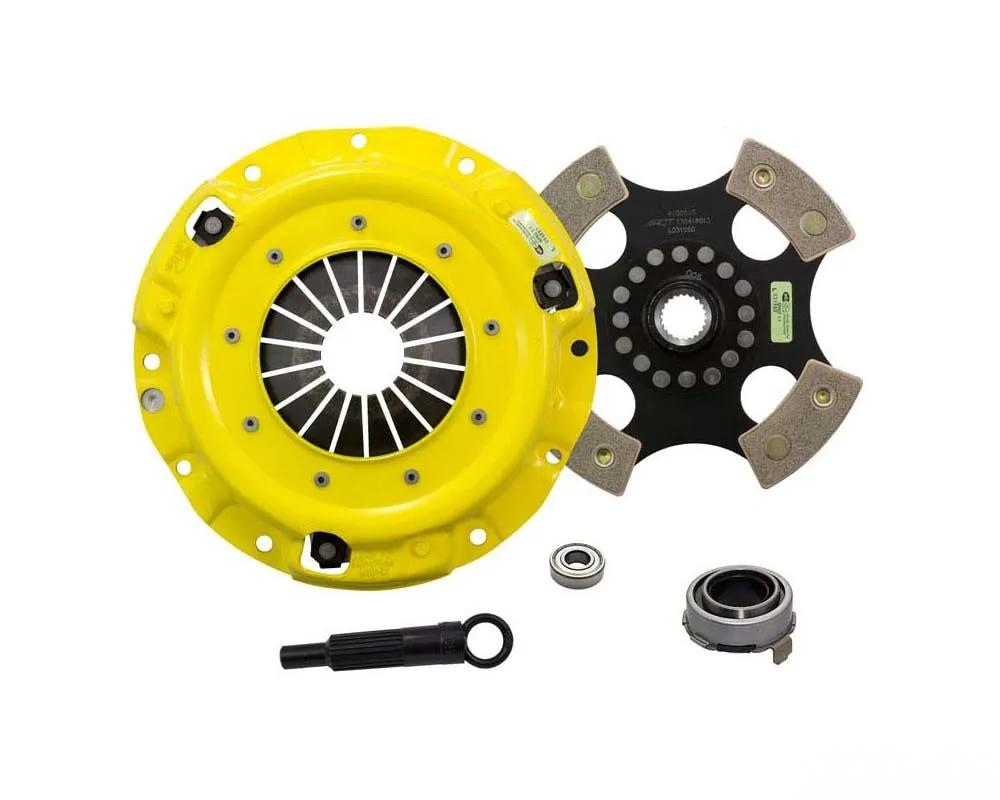

ACT ZM1-XTR4 Clutch Kit

Introducing the ACT ZM1-XTR4 Clutch Kit, designed for the serious driver who demands top-notch performance on the track. This kit features an advanced Xtreme pressure plate that’s built to handle the most intense driving conditions. The unique diaphragm design not only increases clamp load but also minimizes deflection, ensuring your clutch lasts longer under pressure.

Each diaphragm undergoes a meticulous four-stage heat-treating process, which enhances durability and performance. With precision cover stampings, the pressure plates provide the rigidity and consistency you need for high-speed gear changes.

Customer Feedback

“The ZM1-XTR4 has transformed my racing experience. The shifts are quicker, and I feel more connected to my car. Definitely recommend it for anyone serious about performance!” - John D.

“I was impressed by the quality of the materials. The ceramic friction discs hold up well under high heat, and the installation was straightforward. A solid choice for race enthusiasts.” - Sarah T.

Features & Benefits

• Moderate to heavy pedal effort for aggressive engagement and increased gear rattle.
• Moderate friction life, extended by ACT's exclusive diaphragm design, though the rigid design may increase spline wear.
• Carefully engineered and precisely assembled using select ceramic friction materials for high heat tolerance and maximum performance.
• Recommended for race use only, ensuring that you get the best performance when it matters most.
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 7.9 in (200 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Solid (Sprung)
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.4 lbs
• Torque Capacity: 350 ft/lbs (1.56 times over OE)

Notes

• Must be used with factory flywheel.

Fitment

Compatible with Mazda Miata models from 1990 to 1993.

Installation Instructions

For detailed installation instructions, CLICK HERE.
