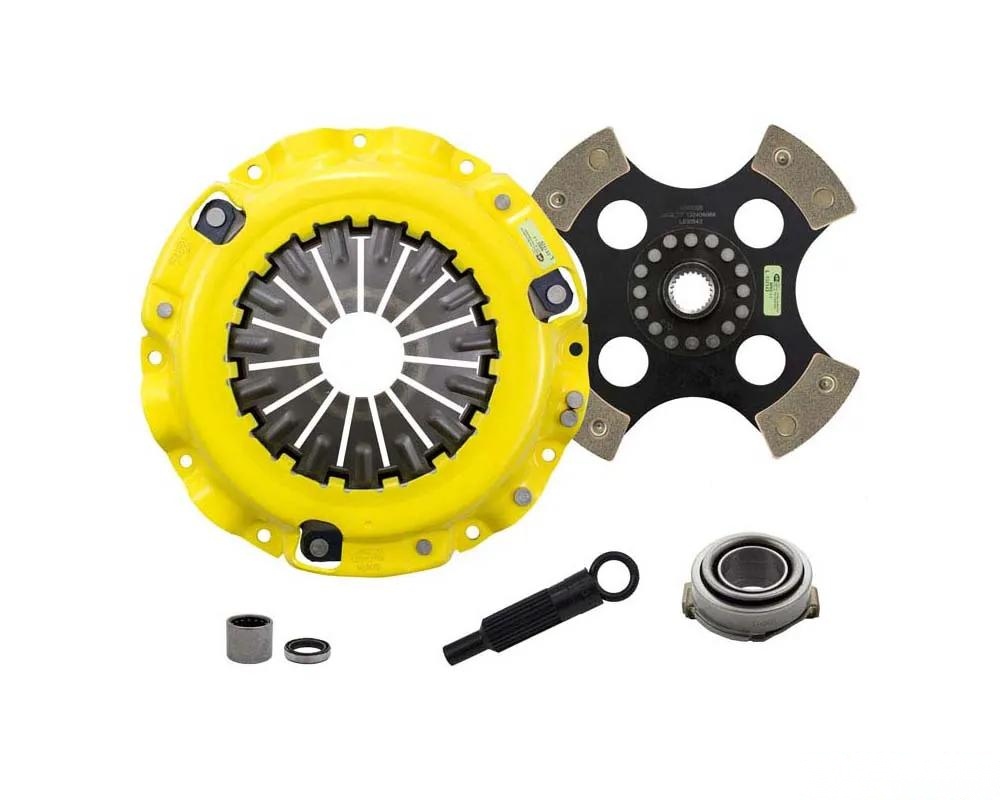

ACT Z65-XTR4 Advanced Clutch XT/Race Rigid 4 Pad Kit

For Mazda RX-7 owners from 1986 to 1992, the ACT Z65-XTR4 Advanced Clutch XT/Race Rigid 4 Pad Kit is engineered to meet the needs of serious drivers. This kit features an Xtreme pressure plate that’s built for performance, ensuring that you get the most out of your rotary engine. With an exclusive diaphragm design, this pressure plate increases clamp load, minimizes deflection, and extends clutch life, making it a solid choice for both street and track applications.

Performance Features

• Moderate to heavy pedal effort with aggressive engagement for a more connected driving experience.
• Engineered to withstand high RPMs, this clutch is 100% clamp load tested and dynamically balanced for reliability.
• Constructed from high-quality ceramic friction materials that tolerate extreme heat, ensuring maximum performance when you need it most.
• Designed for race use, the 4-pad rigid race disc offers quicker shifts and smooth operation, albeit with a harsher engagement feel.
• Lightweight and rigid, this setup allows for faster gear changes, perfect for those who push their RX-7 to the limits.

Technical Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Torque Capacity: 560 ft/lbs (1.3 times over OEM)
• Product Weight: 14.7 lbs
• Disc Material: Ceramic
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes

Installation Notes

• For detailed installation instructions, CLICK HERE.
• Note: Flywheel requires a counterweight (not included).

Customer Feedback

One Mazda RX-7 owner shared, "I installed the ACT Z65-XTR4 on my 1991 RX-7, and the difference was immediate. The shifts are crisp, and I can feel the power transfer through the drivetrain like never before. Definitely a must-have for anyone serious about performance!"

Upgrade your Mazda RX-7 with the ACT Z65-XTR4 kit and experience the difference that a high-performance clutch can make in your driving experience.
