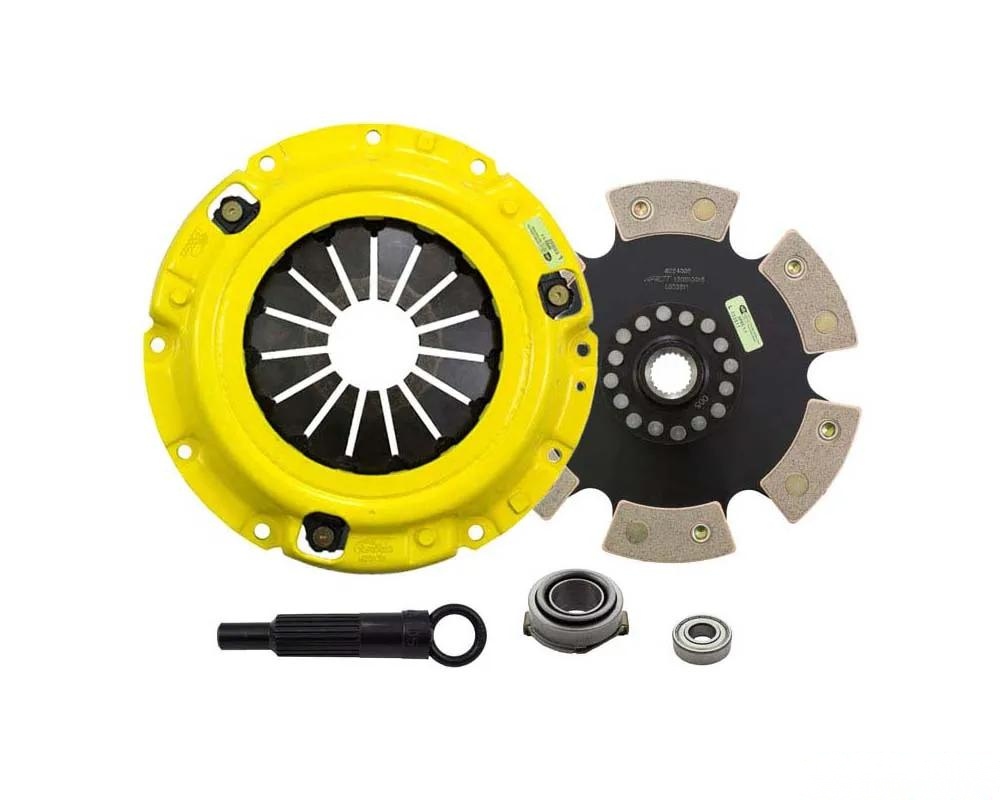

ACT FC2-XTR6 Clutch Kit

The ACT FC2-XTR6 is engineered for serious performance applications, featuring an Xtreme pressure plate designed to meet the demands of high-performance driving. This kit is ideal for those who push their vehicles to the limit, ensuring maximum durability and efficiency in clutch operation.

Key Features

• Xtreme pressure plate with an exclusive diaphragm design for increased clamp load and reduced deflection.
• Four-stage heat-treated diaphragms for enhanced performance and longevity.
• Precision cover stampings that provide rigidity and consistency under extreme conditions.
• 6-pad rigid race discs constructed from high-quality ceramic friction materials for superior heat resistance.
• Chrome-moly hub that is heat-treated for added strength and durability.

Performance Characteristics

The 6-pad design allows for quicker shifts and smoother operation, although engagement is more aggressive, resulting in increased gear rattle. This setup is recommended for larger clutch sizes, as it effectively absorbs more heat, making it suitable for race applications.

Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Torque Capacity: 450 ft/lbs (1.18 times over OEM)
• Product Weight: 13.6 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

This clutch kit is confirmed to fit the following application:

• Ford Ranger: 1983-1984
