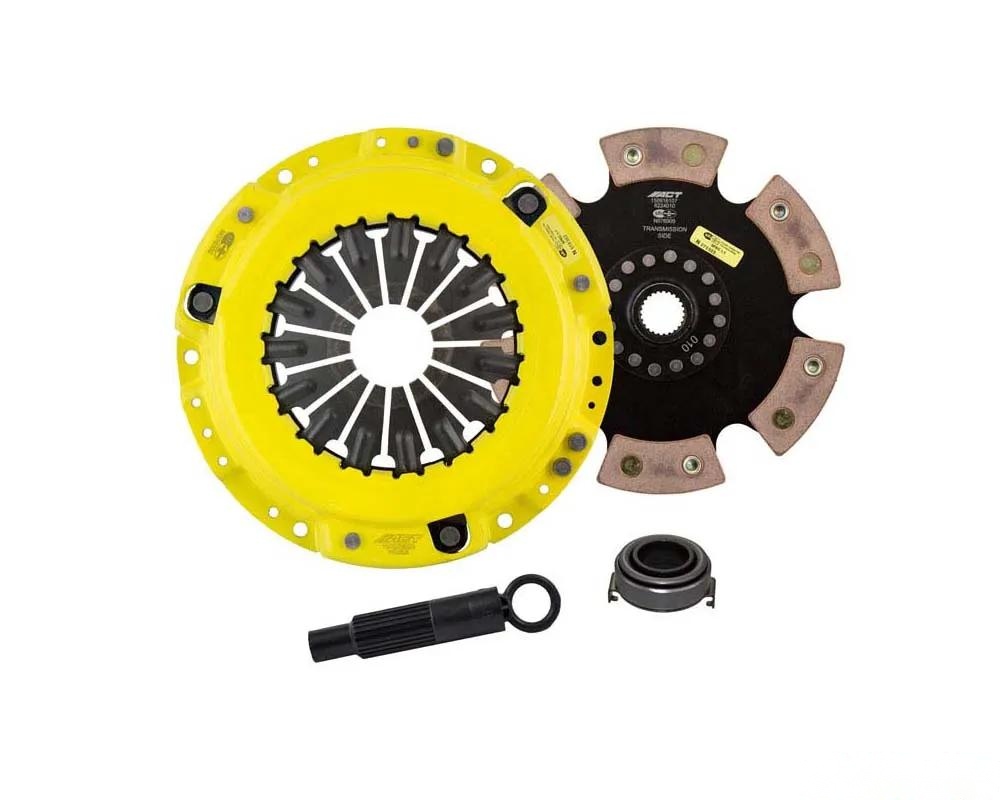

ACT HA3-XTR6 Clutch Kit

The ACT HA3-XTR6 is engineered for drivers who demand peak performance from their clutch system. This kit features an Xtreme pressure plate designed to deliver enhanced clamp load, reducing deflection and extending clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional durability and performance under pressure.

Key Features

• Moderate to heavy pedal effort, providing aggressive engagement with increased gear rattle.
• Utilizes select ceramic friction materials that withstand high temperatures, ensuring maximum performance.
• Designed specifically for race applications, with a rigid construction that may increase spline wear.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Torque Capacity: 490 ft/lbs (1.5 times over OE)
• Product Weight: 12.2 lbs
• Alignment Tool Included: Yes
• Release Bearing Included: Yes
• Grease Included: Yes

Installation Notes

For complete installation instructions, refer to the installation guide here.

Confirmed Fitment

• Acura CL 1997-1999
• Honda Accord 1990-2002
• Honda Prelude 1992-2001

The HA3-XTR6's 6-pad rigid race disc allows for rapid shifts, enhancing your driving experience on the track. Keep in mind that while engagement is harsher, the payoff is faster shifting and improved performance for serious racing applications.
