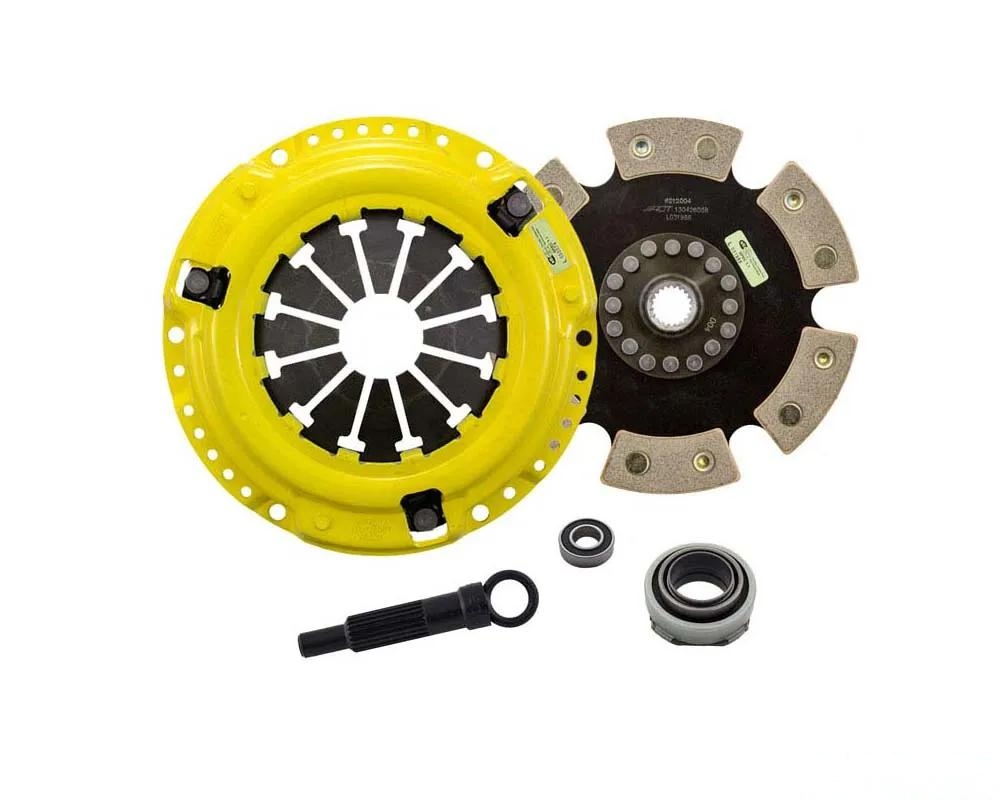

ACT HW4-XTR6 Clutch Kit

The ACT HW4-XTR6 Clutch Kit is engineered for serious performance, catering to the needs of demanding drivers. This kit features an Xtreme pressure plate designed with an exclusive diaphragm that optimizes clamp load while minimizing deflection. The result is enhanced clutch life and improved performance under high-stress conditions.

Key Features

• Constructed with high-quality ceramic friction materials for superior heat resistance.
• Lightweight, rigid design facilitates quicker shifts and smooth operation.
• 6-pad rigid race disc offers aggressive engagement, making it ideal for competitive racing environments.
• Precision cover stampings ensure rigidity and consistency, providing reliable performance.
• Each diaphragm undergoes a four-stage heat-treating process, ensuring durability and performance.

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 380 ft/lbs (1.48 times over OE)
• Product Weight: 10.4 lbs
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Installation Notes

The HW4-XTR6 requires a 90-01 SOHC flywheel for proper installation. For detailed installation instructions, click here.

Usage Recommendations

• Designed for moderate to heavy pedal effort with aggressive engagement.
• Recommended for race use only; not suitable for daily driving due to increased gear rattle and harsher engagement.

With its robust construction and performance-oriented design, the ACT HW4-XTR6 Clutch Kit is a solid choice for those looking to enhance their vehicle's performance on the track.
