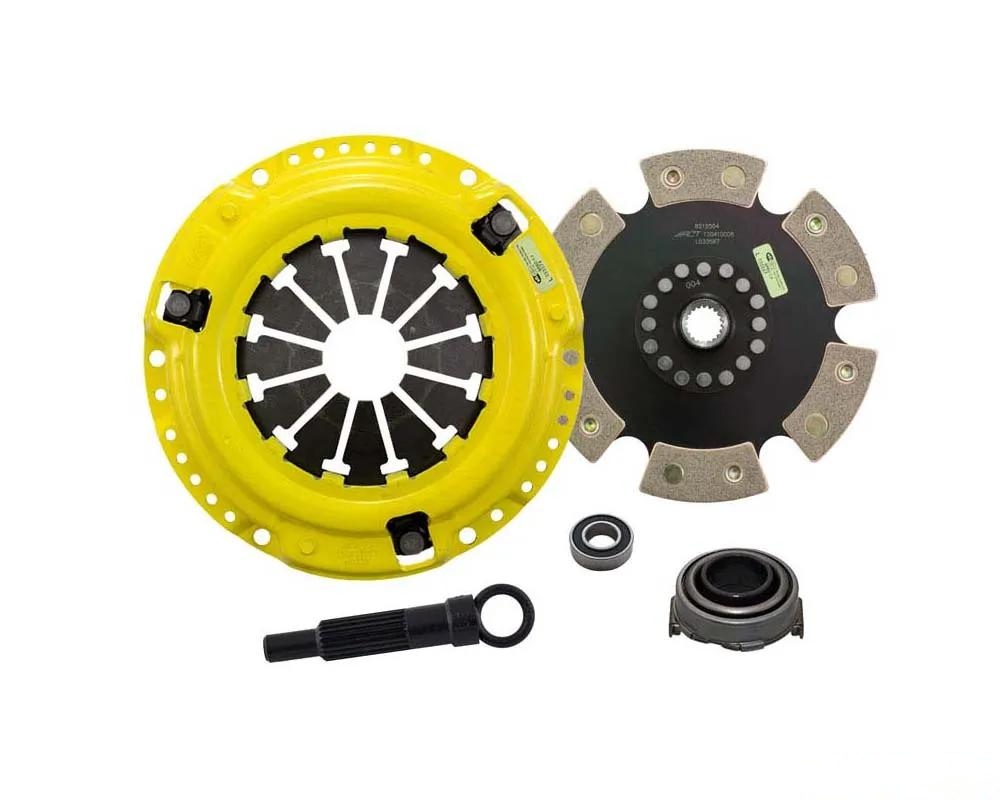

ACT HC5-XTR6 Clutch Kit

The ACT HC5-XTR6 is engineered for drivers seeking a robust solution for high-performance applications. Featuring an Xtreme pressure plate, this clutch kit is designed to handle the demands of spirited driving and competitive motorsport environments.

Key Features

• Xtreme pressure plate with exclusive diaphragm design increases clamp load and reduces deflection, enhancing clutch longevity.
• Four-stage heat treatment process applied to all diaphragms ensures superior performance under extreme conditions.
• Precision cover stampings provide rigidity and consistency, crucial for maintaining performance during high RPM operation.
• 6-pad rigid race discs utilize high-quality ceramic friction materials for exceptional heat tolerance and performance.
• Lightweight and rigid design facilitates quicker shifts, although engagement is harsher, resulting in faster shifting capabilities.

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 380 ft/lbs (1.33 times over OE)
• Product Weight: 10.4 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For comprehensive installation instructions, please refer to the following link: CLICK HERE.

Fitment

The ACT HC5-XTR6 is compatible with the following models:

• Acura EL (1997-2005)
• Honda Civic (1992-2005)
• Honda del Sol (1993-1997)

This clutch kit is recommended for race use only, providing moderate to heavy pedal effort and aggressive engagement. Be aware that the rigid design may increase spline wear over time. Ensure your setup is prepared for the demands of this high-performance clutch system.
