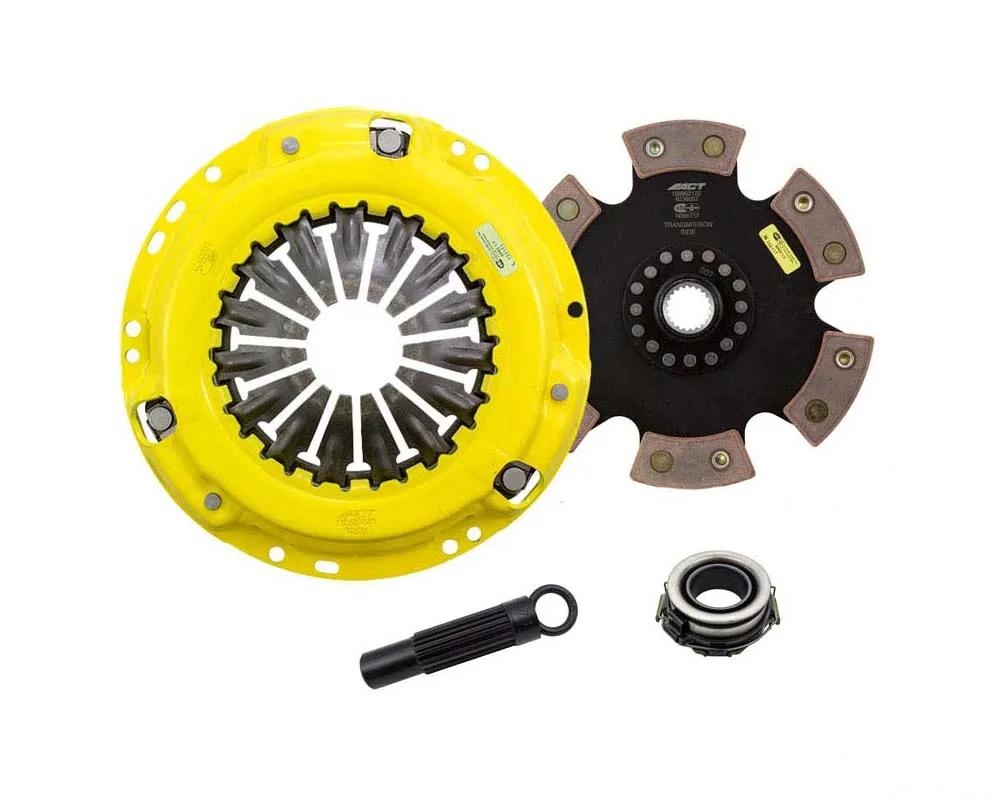

ACT TY3-XTR6 Advanced Clutch XT/Race Rigid 6 Pad Kit

For those who demand the utmost from their vehicles, the ACT TY3-XTR6 Advanced Clutch XT/Race Rigid 6 Pad Kit is engineered to meet your performance needs. This kit is equipped with an Xtreme pressure plate designed specifically for the most aggressive driving styles, perfect for those who push their cars to the limit on the track or the street.

Unmatched Performance

The Xtreme pressure plate features an exclusive diaphragm design that significantly increases clamp load while reducing deflection, ensuring maximum clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, providing unparalleled durability and performance. The precision cover stampings of the pressure plate add rigidity and consistency, making it a reliable choice for high-performance applications.

6-Pad Rigid Race Disc

The heart of this kit is the 6-pad rigid race disc, constructed from high-quality ceramic friction materials. The chrome-moly hub is heat-treated for enhanced strength and durability, allowing for quicker shifts and smoother operation. While the engagement is more aggressive, the design allows for faster shifting, making it ideal for larger clutch sizes that can handle the heat generated during intense driving.

Installation and Features

• Installation Instructions

• Moderate to heavy pedal effort with aggressive engagement.
• Designed for race use only, with increased gear rattle.
• Carefully engineered for high heat tolerance and maximum performance.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight: 13.5 lbs
• Torque Capacity: 645 ft/lbs (1.18 times over OE)

Fitment

This clutch kit is compatible with the following models:

• Lexus ES250 (1990-1991)
• Toyota Camry (1988-1991)
• Toyota Celica (1988-1989)
• Toyota Rav4 (1996-2000)

Customer Feedback

A Toyota Camry owner shared, "I installed the TY3-XTR6 kit on my 1991 Camry, and the difference is night and day. The shifts are crisp and precise, and I can really feel the added torque capacity during hard acceleration. Highly recommend for those looking to get serious about performance!"
