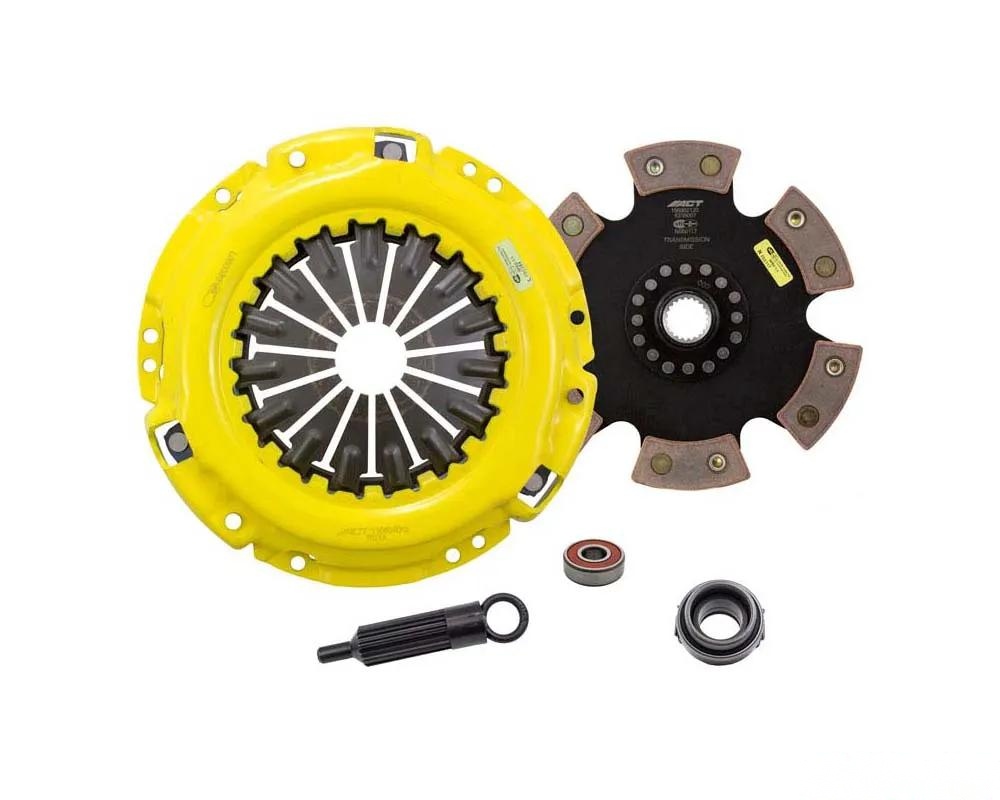

ACT TS5-XTR6 Clutch Kit

The ACT TS5-XTR6 is designed for the serious driver who demands high performance and reliability from their clutch system. This kit features an Xtreme pressure plate that utilizes a unique diaphragm design to enhance clamp load, minimize deflection, and extend the lifespan of the clutch. Each diaphragm undergoes a four-stage heat treatment process, ensuring exceptional durability and performance under extreme conditions.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, resulting in increased gear rattle.
• Engineered for moderate friction life, extended by ACT's exclusive diaphragm design, though the rigid setup may increase spline wear.
• Constructed with select ceramic friction materials for superior heat tolerance and maximum performance.
• Recommended strictly for race applications.
• 100% clamp load tested and dynamically balanced for reliable operation at high RPMs.

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Product Weight: 16 lbs
• Torque Capacity: 450 ft/lbs
• Torque Capacity Over OE: 1.07
• Pressure Plate Type: Xtreme
• Alignment Tool Included: Yes
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes

Installation Notes

• Must be used with OE dual-mass flywheel (not included).
• For detailed installation instructions, CLICK HERE.

Fitment

This clutch kit is confirmed to fit the Lexus IS300 (2001-2005).
