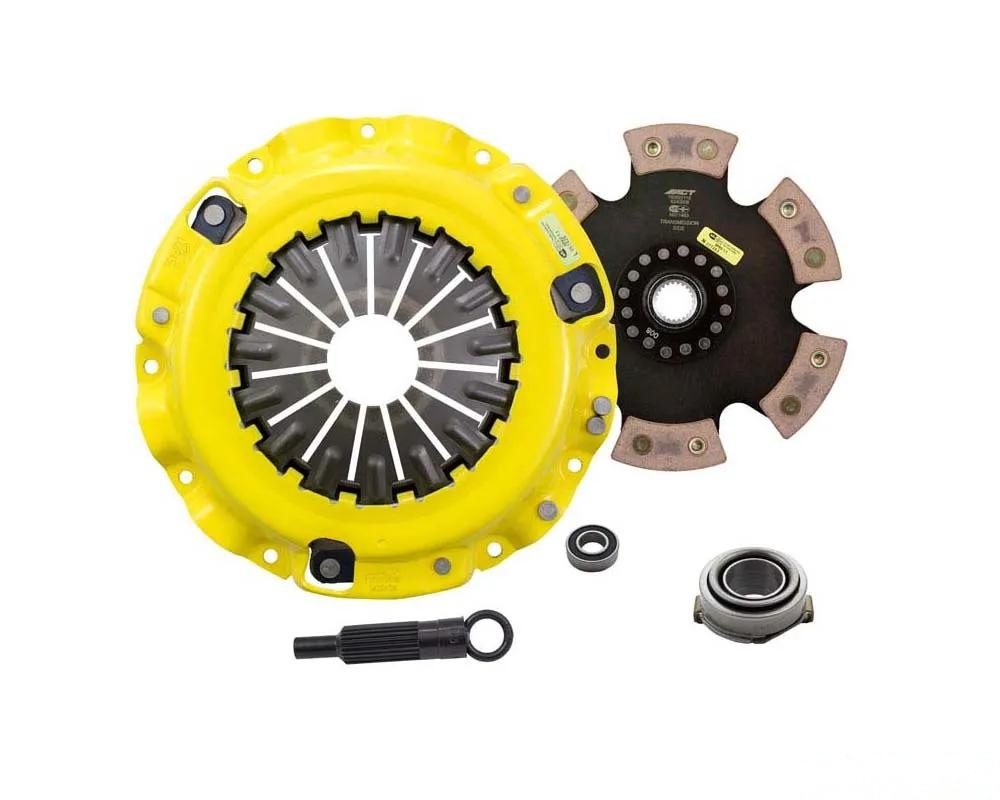

If you're looking to seriously up your game on the track, the ACT XT/Race Rigid 6 Pad Kit (model ZT2-XTR6) is worth your attention. This isn’t just another clutch kit; it’s built for those who demand a lot from their ride. With an Xtreme pressure plate designed specifically for hardcore driving, you're getting a setup that truly understands what it means to perform under pressure.

The secret sauce here is the exclusive diaphragm design that ACT uses. It ramps up the clamp load, cuts down on deflection, and ultimately extends the life of your clutch. Each diaphragm goes through a four-stage heat-treating process, which means you can trust it to handle the heat when you're pushing your limits. Plus, the precision cover stampings give it a solid feel, ensuring that everything stays consistent when you’re on the gas.

Now, let’s talk about the 6-pad rigid race discs. These bad boys are made from high-quality ceramic friction materials, and the chrome-moly hub is heat-treated for extra strength and durability. The lightweight design means you can shift quicker and enjoy a smoother experience overall. Just a heads up, though: the engagement can be a bit harsher, but that’s the trade-off for faster shifts. This setup is really meant for those who are running larger clutch sizes since it can handle more heat without breaking a sweat.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Expect moderate to heavy pedal effort with aggressive engagement and a bit of gear rattle.
• Frictions life is moderate but can be extended thanks to ACT's diaphragm design. Just know that the rigid design might wear the spline a bit faster.
• Carefully engineered and balanced, using select ceramic materials that can take the heat while delivering top-notch performance.
• This clutch kit is really for race use only, so keep that in mind if you're considering it for daily driving.
• It’s 100% clamp load tested and dynamically balanced to ensure smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in
• Clutch Disc Diameter: 240 mm
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight (lbs.): 15.2
• Torque Capacity (ft/lbs.): 560
• Torque Capacity Over OE: 1.3

Products Fitment:
Mazda B-Series 1987-1988 ZT2-XTR6 ACT XT/Race Rigid 6 Pad Kit.
