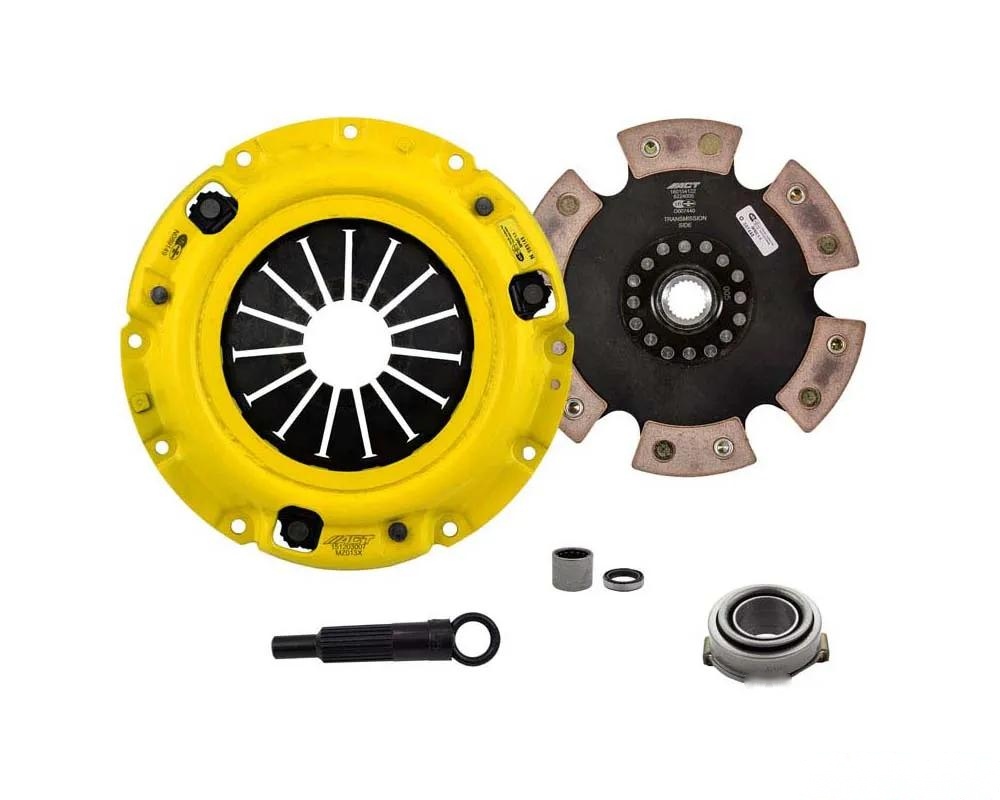

ACT ZX2-XTR6 Clutch Kit

The ACT ZX2-XTR6 is engineered for performance-driven applications, featuring an Xtreme pressure plate designed to meet the demands of serious drivers. This kit utilizes an exclusive diaphragm design that enhances clamp load, minimizes deflection, and maximizes the lifespan of the clutch.

Construction and Design

All diaphragms undergo a rigorous four-stage heat treatment process, ensuring exceptional performance under stress. The precision cover stampings of the ACT pressure plates contribute to their rigidity and consistency, making them suitable for high-performance environments.

6-Pad Rigid Race Disc

The ZX2-XTR6 includes a 6-pad rigid race disc constructed from high-quality ceramic friction materials. This design features a chrome-moly hub that is heat-treated for enhanced strength and durability. The lightweight and rigid structure allows for quicker shifts while maintaining smooth operation. Although engagement is harsher, the benefit is faster shifting, making this clutch ideal for those seeking maximum responsiveness.

Installation Notes

For detailed installation instructions, CLICK HERE.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, resulting in increased gear rattle.
• Moderate friction life, enhanced by ACT's proprietary diaphragm design; note that the rigid design may lead to increased spline wear.
• Engineered for race applications, this kit is carefully assembled and balanced for high RPM reliability.
• 100% clamp load tested to ensure consistent performance under extreme conditions.

Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Product Weight: 13.6 lbs
• Torque Capacity: 450 ft/lbs (1.18 times over OE)
• Grease Included: Yes
• Alignment Tool Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes

Fitment

This clutch kit is confirmed to fit the Mazda RX-7 from 1983 to 1992. Ensure compatibility before installation.
