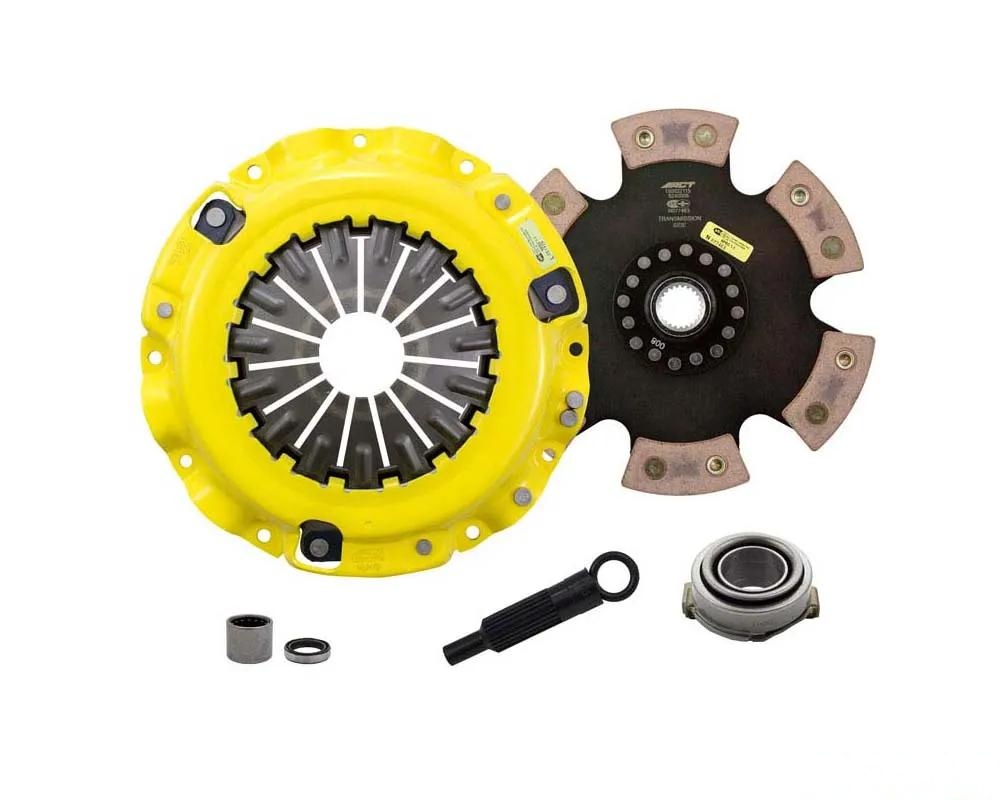

ACT Z65-XTR6 Clutch Kit: Performance for Your Mazda RX-7 (1986-1992)

If you're a proud owner of a 1986-1992 Mazda RX-7, the ACT Z65-XTR6 Clutch Kit is engineered to elevate your driving experience, especially if you're pushing your car to its limits on the track or during spirited drives. This kit features an Xtreme pressure plate designed for the most demanding drivers, ensuring that your clutch can handle the heat of high-performance scenarios.

Why Choose the Z65-XTR6?

The Z65-XTR6 is built around an exclusive diaphragm design that increases clamp load while reducing deflection, leading to enhanced clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, guaranteeing durability and performance under pressure. The precision cover stampings provide the rigidity necessary for consistent performance, making this kit a reliable choice for serious enthusiasts.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, perfect for race applications.
• Engineered with high-quality ceramic friction materials for exceptional heat tolerance.
• Lightweight, rigid design allows for quicker shifts and smooth operation.
• 100% clamp load tested and dynamically computer balanced for high RPM reliability.
• Recommended for race use only; engagement may feel harsher, but shifts are faster.

Technical Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Torque Capacity: 560 ft/lbs (1.3 times over OE)
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Disc Material: Ceramic
• Product Weight: 15.2 lbs
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes

Installation Instructions

Ready to install? For detailed installation instructions, CLICK HERE.

Important Notes

• Flywheel requires a counterweight (not included).

Customer Feedback

One RX-7 owner shared, "I installed the Z65-XTR6 in my 1991 RX-7, and the difference was night and day. The shifts are noticeably quicker, and I have complete confidence in the clutch during track days. It handles the heat like a champ!"

Upgrade your RX-7 with the ACT Z65-XTR6 Clutch Kit and experience the performance benefits that come with a meticulously engineered product designed for serious drivers.
