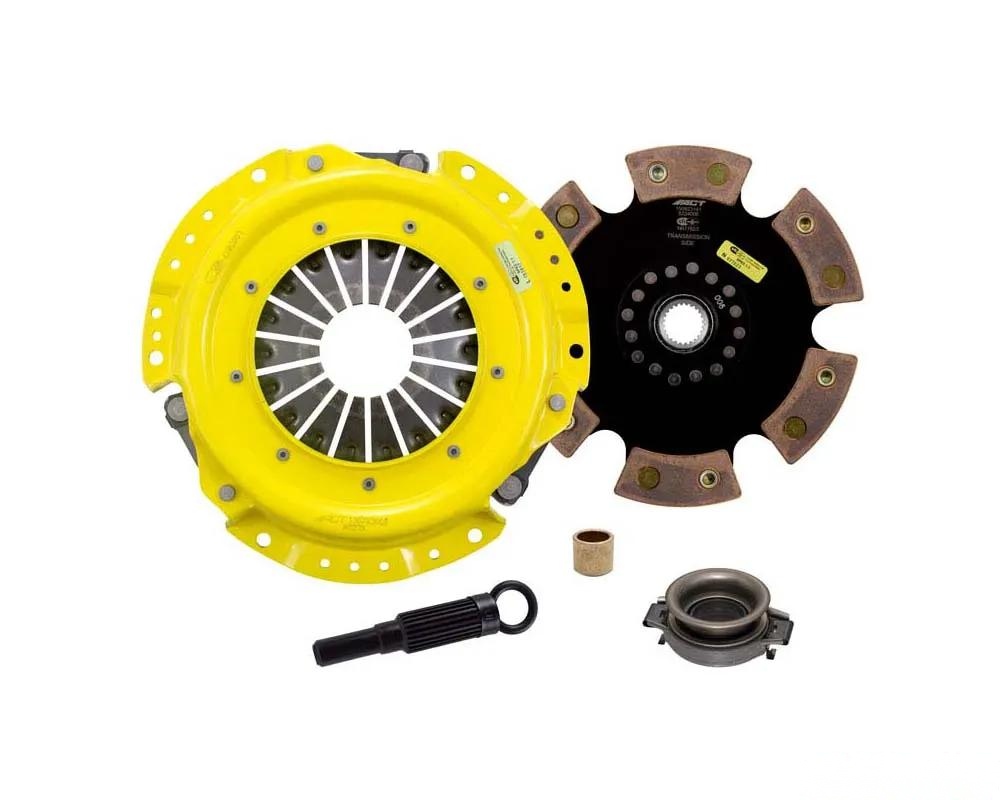

If you're serious about pushing your ride to its limits, the Advanced Clutch XT/Race Rigid 6 Pad Kit NA1-XTR6 is where it’s at. This kit is built for those who demand nothing less than perfection from their gear. The standout feature here is the Xtreme pressure plate, designed specifically for heavy-duty performance. You won’t find a lot of fluff in the design; this kit is all about function. The exclusive diaphragm design cranks up the clamp load, cuts down on deflection, and helps your clutch last longer—pretty much a game changer for anyone who’s serious about racing.

Now, let’s talk durability. Each diaphragm goes through a four-stage heat-treating process, which means you’re getting a product that’s been put through the wringer and comes out ready to take on whatever you throw at it. The precision cover stampings on the pressure plates ensure they’re rigid and consistent, which is essential when you’re hitting those high RPMs.

The 6-pad rigid race discs are made from top-notch ceramic friction materials, so you know they can handle the heat. The chrome-moly hub is heat-treated too, giving you that extra strength and durability you need. The lightweight design means you’ll enjoy quicker shifts, and while the engagement can be a bit harsher, it’s all about that faster shifting experience. Just a heads up, this setup is better suited for larger clutch sizes since it can absorb more heat—perfect for those intense race days.

Install Instructions:

• For Instructions CLICK HERE

Features:

• Moderate to heavy pedal effort with aggressive engagement—get ready for some gear rattle!
• Moderate friction life, but thanks to ACT's diaphragm design, you can extend it a bit; just be aware that the rigid setup might wear out your spline faster.
• Carefully engineered and precisely assembled, using select ceramic friction materials that can handle high heat for maximum performance.
• This kit is recommended for race use only—don’t expect it to be a daily driver setup.
• Every component is 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.8 in (224 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Product Weight: 13.5 lbs
• Torque Capacity: 475 ft/lbs (1.68 over OE)

Products Fitment:
Nissan Stanza 1990-1992 NA1-XTR6 ACT XT/Race Rigid 6 Pad Kit.
