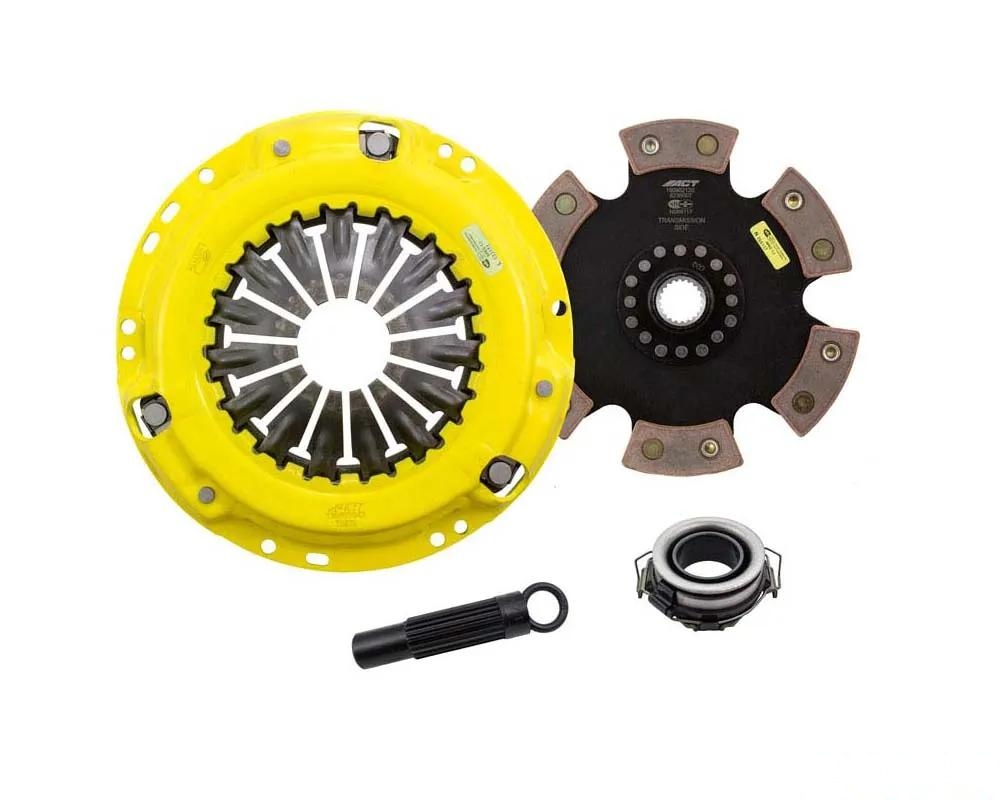

ACT TC4-XTR6 Clutch Kit

The ACT TC4-XTR6 is engineered for the serious driver who demands performance and reliability from their clutch system. This kit features an Xtreme pressure plate designed to handle the rigors of high-performance driving. The unique diaphragm design enhances clamp load, minimizes deflection, and optimizes the lifespan of the clutch, making it a top choice for competitive applications.

Key Features

• Moderate to heavy pedal effort with aggressive engagement and increased gear rattle for a race-ready feel.
• Utilizes select ceramic friction materials for high heat tolerance, ensuring maximum performance under stress.
• Precision-engineered and dynamically balanced for smooth operation at high RPMs.
• Recommended for race use only, with a design that may increase spline wear due to its rigid nature.
• 100% clamp load tested for reliability and performance consistency.

Specifications

• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Product Weight: 13.5 lbs
• Torque Capacity: 645 ft/lbs (1.18 times over OE)
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes
• Flywheel Included: No
• Pilot Bushing Included: No
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Pressure Plate Bolts Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No

Installation Notes

For detailed installation instructions, CLICK HERE.

Fitment

This clutch kit is confirmed to fit the Toyota Celica models from 1989 to 1993. Ensure compatibility with your specific vehicle before installation.
