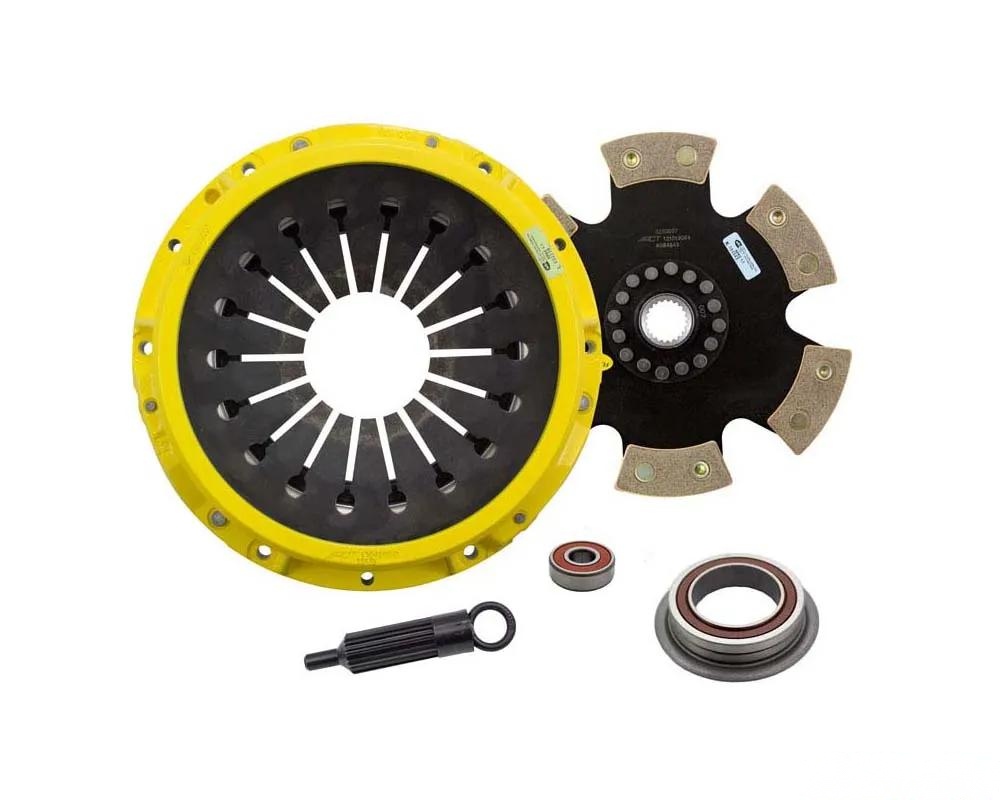

ACT TS2-XTR6 Clutch Kit

The ACT TS2-XTR6 is engineered for serious performance enthusiasts who demand superior clutch response and reliability. This kit features an Xtreme pressure plate, designed specifically for high-performance applications. The exclusive diaphragm design increases clamp load while minimizing deflection, ensuring maximum clutch life under extreme conditions.

Construction and Materials

ACT’s pressure plates undergo a rigorous four-stage heat-treating process, enhancing their durability and performance. Precision cover stampings contribute to the rigidity and consistency of the pressure plate, providing a solid foundation for high-torque applications. The 6-pad rigid race disc is constructed from high-quality ceramic friction materials, which are known for their exceptional heat tolerance and performance under stress. The chrome-moly hub is also heat-treated, offering strength and longevity.

Performance Characteristics

• Moderate to heavy pedal effort with aggressive engagement, resulting in increased gear rattle.
• Moderate friction life, extended through ACT’s advanced diaphragm design, though be aware that the rigid construction may lead to increased spline wear.
• Recommended for race use only, making it ideal for dedicated track applications.
• Each unit is 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Torque Capacity: 630 ft/lbs (1.09 times over OE)
• Product Weight: 20.9 lbs
• Alignment Tool Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes
• Release Bearing Included: Yes

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

The ACT TS2-XTR6 is compatible with the Toyota Supra models from 1986 to 1992, making it an excellent choice for those looking to enhance their vehicle's performance on the track.
