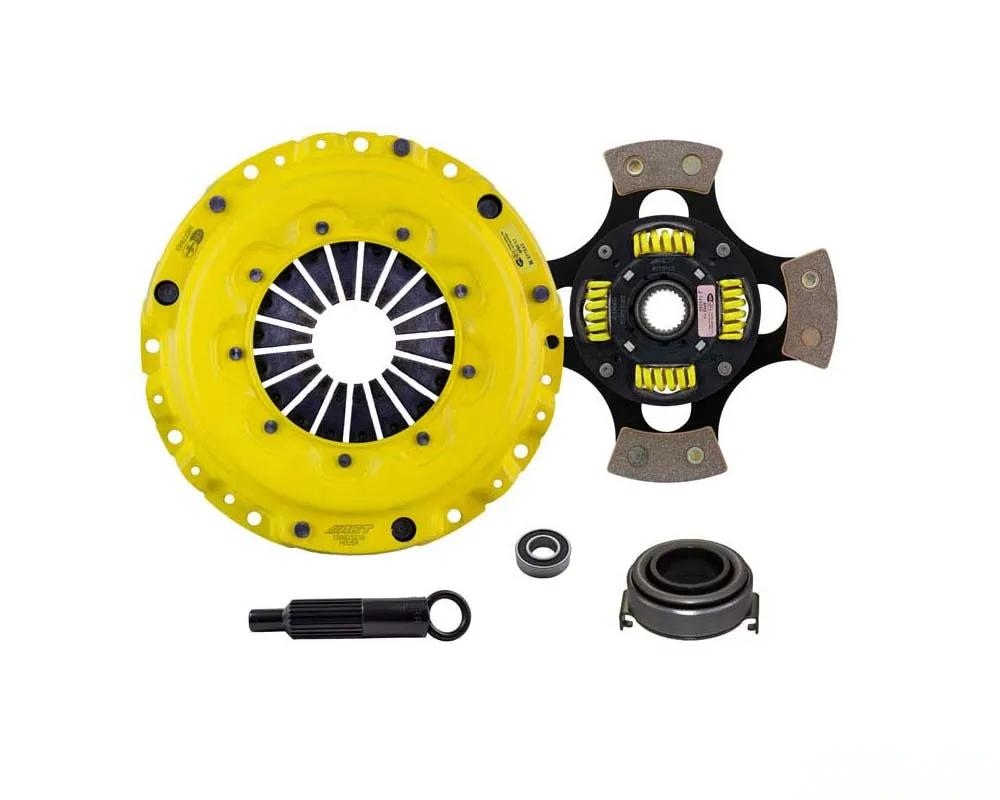

ACT AI4-XTG4 Clutch Kit

The ACT AI4-XTG4 is engineered for the driver who demands exceptional performance from their clutch system. This kit features an Xtreme pressure plate designed to enhance clamp load while minimizing deflection, ultimately extending the lifespan of your clutch. The unique diaphragm design undergoes a rigorous four-stage heat-treating process, ensuring durability and reliability under high-stress conditions.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, resulting in mild gear rattle.
• Moderate friction life, enhanced by ACT's exclusive diaphragm technology.
• Constructed with select ceramic friction materials for superior heat tolerance and performance.
• Ideal for high horsepower applications, whether on the street or the track.
• Each unit is 100% clamp load tested and dynamically computer balanced for smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 8.7 in (220 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Torque Capacity: 410 ft/lbs (1.2 times over OE)
• Product Weight: 12.8 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, CLICK HERE.

Confirmed Fitment

• Acura Integra (1994-2001)
• Honda Civic (1999-2000)
• Honda CR-V (1998-2001)
• Honda del Sol (1994-1997)
