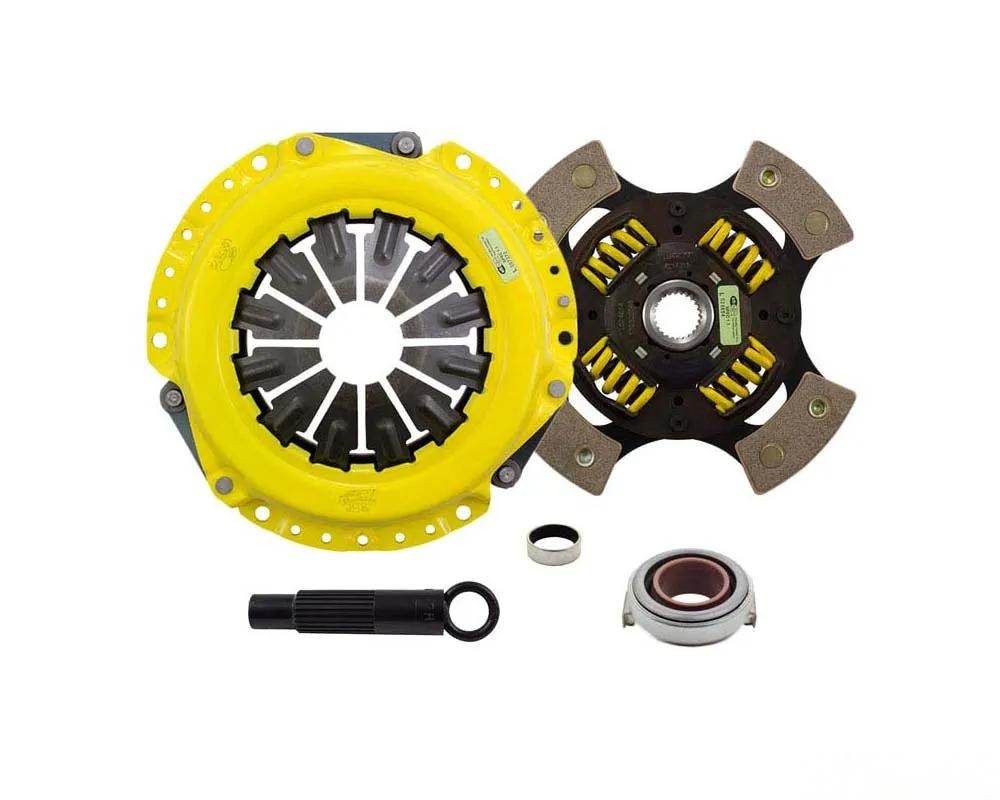

ACT AR1-XTG4 Clutch Kit

The ACT AR1-XTG4 is designed for the serious driver who demands performance and reliability. This advanced clutch kit features an Xtreme pressure plate that is engineered to handle the toughest driving conditions. With its unique diaphragm design, the AR1-XTG4 increases clamp load, minimizes deflection, and extends clutch life, making it an excellent choice for both street and race applications.

One of the standout features of this kit is its four-stage heat-treating process applied to all diaphragms, ensuring top-notch performance under pressure. Customers have noted that the precision cover stampings provide a level of rigidity and consistency that is hard to find in other products. As one user mentioned, "The engagement is aggressive but predictable, and I can feel the difference in my shifts – they’re quicker and more responsive."

The 4-pad spring-centered race disc is another highlight. Its spring-center construction effectively dampens torsional vibrations, leading to a quieter operation, even in demanding situations. Users have praised the durability of this design, stating, "I've pushed my car hard at the track, and the clutch held up beautifully, no signs of wear!"

Key Features:

• Moderate to heavy pedal effort with aggressive engagement.
• Moderate friction life enhanced by ACT's exclusive diaphragm design.
• Engineered for high horsepower street or race use.
• 100% clamp load tested for smooth, high RPM reliability.

Specifications:

• Clutch Master Cylinder: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 8.4 in (214 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1.03125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Product Weight: 11.3 lbs
• Torque Capacity: 435 ft/lbs
• Torque Capacity Over OE: 1.28

Vehicle Fitment:

This kit is compatible with:

• Acura RSX (2002-2006)
• Acura TSX (2004-2008)
• Honda Civic (2002-2011)

For detailed installation instructions, CLICK HERE.
