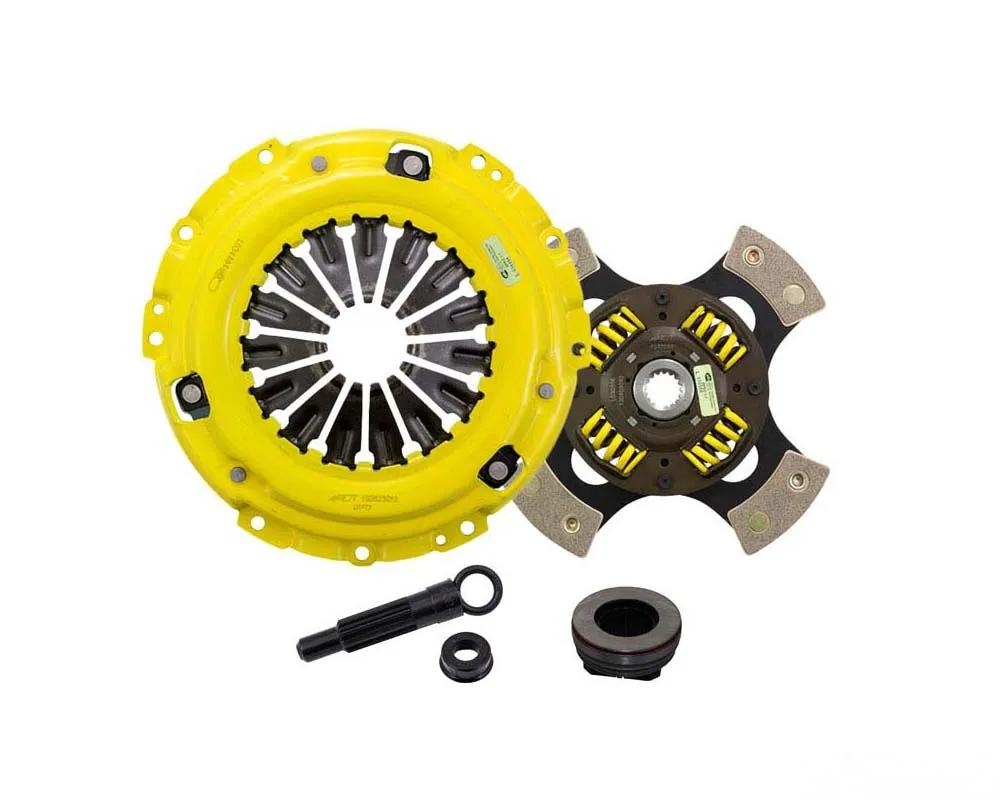

ACT DN3-XTG4 Advanced Clutch XT/Race Sprung 4 Pad Kit

The ACT DN3-XTG4 Advanced Clutch XT/Race Sprung 4 Pad Kit is engineered specifically for high-performance driving, making it an ideal choice for those who push their vehicles to the limit. This kit features an Xtreme pressure plate designed to handle increased demands while maximizing clutch life through its innovative diaphragm design.

Key Features

• Xtreme pressure plate that increases clamp load, reduces deflection, and extends clutch longevity.
• Four-stage heat-treated diaphragm for enhanced durability and performance.
• Precision cover stampings ensure rigidity and consistency under stress.
• 4-pad spring-centered race disc that dampens torsional vibrations for quieter operation.
• Robust spring retainers with wraparound spring windows to minimize stress concentrations.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Torque Capacity: 695 ft/lbs (1.2 times over OE)
• Product Weight: 15.2 lbs
• Moderate to heavy pedal effort with aggressive engagement

Installation Notes

• This kit requires an ACT flywheel (not included) and is designed to replace a modular clutch.
• Pressure plate bolts are included (M8-1.25 x 16mm).
• Grease and an alignment tool are included for a straightforward installation process.

Fitment

Confirmed fitment for the Dodge Neon (2000-2005).
