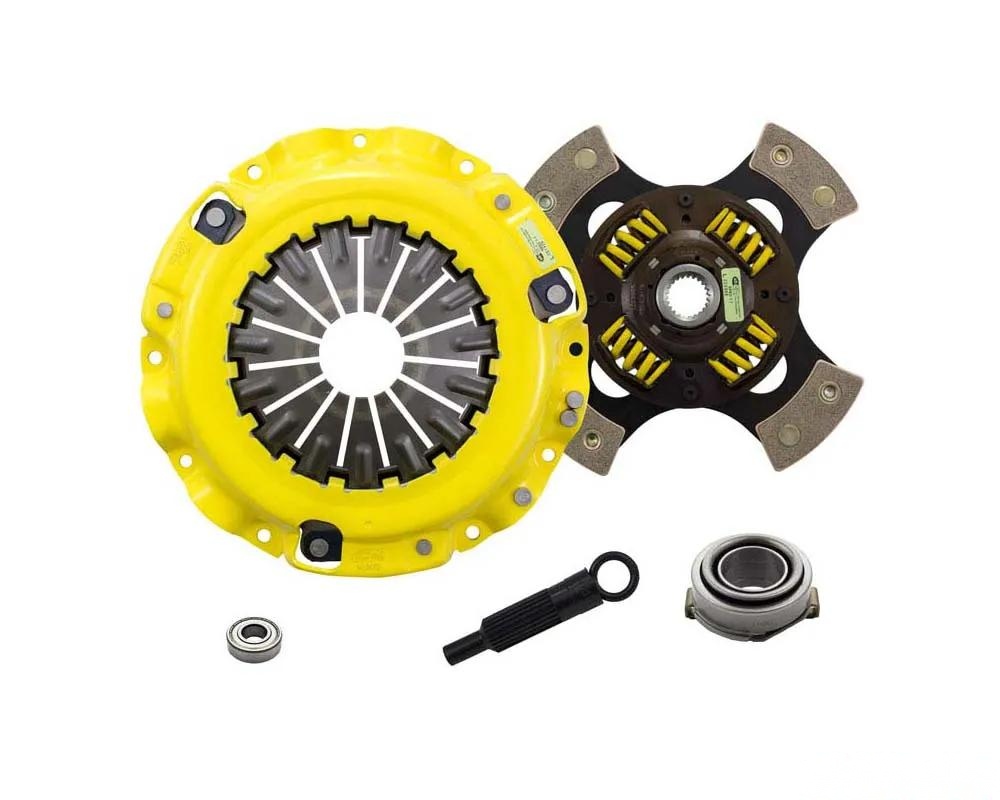

ACT Z64-XTG4 Advanced Clutch XT/Race Sprung 4 Pad Kit

If you're looking to enhance the performance of your 1989-1992 Ford Probe, 1988-1991 Mazda 626, or 1988-1992 Mazda MX-6, the ACT Z64-XTG4 is a clutch kit that delivers serious power and precision. This kit is designed for the most demanding drivers who want to push their vehicles to the limit, whether on the street or the track.

Why Choose the Z64-XTG4?

The Z64-XTG4 features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring unparalleled performance under extreme conditions. With precision cover stampings, this pressure plate offers rigidity and consistency that you can rely on.

At the heart of this kit is ACT's 4-pad spring-centered race disc. This design not only dampens torsional vibrations for a quieter operation but also resists failure even in the harshest environments. The engagement may feel harsher, but it allows for faster shifting, making it perfect for spirited driving or competitive racing.

Installation and Features

Ready to install? For detailed installation instructions, CLICK HERE.

• Moderate to heavy pedal effort with aggressive engagement
• Extended friction life thanks to ACT's exclusive diaphragm design
• Precision-engineered with select ceramic friction materials for high heat tolerance
• Ideal for high horsepower street or race applications
• 100% clamp load tested and dynamically balanced for smooth high RPM performance

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16 lbs
• Torque Capacity: 560 ft/lbs (1.3 times OE)

Customer Feedback

Ford Probe owners have reported that after installing the Z64-XTG4, they noticed a significant improvement in shifting speed and overall responsiveness. One user mentioned, "The engagement is much more aggressive, but it makes my shifts feel instantaneous, especially during spirited driving." Mazda 626 drivers have echoed similar sentiments, noting that it holds up even under high RPMs without any signs of slippage.

Upgrade your clutch system with the ACT Z64-XTG4 and experience the difference in performance and reliability that true enthusiasts demand.
