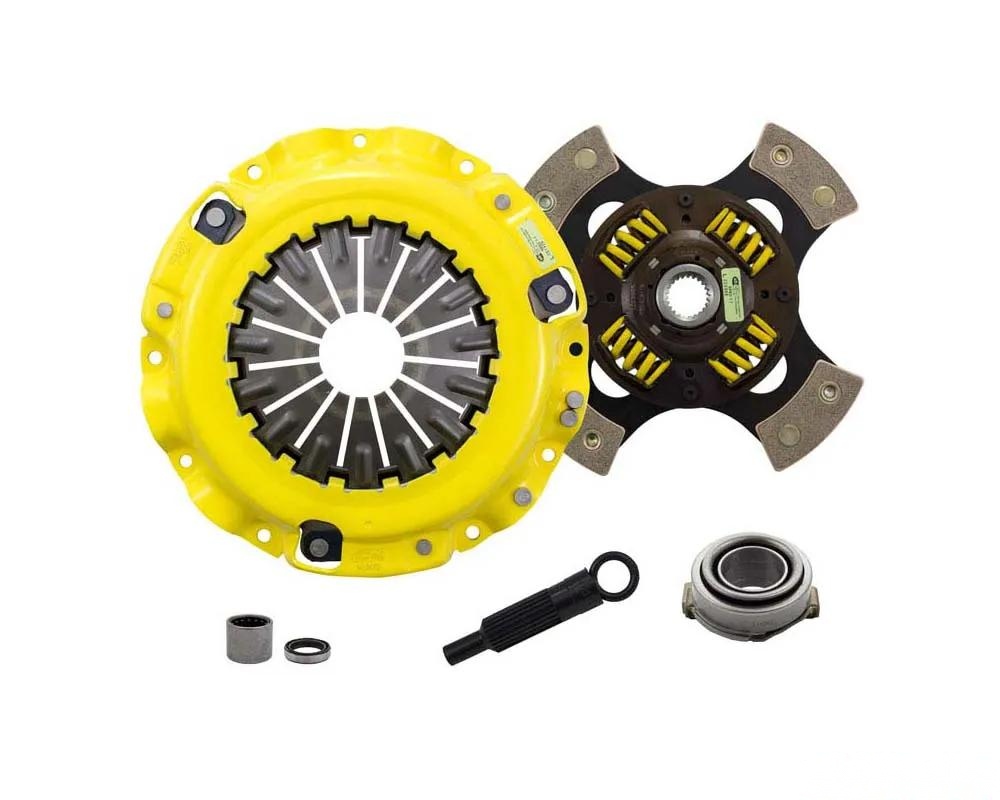

ACT Advanced Clutch XT/Race Sprung 4 Pad Kit Z65-XTG4

If you’re looking to maximize the performance of your 1986-1992 Mazda RX-7, the ACT Z65-XTG4 is your go-to clutch kit. Designed specifically for the most demanding drivers, this kit features an Xtreme pressure plate that elevates your driving experience, whether you're on the street or the track.

Why Choose the Z65-XTG4?

The heart of this kit is the exclusive diaphragm design of the ACT Xtreme pressure plate. This innovation increases clamp load while reducing deflection, which ultimately extends the life of your clutch. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring it can handle the heat and stress of high-performance driving.

With the 4-pad spring-centered race disc, you get a clutch that’s not only robust but also effective in dampening torsional vibrations. This means quieter operation and enhanced reliability, even under extreme conditions. The spring retainers are engineered with wraparound spring windows and thicker stampings to provide extra support, reducing stress and increasing durability.

Installation and Features

Installing the Z65-XTG4 is straightforward for those familiar with clutch swaps. For detailed installation instructions, CLICK HERE.

• Moderate to heavy pedal effort with aggressive engagement
• Designed for moderate friction life, enhanced by ACT's diaphragm technology
• Constructed with select ceramic friction materials for high heat tolerance
• Ideal for high horsepower street or race applications
• 100% clamp load tested and dynamically balanced for smooth high RPM operation

Technical Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Product Weight: 16 lbs.
• Torque Capacity: 560 ft/lbs. (1.3 times over OE)
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes
• Alignment Tool Included: Yes

Important Notes

• Flywheel requires counterweight (not included).

Customer Feedback

RX-7 owners have noted that after installing the Z65-XTG4, they experienced quicker shifts and a more responsive throttle. One owner remarked, “The engagement is definitely harsher, but the improved shifting speed is worth it!” This clutch kit is a proven upgrade for those who demand more from their vehicle.

Fitment

This clutch kit is confirmed to fit:

• Mazda RX-7 (1986-1992)
