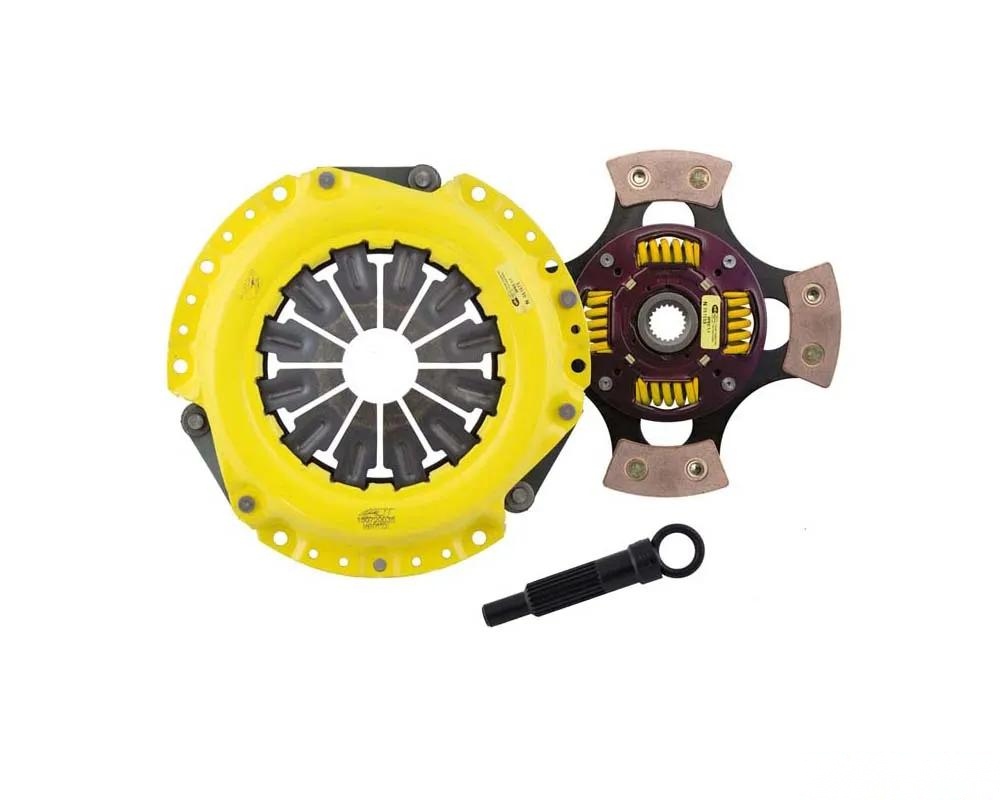

ACT MB8-XTG4 Clutch Kit

The ACT MB8-XTG4 is designed for drivers who demand exceptional performance from their clutch system. This kit features an Xtreme pressure plate that employs an exclusive diaphragm design, enhancing clamp load while minimizing deflection. This results in improved clutch life, making it ideal for both spirited driving and competitive applications.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, leading to a more direct connection to the drivetrain.
• Engineered for moderate friction life, extended by ACT's unique diaphragm design.
• Constructed with select ceramic friction materials, providing high heat tolerance and maximum performance in demanding conditions.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.
• Recommended for high horsepower street or race applications.

Specifications

• Clutch Disc Diameter: 8.4 in (214 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 420 ft/lbs (1.49 times over OE)
• Product Weight: 10.5 lbs
• Pressure Plate Type: Xtreme
• Alignment Tool Included: Yes
• Grease Included: Yes

Install Notes

For detailed installation instructions, refer to the installation guide here.

Fitment

The ACT MB8-XTG4 is confirmed to fit the Mitsubishi Lancer models from 2002 to 2007. Ensure compatibility with your specific model before purchase.
