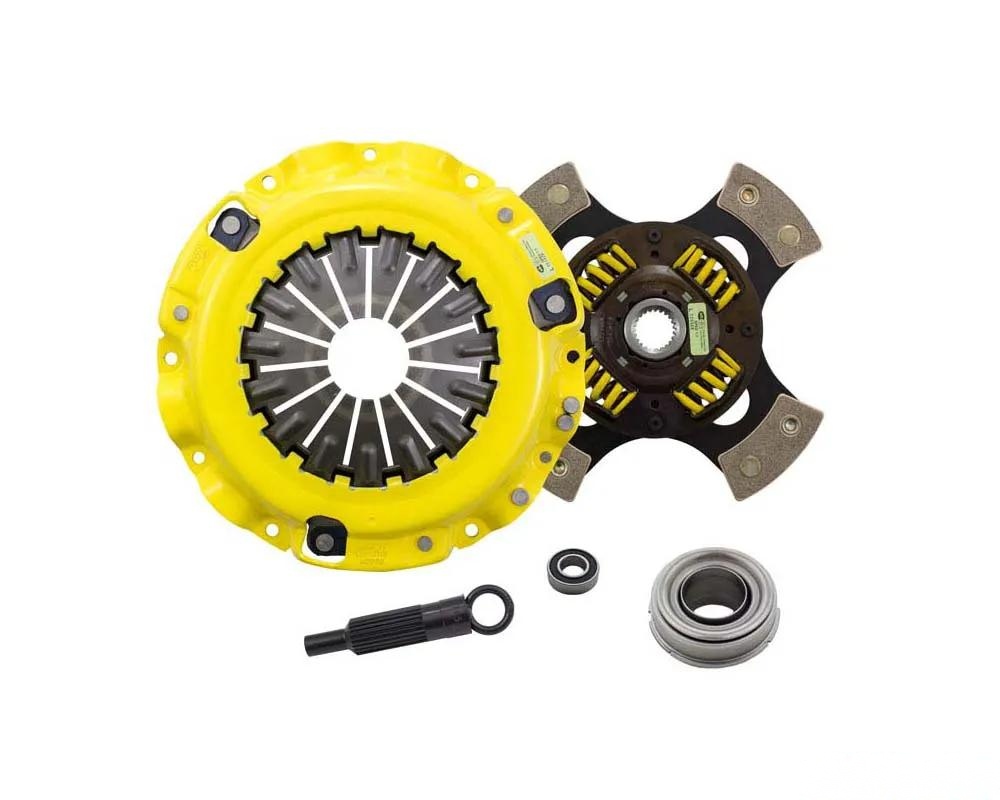

ACT MS1-XTG4 Clutch Kit

The ACT MS1-XTG4 is designed for the serious driver who demands performance and reliability. This clutch kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design, delivering increased clamp load and reduced deflection. This means you get a longer-lasting clutch that can handle the most intense driving conditions. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring top-notch performance.

One of the standout features of the MS1-XTG4 is its 4-pad spring-centered race disc. This unique construction not only dampens torsional vibrations for a quieter operation but also stands up to harsh conditions without failing. Customers have noted that while the engagement might be harsher, they appreciate the faster shifting response that comes with it.

Moreover, the robust spring retainers are designed with wraparound spring windows and thicker stampings, providing added support and reliability. This clutch kit is particularly well-suited for smaller disc sizes in smaller engines, making it a versatile choice for high-performance street or race applications.

Customer Feedback

"I installed the MS1-XTG4 in my Mitsubishi Starion, and the difference is night and day. The engagement is aggressive, but the shifting is so much quicker. Highly recommend for anyone looking to upgrade their clutch!" - Mike T.

"This clutch kit has made my driving experience so much better. The pedal effort is noticeable, but it’s worth it for the performance boost. Definitely a solid investment!" - Sarah L.

Features:

• Moderate to heavy pedal effort with aggressive engagement.
• Engineered for moderate friction life, extended by the exclusive diaphragm design.
• Precision assembly and balancing using select ceramic friction materials for high heat tolerance.
• Ideal for high horsepower street or race applications.
• 100% clamp load tested and dynamically balanced for reliable high RPM performance.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 16 lbs
• Torque Capacity: 565 ft/lbs
• Torque Capacity Over OE: 1.3

Fitment:

This clutch kit is compatible with:

• Chrysler Conquest (1987-1989)
• Mitsubishi Starion (1987-1989)

Installation Instructions:

For detailed installation instructions, CLICK HERE.
