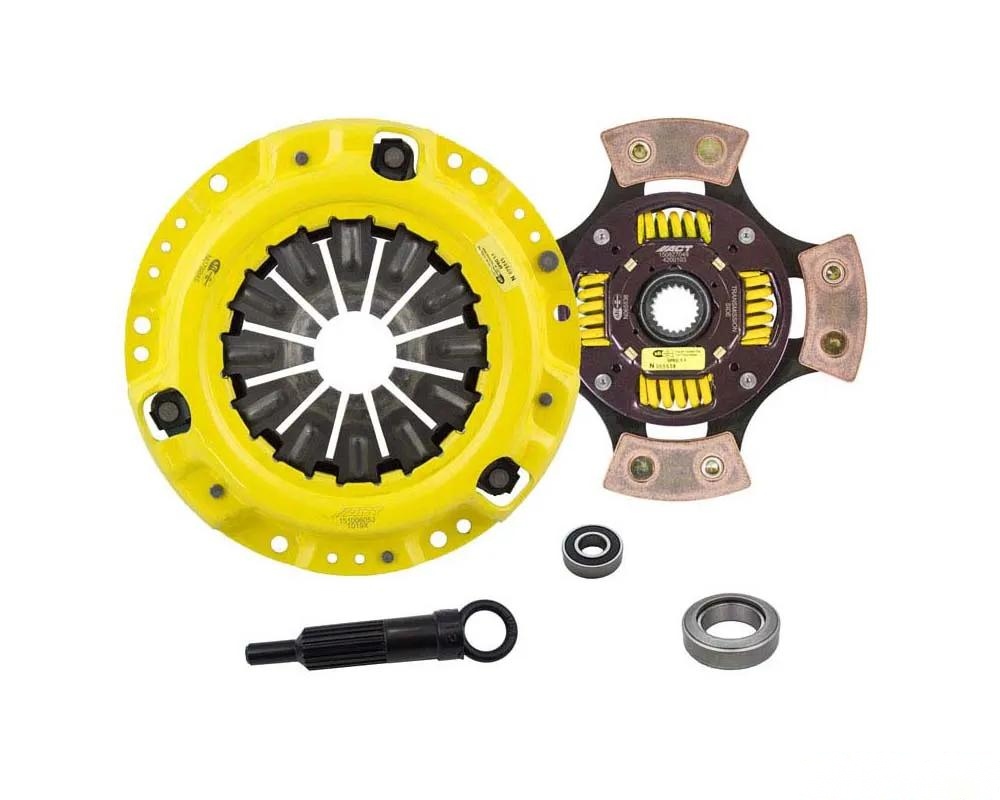

ACT TL1-XTG4 Clutch Kit

The ACT TL1-XTG4 is engineered for the serious driver seeking enhanced performance and reliability. This Xtreme pressure plate is designed with an exclusive diaphragm that increases clamp load while minimizing deflection, resulting in improved clutch life under demanding conditions. Each diaphragm undergoes a rigorous four-stage heat treatment process, ensuring exceptional durability and performance.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, producing OE to mild gear rattle.
• Moderate friction life, enhanced by ACT's innovative diaphragm design.
• Precision-engineered with select ceramic friction materials for high heat tolerance and optimal performance.
• Ideal for high horsepower applications, whether on the street or the track.
• Each unit is 100% clamp load tested and dynamically computer balanced for smooth operation at high RPMs.

Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 7.9 in (200 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 0.9375 in
• Alignment Tool Included: Yes
• Disc Type: Sprung
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight: 10.9 lbs
• Torque Capacity: 365 ft/lbs
• Torque Capacity Over OE: 1.57

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

This clutch kit is specifically designed for the following applications:

• Toyota Corolla: 1980-1981, 1985-1987
