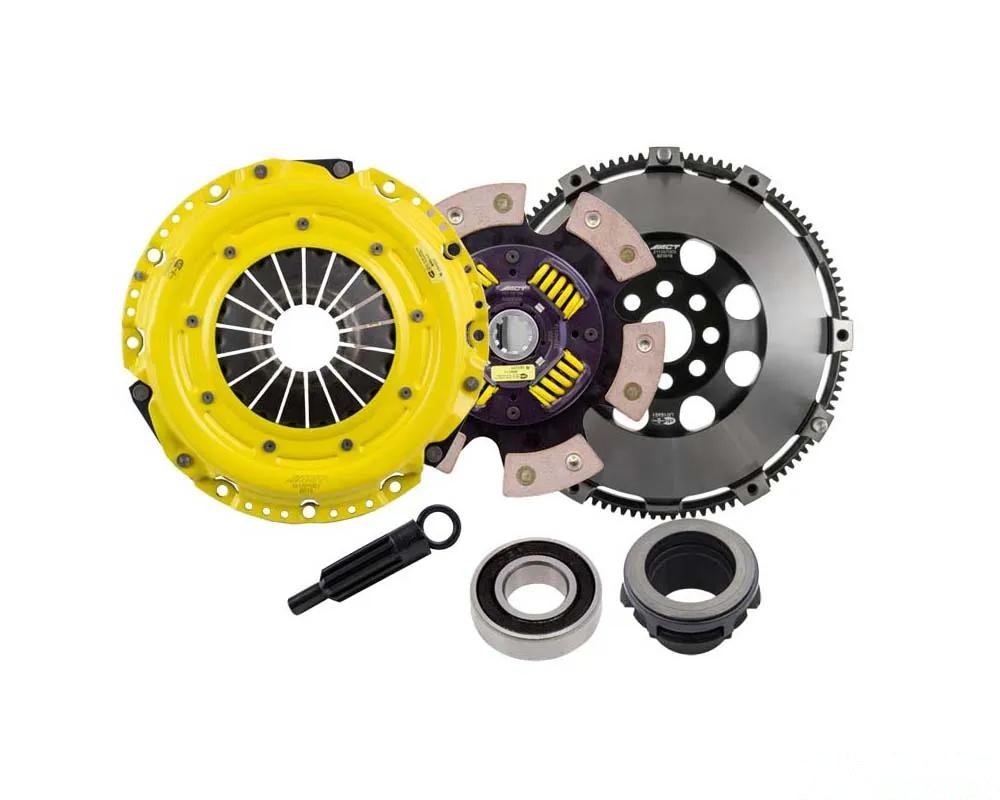

ACT Advanced Clutch XT/Race Sprung 6 Pad Kit BM13-XTG6

If you're a BMW owner looking to enhance your driving experience, the ACT Advanced Clutch XT/Race Sprung 6 Pad Kit (BM13-XTG6) is a must-have upgrade. Designed specifically for performance-driven enthusiasts, this kit features an Xtreme pressure plate that caters to the most demanding drivers. Whether you're hitting the track or just want a more responsive clutch for your daily drive, this kit delivers.

Why Choose the BM13-XTG6?

The ACT Xtreme pressure plate utilizes an exclusive diaphragm design that boosts clamp load, minimizes deflection, and ultimately extends clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring that it can withstand the rigors of high-performance driving. The precision cover stampings add rigidity and consistency, making this clutch a reliable choice for serious drivers.

Performance Features

• Moderate to heavy pedal effort with aggressive engagement—perfect for spirited driving.
• Designed for moderate friction life, enhanced by ACT's unique diaphragm technology.
• Constructed with select ceramic friction materials for optimal heat tolerance and performance.
• Ideal for high horsepower street or race applications.
• Each unit is 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Technical Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.125 in
• Pressure Plate Type: Xtreme
• Torque Capacity: 702 ft/lbs (1.29 times over OE)
• Product Weight: 25.4 lbs
• Flywheel Type: Prolite (included)
• Release Bearing Included: Yes
• Grease Included: Yes

Installation Notes

This is a conversion kit that includes the ACT Prolite flywheel, which is required for installation. Flywheel bolts (M12-1.5 x 30mm) and pressure plate bolts (M8-1.25 x 20mm) are included. For detailed installation instructions, CLICK HERE.

Fitment

The BM13-XTG6 kit is compatible with a wide range of BMW models, including:

• BMW 318i (1996-1999)
• BMW 318is (1996-1999)
• BMW 318ti (1996-1999)
• BMW 323Ci (2000)
• BMW 323i (1998-2000)
• BMW 323is (1998-1999)
• BMW 325Ci (2001-2003)
• BMW 325i (1992 & 2001-2003)
• BMW 325is (1992)
• BMW 325xi (2001-2003)
• BMW 328Ci (2000)
• BMW 328i (1996-2000)
• BMW 328is (1996-1999)
• BMW 330Ci (2001-2003)
• BMW 330i (2001-2003)
• BMW 330xi (2001-2003)
• BMW 525i (1991-1995 & 2001-2003)
• BMW 528i (1997-2000)
• BMW 530i (2001-2003)
• BMW M3 (1996-1999)
• BMW Z3 (1996-2002)
• BMW Z3 M (1998-2002)

Upgrade your BMW with the ACT BM13-XTG6 clutch kit for enhanced performance and reliability. Experience faster shifts and improved engagement that will transform your driving experience.
