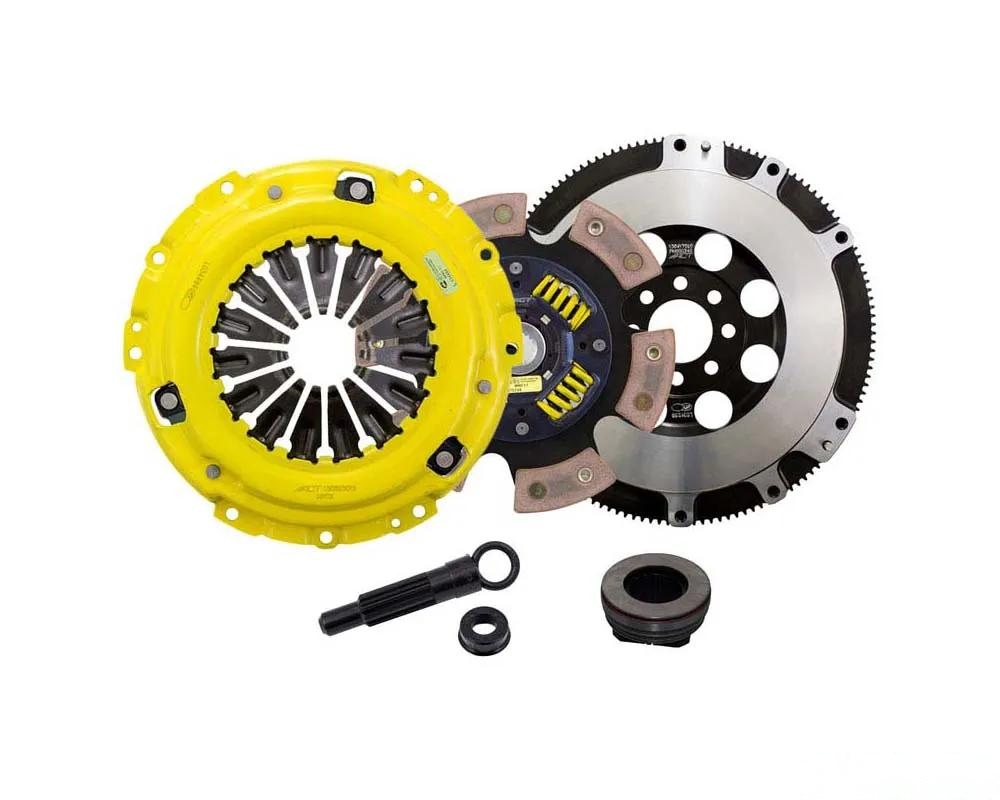

ACT DN4-XTG6 XT/Race Sprung 6 Pad Kit

The ACT DN4-XTG6 XT/Race Sprung 6 Pad Kit is engineered for drivers who demand maximum performance from their clutch system. This kit features an Xtreme pressure plate designed to significantly increase clamp load while minimizing deflection, which in turn enhances clutch longevity. Each diaphragm undergoes a rigorous four-stage heat-treating process to ensure exceptional performance under stress.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, resulting in OE to mild gear rattle.
• Engineered for moderate friction life, extended by ACT's advanced diaphragm design.
• Constructed with select ceramic friction materials for high heat tolerance and superior performance.
• Ideal for high horsepower applications, whether on the street or the track.
• Each unit is 100% clamp load tested and dynamically computer balanced for reliable high RPM operation.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 17
• Input Shaft Diameter: 0.9375 in
• Product Weight: 26.5 lbs
• Torque Capacity: 695 ft/lbs (1.2 times over OE)
• Pressure Plate Type: Xtreme
• Flywheel Type: Streetlite

Installation Notes

This kit replaces the modular clutch and requires the use of the included ACT flywheel. Pressure plate bolts (M8-1.25 x 16mm) are provided for secure installation. An alignment tool is included to simplify the setup process.

Fitment

Confirmed fitment for the ACT DN4-XTG6 includes:

• Dodge Neon (2000-2005)

For detailed installation instructions, CLICK HERE.
