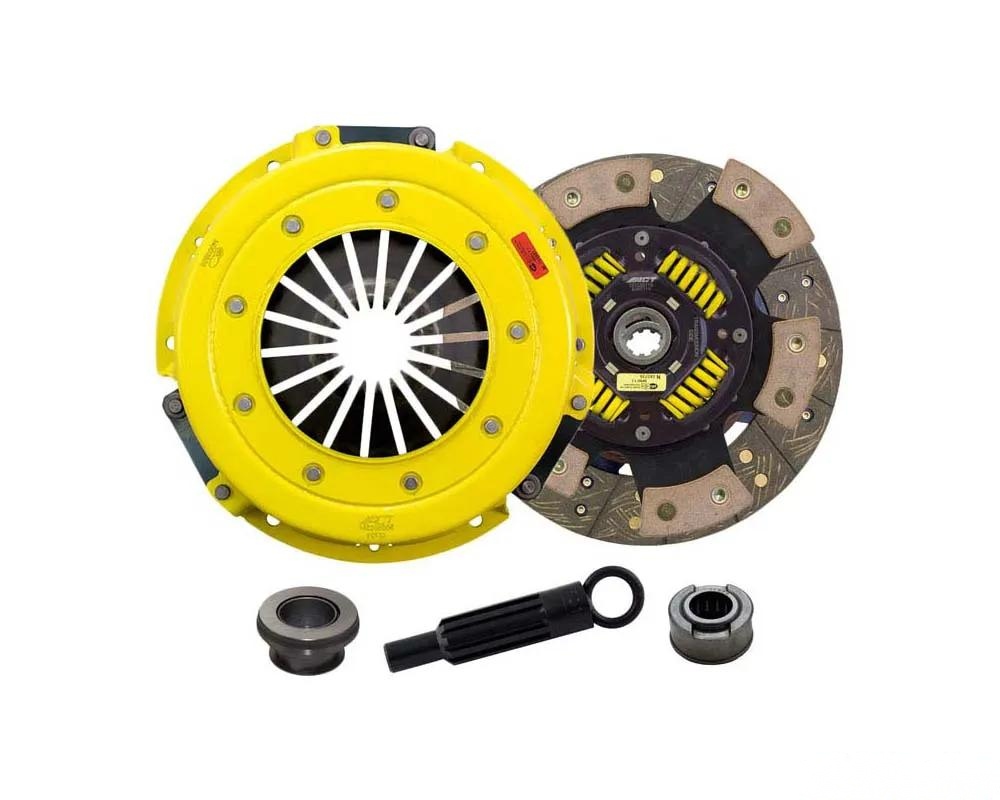

ACT FM7-XTG6 Clutch Kit

The ACT FM7-XTG6 is engineered for high-performance applications, featuring an Xtreme pressure plate designed to meet the demands of aggressive driving. This kit is ideal for those who push their vehicles to the limit, delivering enhanced clamp load and reduced deflection for improved clutch life.

Key Features

• Xtreme pressure plate with exclusive diaphragm design for increased clamp load.
• Four-stage heat-treated diaphragms ensure durability and performance under stress.
• Precision cover stampings provide rigidity and consistency for reliable operation.
• 6-pad spring-centered race disc dampens torsional vibrations, improving resilience in harsh conditions.
• Harsher engagement for quicker shifting, ideal for high horsepower street and race applications.

Specifications

• Clutch Disc Diameter: 10.5 in (266 mm)
• Disc Material: Ceramic for high heat tolerance
• Input Spline Quantity: 10
• Input Shaft Diameter: 1.0625 in
• Torque Capacity: 735 ft/lbs, 1.18 times over OE
• Product Weight: 23.2 lbs
• Alignment Tool Included: Yes
• Grease Included: Yes
• Pilot Bearing Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Fitment

The FM7-XTG6 is compatible with the following models:

• Ford Mustang 1994-2004
• Ford Mustang GT 1996-2001
• Ford Mustang SVT Cobra 1996-1998

This clutch kit is a solid choice for drivers seeking reliable performance in both street and racing conditions, offering a balance of durability and responsiveness that is essential for high-stakes driving.
