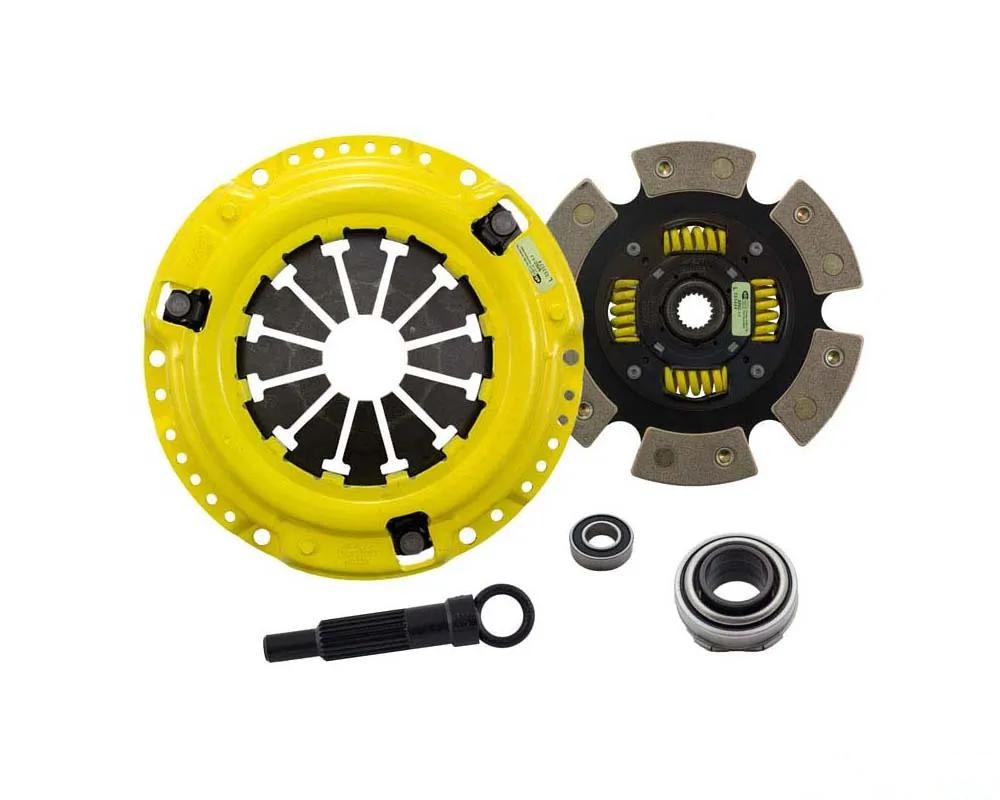

ACT HC4-XTG6 XT/Race Sprung 6 Pad Kit

The ACT HC4-XTG6 XT/Race Sprung 6 Pad Kit is engineered for performance-driven applications, catering to those who demand reliability and precision in their clutch systems. This kit features an Xtreme pressure plate designed specifically to handle the rigors of high horsepower environments, ensuring optimal clamp load and reduced deflection for enhanced clutch life.

Key Features

• Xtreme pressure plate with exclusive diaphragm design increases clamp load
• Four-stage heat-treated diaphragms for maximum durability
• Precision cover stampings enhance rigidity and consistency
• 6-pad spring-centered race disc dampens torsional vibrations, providing robust performance
• Thicker retainer stampings and wraparound spring windows to improve spring support and reliability

Specifications

• Clutch Disc Diameter: 8.3 in (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Torque Capacity: 380 ft/lbs, which is 1.48 times the OE capacity
• Product Weight: 11.2 lbs
• Release Bearing Included: Yes
• Pilot Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Installation Notes

For detailed installation instructions, refer to the installation guide.

Confirmed Fitment

• Honda Civic 1989-1991
• Honda CR-X 1989-1991

This clutch kit is suitable for moderate to heavy pedal effort, providing aggressive engagement that may cause mild gear rattle. It is recommended for high horsepower street or race applications, making it a solid choice for those looking to enhance their vehicle's performance without compromising reliability.
