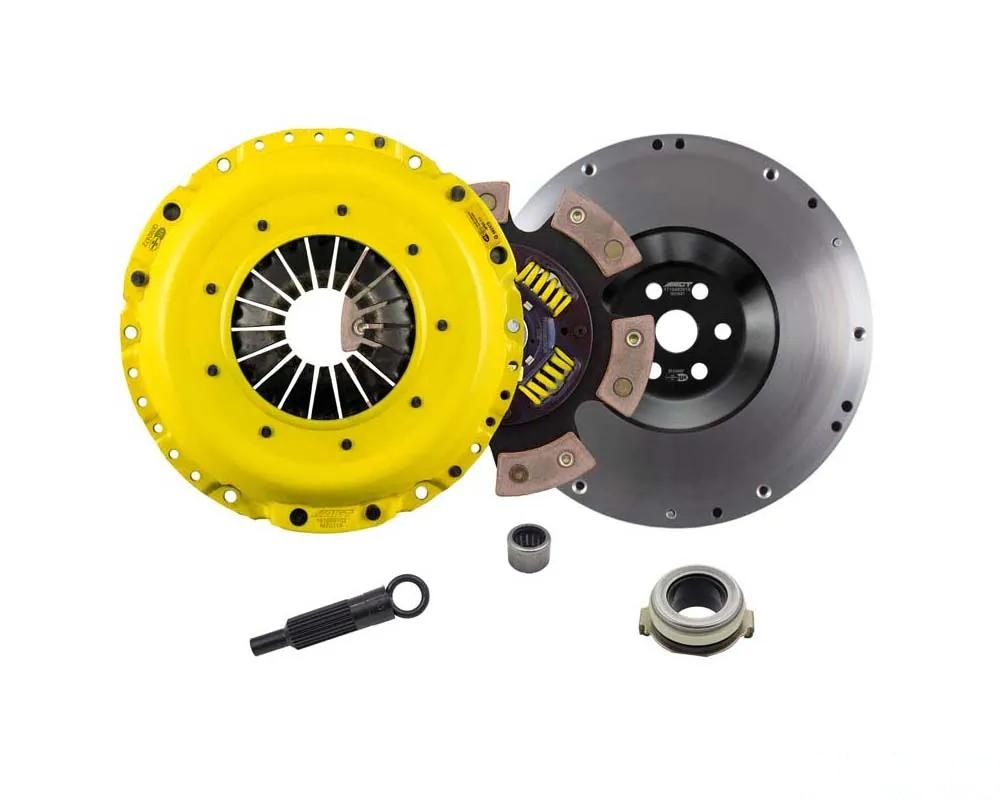

If you're serious about performance, the Advanced Clutch XT/Race Sprung 6 Pad Kit ZX5-XTG6 is a game changer. This isn?t just another clutch kit; it?s built for those who really push their rides to the limit. The Xtreme pressure plate is designed specifically for demanding drivers, and trust me, it delivers. With its unique diaphragm design, you get increased clamp load that minimizes deflection and maximizes the lifespan of your clutch. Plus, every diaphragm goes through a rigorous four-stage heat-treating process, which means you're getting durability that you can rely on.

Now, let?s talk about the heart of this kit?the 6-pad spring-centered race disc. This isn?t just about holding power; it?s about doing it under pressure. The spring-center construction is a lifesaver for dampening those torsional vibrations that can wreak havoc on your drivetrain. And with the thicker retainer stampings and wraparound spring windows, you get added support that reduces stress and boosts reliability. Sure, the engagement might be a bit harsher, but that just means shifting is quicker and more precise. It?s perfect for those larger clutch sizes that need to handle more heat without breaking a sweat.

Installation:

• Need install instructions? CLICK HERE

What You Can Expect:

• Moderate to heavy pedal effort with an aggressive engagement that might rattle your gears a bit?just part of the thrill.
• Thanks to ACT?s exclusive diaphragm design, you can expect a decent friction life.
• This kit is engineered to perfection, using high-quality ceramic friction materials that can handle the heat.
• Ideal for high horsepower street or race applications, it?s been 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: Yes
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Flywheel Type: Streetlite
• Product Weight: 38.3 lbs
• Torque Capacity: 681 ft/lbs (1.29 times over OE)

Notes:

• This is a conversion kit that includes the ACT Streetlite flywheel and pressure plate bolts (M8-1.25 x 16mm).

Compatibility:

• Mazda Mazda 3 (2004-2013)
• Mazda Mazda 6 (2003-2008)

With the ZX5-XTG6 kit, you're not just upgrading your clutch; you're investing in a piece of performance gear that?s ready for the track or the street. Get ready to feel the difference!
