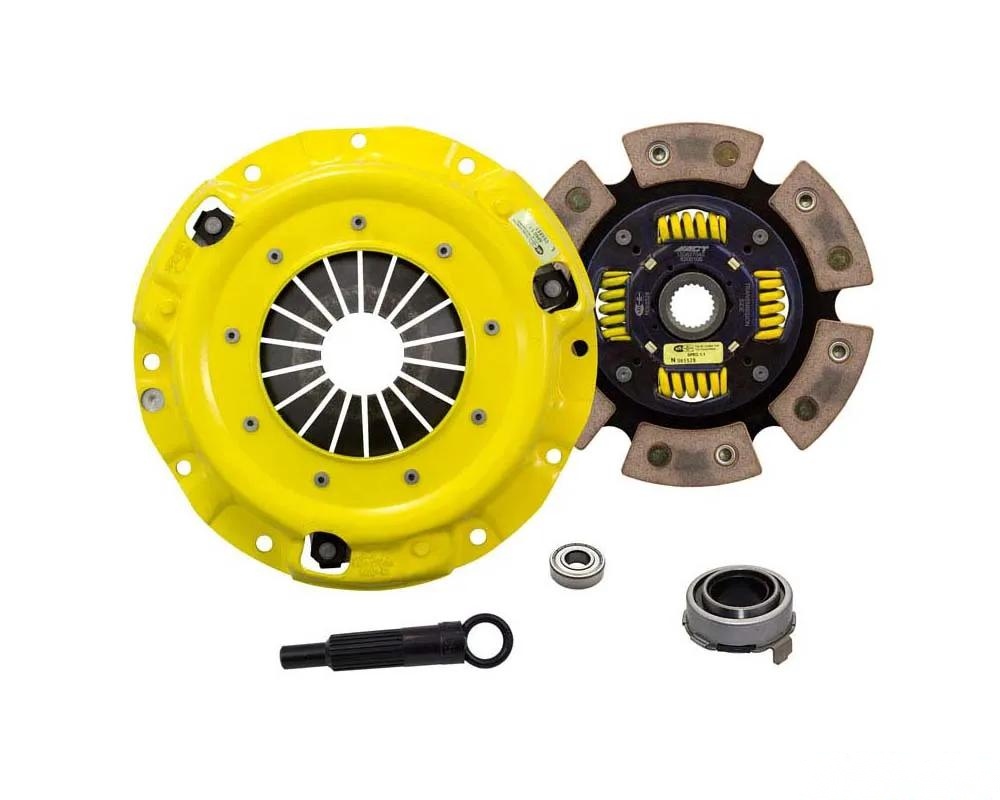

ACT ZM1-XTG6 Clutch Kit

The ACT ZM1-XTG6 is engineered for the performance driver seeking a robust clutch solution. This kit is equipped with an Xtreme pressure plate that utilizes a unique diaphragm design, enhancing clamp load while minimizing deflection. Such features contribute to an extended clutch life, making it suitable for both street and race applications.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, resulting in OE to mild gear rattle.
• Moderate friction life, optimized by ACT's proprietary diaphragm design.
• Precision-engineered with select ceramic friction materials, ensuring high heat tolerance and maximum performance.
• Ideal for high horsepower applications, whether on the street or track.
• 100% clamp load tested and dynamically balanced for reliability at high RPMs.

Specifications

• Clutch Disc Diameter: 7.9 in (200 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 22
• Input Shaft Diameter: 0.9375 in
• Disc Type: Sprung
• Torque Capacity: 350 ft/lbs
• Weight: 11.8 lbs

Installation Notes

• Must be used with the factory flywheel.
• For detailed installation instructions, CLICK HERE.

Compatibility

This clutch kit is confirmed to fit the Mazda Miata models from 1990 to 1993, ensuring precision and reliability for these vehicles.
