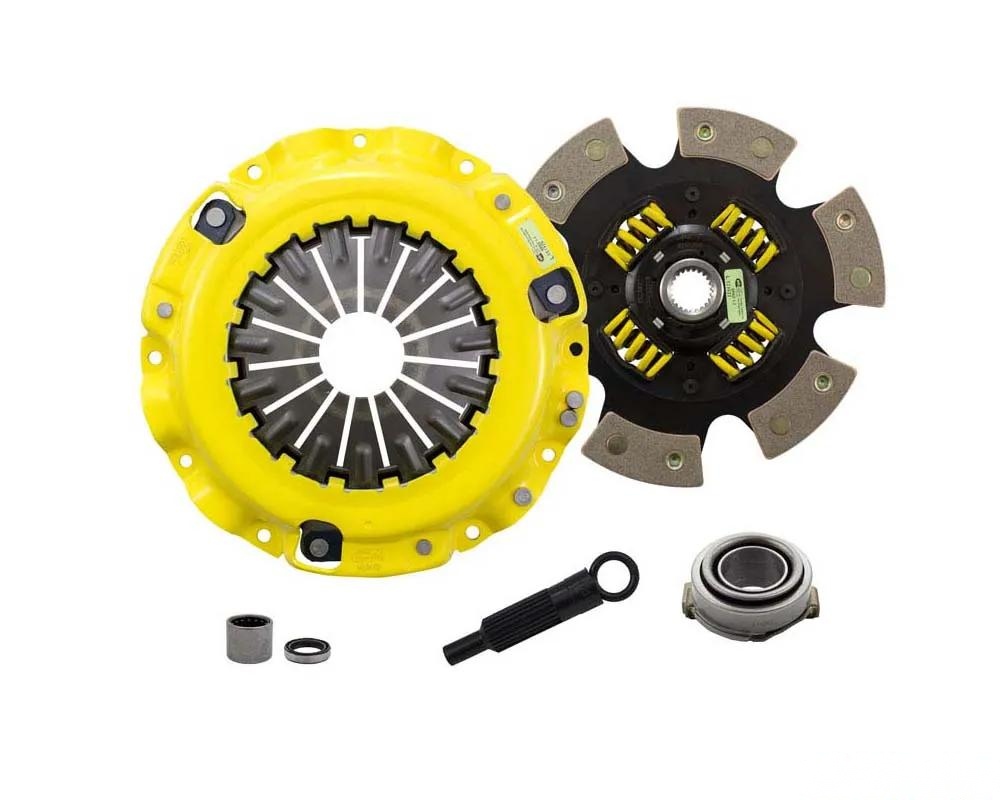

If you're looking to take your Mazda RX-7 to the next level, the ACT XT/Race Sprung 6 Pad Kit (Z65-XTG6) is something you should seriously consider. This kit is tailored for those who push their cars hard—think track days and spirited drives. The Xtreme pressure plate is designed to handle the heat, literally. Thanks to an exclusive diaphragm design, it cranks up the clamp load while keeping deflection in check, which means your clutch life gets a nice boost. Plus, every diaphragm goes through a four-stage heat-treating process, so you know it’s built to last.

The 6-pad spring-centered race disc is where the magic happens. It’s engineered to dampen torsional vibrations, so you won’t have to worry about it failing when the going gets tough. The wraparound spring windows and beefed-up retainer stampings provide solid support, which is crucial when you're pushing your RX-7 hard. Sure, engagement is a bit harsher, but that’s what you want for quicker shifts, right? This disc is perfect for those larger clutch sizes, as it can absorb more heat without breaking a sweat.

Install Instructions:

• Need help? CLICK HERE for the installation guide.

Features:

• Moderate to heavy pedal feel—expect some muscle to engage.
• Decent friction life, thanks to that clever diaphragm design.
• Made with select ceramic friction materials to handle high heat and maximize performance.
• Perfect for high horsepower applications, whether on the street or the track.
• Each unit is 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications:

• Clutch Master Cylinder: Not included
• Grease: Yes, included
• Grade Type: Performance
• Pilot Bushing: Not included
• Pressure Plate Type: Xtreme
• Release Bearing: Yes, included
• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool: Yes, included
• Disc Type: Sprung Solid
• Pressure Plate Bolts: Not included
• Clutch Slave Cylinder: Not included
• Flywheel Bolts: Not included
• Pilot Bearing: Yes, included
• Product Weight: 16.5 lbs
• Torque Capacity: 560 ft/lbs
• Torque Capacity Over OE: 1.3 times

Notes:

• Don’t forget, the flywheel requires a counterweight (not included).

This kit is specifically designed for the 1986-1992 Mazda RX-7, so you can trust it to fit right and perform like a champ.
