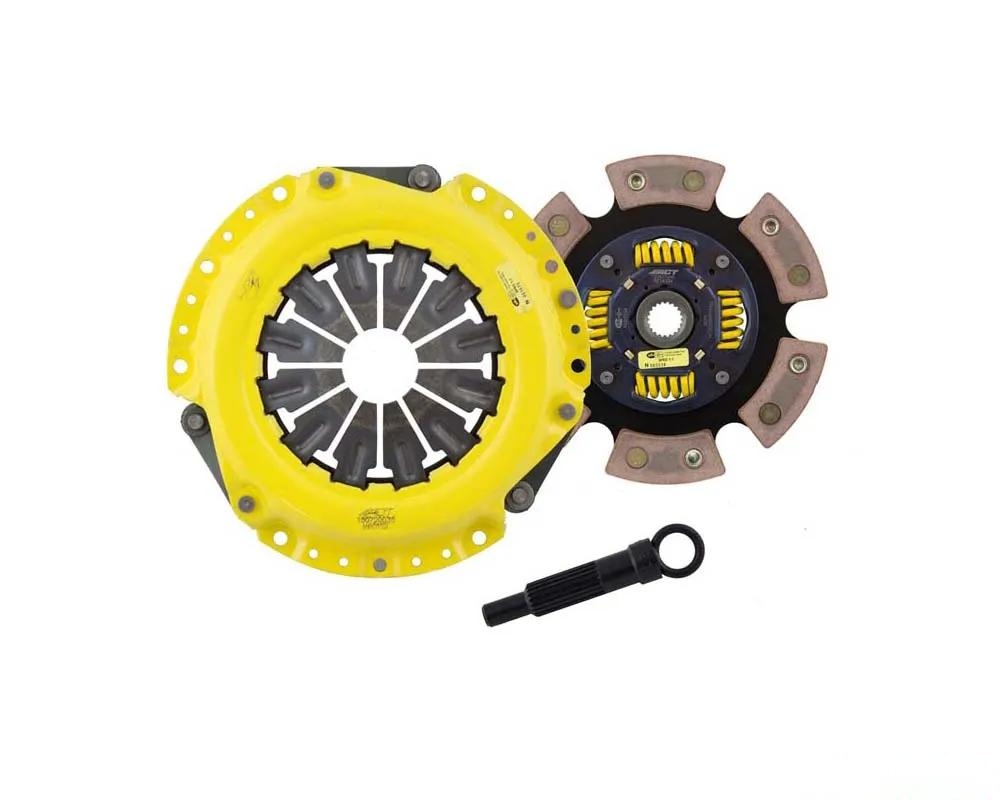

ACT MB8-XTG6 Clutch Kit

The ACT MB8-XTG6 is engineered for performance-driven drivers who demand reliability and responsiveness from their clutch system. This kit features an Xtreme pressure plate, designed with an exclusive diaphragm that enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional durability under extreme conditions.

Pressure Plate and Disc Construction

ACT's precision cover stampings provide the necessary rigidity and consistency required for high-performance applications. The 6-pad spring-centered race disc is constructed to absorb torsional vibrations effectively, ensuring that it can withstand the rigors of aggressive driving. The spring retainers are designed with wraparound spring windows and thicker stampings, which enhance spring support and overall reliability.

Performance Characteristics

• Moderate to heavy pedal effort with aggressive engagement.
• Designed for a harsher engagement, enabling faster shifts.
• Utilizes select ceramic friction materials for high heat tolerance.
• Recommended for high horsepower street and race applications.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.

Specifications

• Clutch Disc Diameter: 8.4 in (214 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter: 0.875 in
• Product Weight: 11.1 lbs
• Torque Capacity: 420 ft/lbs (1.49 times over OE)
• Alignment Tool Included: Yes
• Grease Included: Yes

Installation Notes

For detailed installation instructions, please refer to the installation guide.

Fitment

The ACT MB8-XTG6 is confirmed to fit the Mitsubishi Lancer models from 2002 to 2007.
