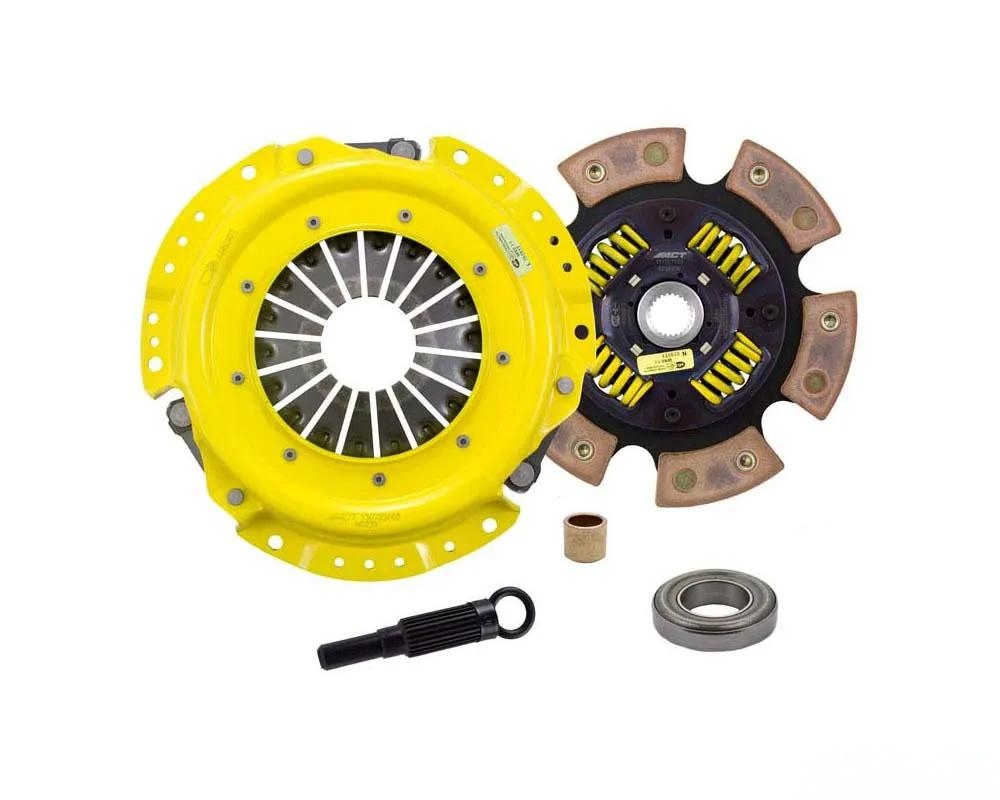

ACT NX1-XTG6 Advanced Clutch XT/Race Sprung 6 Pad Kit

If you're serious about your Nissan's performance, the ACT NX1-XTG6 Advanced Clutch XT/Race Sprung 6 Pad Kit is engineered for the most demanding drivers. This kit features an Xtreme pressure plate designed specifically to enhance your driving experience, whether you're hitting the streets or the track.

Why Choose the NX1-XTG6?

The NX1-XTG6 utilizes a unique diaphragm design that increases clamp load while reducing deflection, ultimately maximizing clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process, ensuring durability and performance under pressure. The precision cover stampings deliver rigidity and consistency, making this clutch a reliable choice for your high-performance build.

Performance Features

• Moderate to heavy pedal effort and aggressive engagement for a race-ready feel.
• Designed for moderate friction life, enhanced by ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials to withstand high heat and deliver maximum performance.
• Ideal for high horsepower street or race applications.
• Each unit is 100% clamp load tested and dynamically computer balanced for smooth high RPM operation.

Technical Specifications

• Clutch Disc Diameter: 8.8 in (224 mm)
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Product Weight: 14.9 lbs
• Torque Capacity: 475 ft/lbs (1.68 times over OE)
• Disc Material: Ceramic
• Pressure Plate Type: Xtreme
• Grease Included: Yes
• Pilot Bushing Included: Yes
• Release Bearing Included: Yes
• Alignment Tool Included: Yes

Vehicle Fitment

This clutch kit is compatible with the following models:

• Nissan 240SX S13 (1989-1990)
• Nissan 240SX S14 (1995-1998)
• Nissan 280Z (1975-1978)
• Nissan 280ZX (1979-1983)
• Nissan 620 (1975-1979)
• Nissan 720 (1985-1986)
• Nissan Axxess (1990)
• Nissan Maxima (1982-1984)

Installation Instructions

Ready to install? For detailed installation instructions, CLICK HERE.

Customer Feedback

Nissan 240SX S14 owners have reported that the NX1-XTG6 provides a noticeable improvement in shifting speed and clutch engagement. One owner mentioned, "The engagement is definitely harsher, but it allows for quicker shifts during track days." Another added, "I love how it holds up under pressure, even when pushing over 400 hp!"

Upgrade your Nissan with the ACT NX1-XTG6 kit for a clutch that can handle the heat and give you the performance edge you need!
