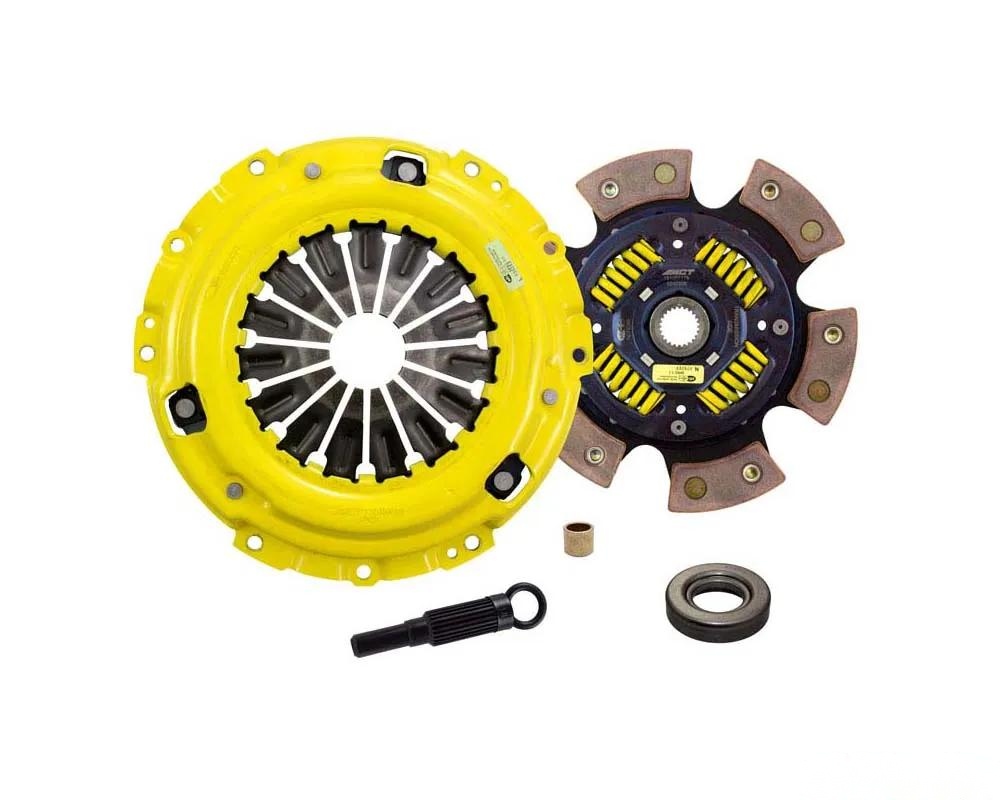

ACT NS1-XTG6 Clutch Kit

The ACT NS1-XTG6 is engineered for those who demand superior performance from their clutch system. This kit features the Xtreme pressure plate, designed specifically to handle the rigors of high-horsepower applications. The unique diaphragm design enhances clamp load while minimizing deflection, ensuring longevity and reliability under extreme conditions.

Key Features

• Moderate to heavy pedal effort with aggressive engagement, suitable for street and race use.
• Extended friction life due to ACT's exclusive diaphragm design.
• Precision-engineered with select ceramic friction materials, optimizing heat tolerance and performance.
• 100% clamp load tested and dynamically balanced for reliable high RPM operation.
• 6-pad spring-centered race disc allows for faster shifting, though engagement is harsher.

Specifications

• Clutch Disc Diameter: 9.4 in (240 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in
• Torque Capacity: 565 ft/lbs, 1.27 times over OE
• Product Weight: 17.1 lbs
• Pilot Bushing: Included
• Grease: Included
• Alignment Tool: Included
• Release Bearing: Included

Installation Notes

For detailed installation instructions, refer to the installation guide.
