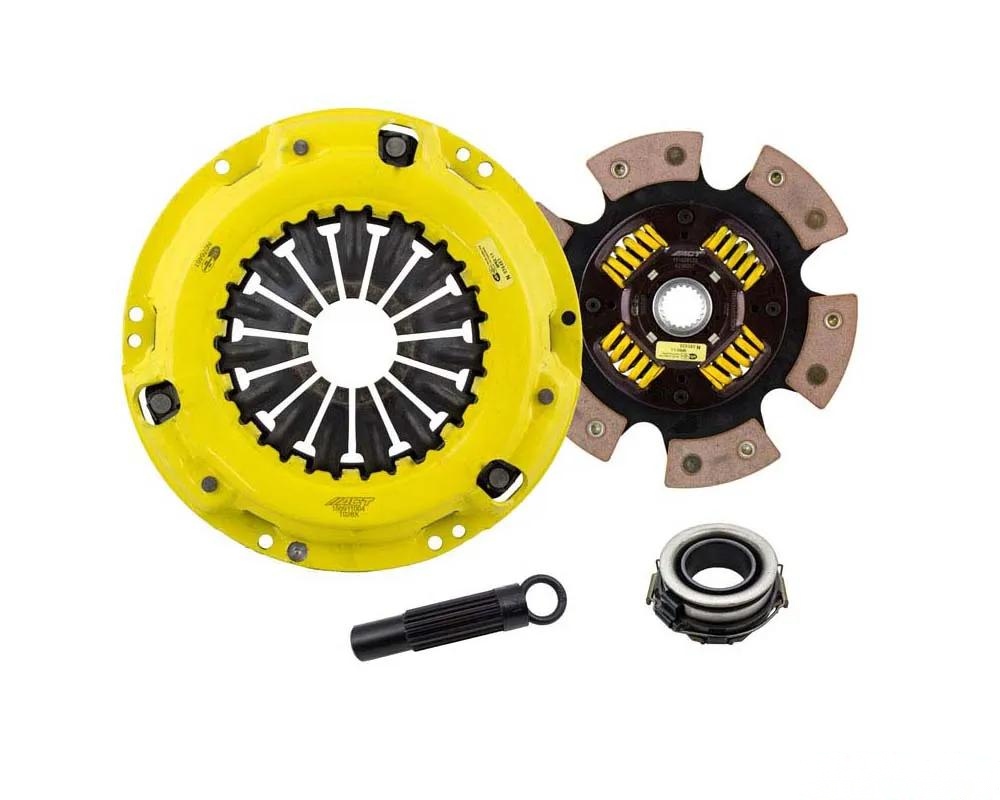

ACT TC6-XTG6 Advanced Clutch XT/Race Sprung 6 Pad Kit

If you're serious about performance, the ACT TC6-XTG6 Advanced Clutch XT/Race Sprung 6 Pad Kit is designed for drivers who demand the best from their vehicles. This kit features an Xtreme pressure plate, engineered specifically for those who push their cars to the limit. Whether you're a Scion tC owner from 2005-2010, a Toyota Camry enthusiast from 1987-2006, or a Toyota Solara driver from 2001-2008, this clutch kit is built to enhance your driving experience.

Why Choose the TC6-XTG6?

The ACT Xtreme pressure plate utilizes a unique diaphragm design that increases clamp load while minimizing deflection, ensuring maximum clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, which translates to unparalleled performance on the track or street. Precision cover stampings enhance rigidity and consistency, making this clutch kit a reliable choice for high-stress applications.

At the heart of this kit is the 6-pad spring-centered race disc, crafted to dampen torsional vibrations and withstand harsh conditions. The engagement may be harsher, but it results in quicker shifting?ideal for spirited drives or competitive racing. This disc is particularly recommended for larger clutch sizes, allowing it to absorb more heat during intense driving sessions.

Installation and Features

• For detailed installation instructions, CLICK HERE.

• Moderate to heavy pedal effort with aggressive engagement.
• Designed for moderate friction life, extended by ACT's exclusive diaphragm design.
• Constructed with select ceramic friction materials for superior heat tolerance and performance.
• Perfect for high horsepower street or race applications.
• 100% clamp load tested and dynamically computer balanced for reliability at high RPMs.

Technical Specifications

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter: 9.3 in (236 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 1.125 in
• Alignment Tool Included: Yes
• Disc Type: Sprung Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Product Weight: 15.2 lbs
• Torque Capacity: 500 ft/lbs (1.06 times over OE)

Customer Feedback

Many Scion tC owners appreciate the TC6-XTG6 for its robust performance during spirited driving sessions. One owner noted, "After installing the ACT clutch kit, my shifts are noticeably faster, and I can feel the increased grip on the track." Another Toyota Camry driver mentioned, "This clutch handles my modified engine's power without breaking a sweat?definitely a solid upgrade!"

Fitment

This clutch kit is compatible with the following vehicles:

• Scion tC (2005-2010)
• Toyota Camry (1987-2006)
• Toyota Solara (2001-2008)
