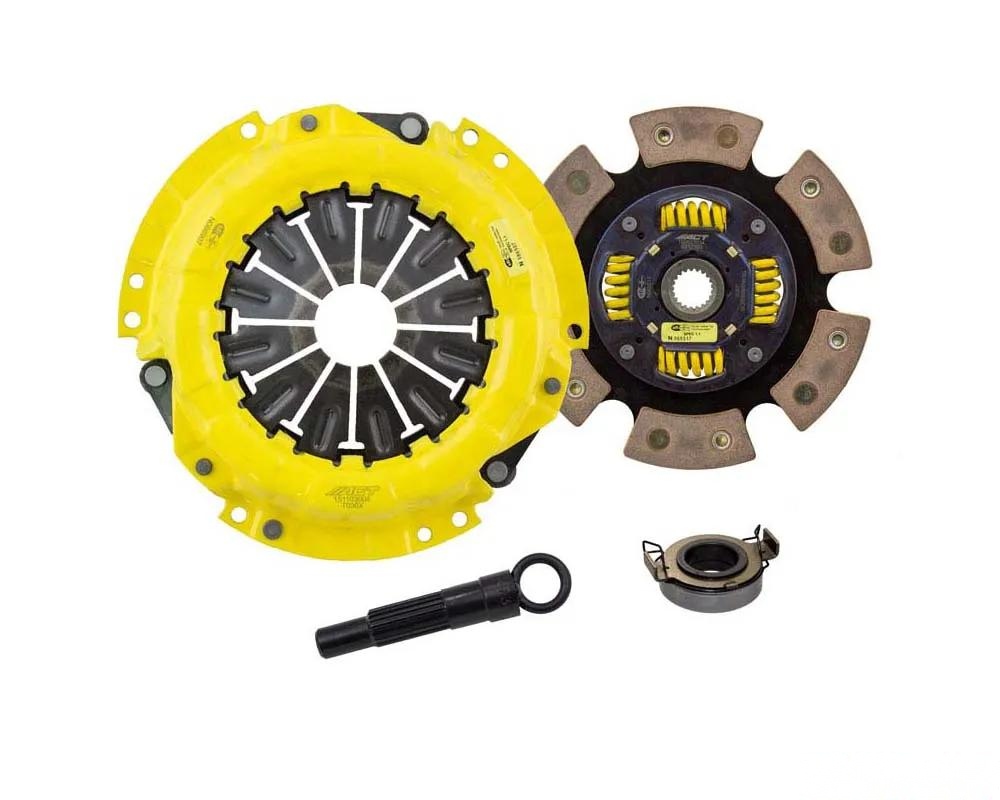

ACT TC2-XTG6 Clutch Kit

The ACT TC2-XTG6 is engineered for high-performance applications, featuring the Xtreme pressure plate designed for demanding driving conditions. This clutch kit is ideal for those seeking enhanced durability and performance in their vehicle’s drivetrain.

Key Features

• Xtreme pressure plate with an exclusive diaphragm design that increases clamp load while minimizing deflection for improved clutch life.
• Precision cover stampings ensure rigidity and consistent performance under stress.
• 6-pad spring-centered race disc construction effectively dampens torsional vibrations, making it resilient against harsh driving conditions.
• Utilizes wraparound spring windows and thicker retainer stampings in the spring retainers for increased strength and reliability.
• Designed for aggressive engagement, the 6-pad configuration allows for faster shifting, making it suitable for high horsepower applications.

Installation Notes

• For detailed installation instructions, CLICK HERE.

Specifications

• Clutch Disc Diameter: 8.3 inches (212 mm)
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter: 0.9375 inches
• Torque Capacity: 400 ft/lbs (1.22 times OE)
• Weight: 13.5 lbs
• Release Bearing Included: Yes
• Grease Included: Yes
• Alignment Tool Included: Yes

Compatible Vehicles

• Geo Prizm (1991-1997)
• Pontiac Vibe (2003-2008)
• Toyota Celica (1991-1997 & 2000-2005)
• Toyota Corolla (1992-2013)
• Toyota Matrix (2003-2013)
• Toyota MR2/MRS (2000-2005)
