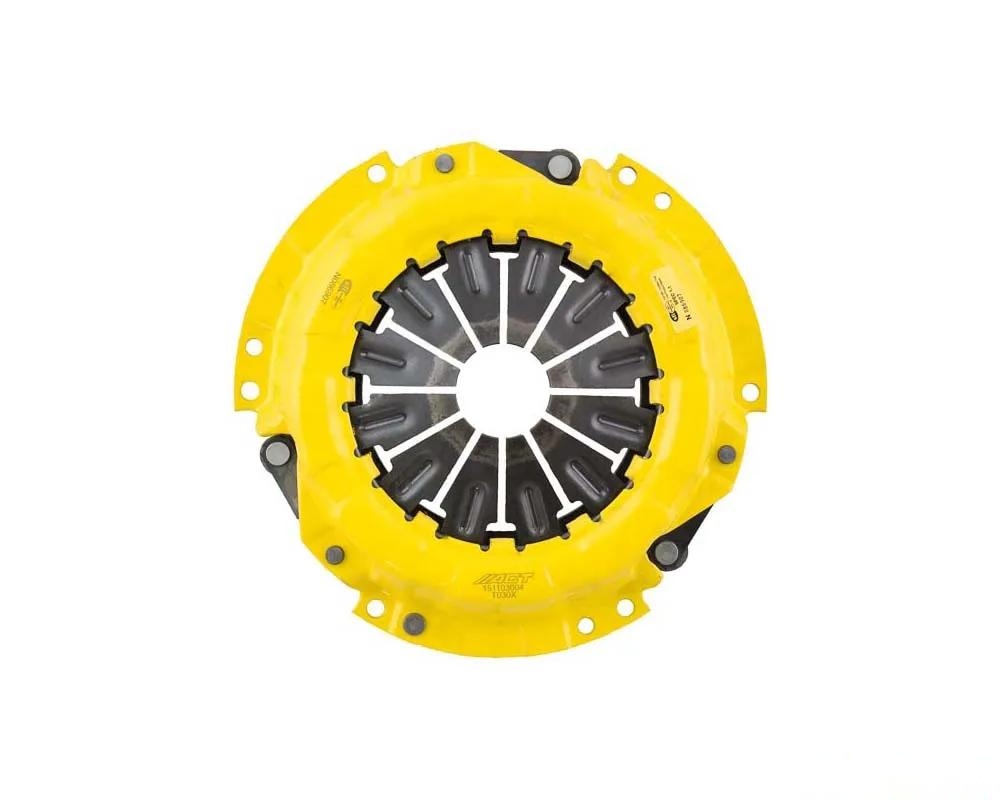

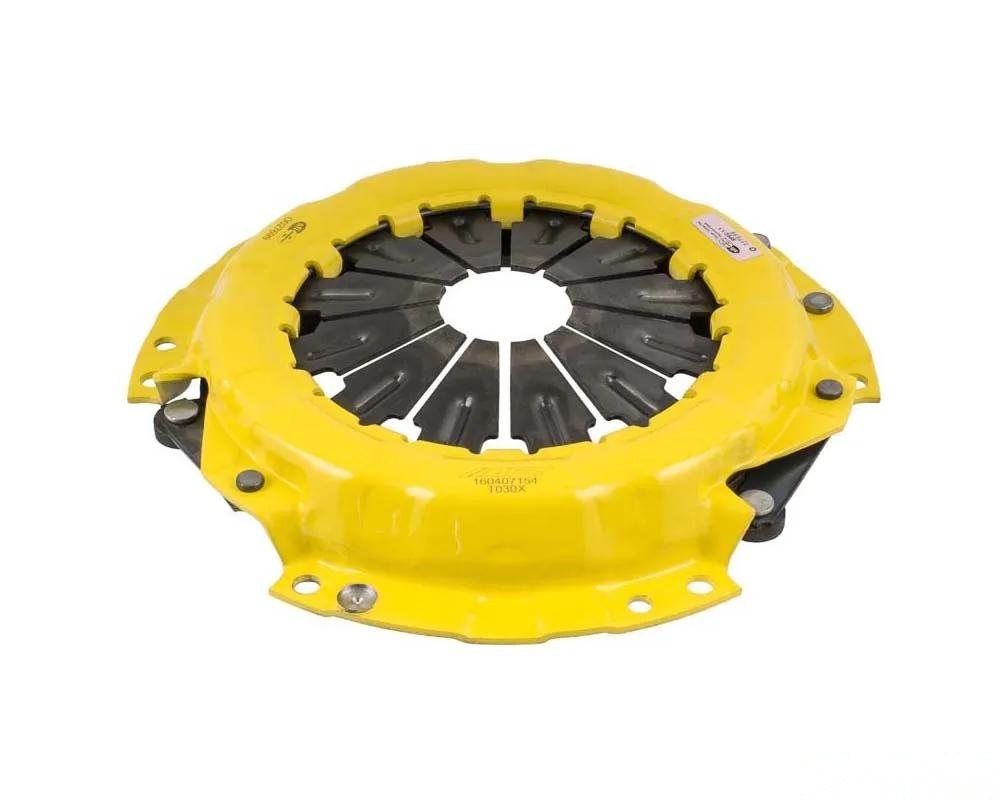

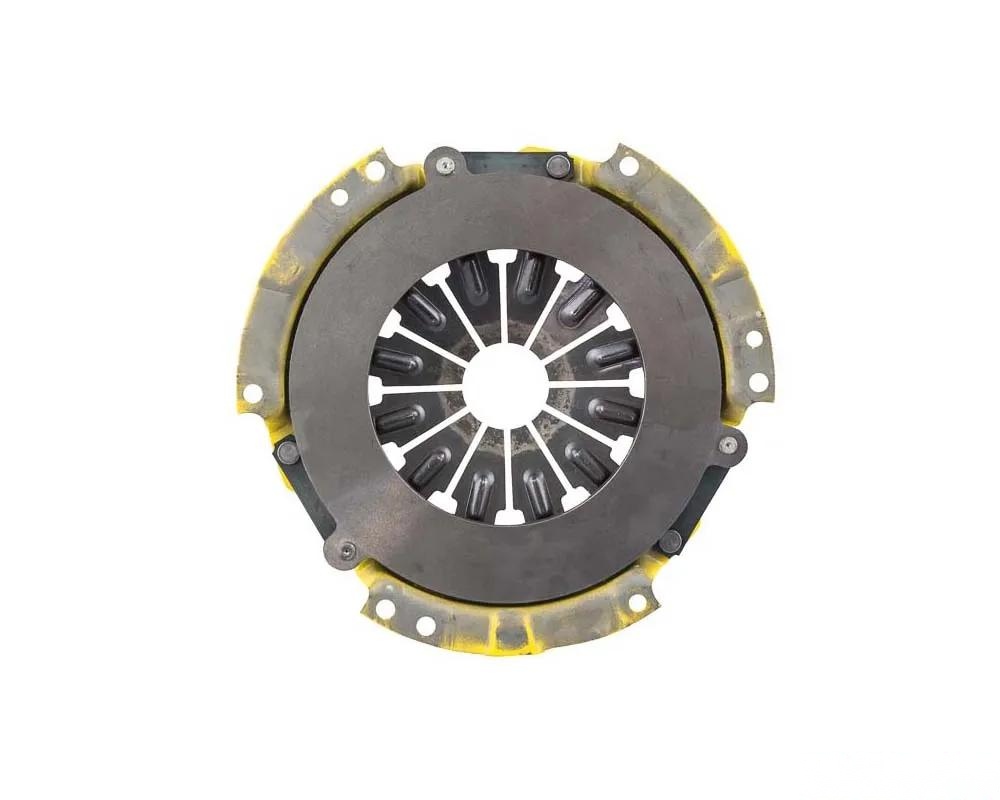

ACT Xtreme Pressure Plate T030X

The ACT Xtreme Pressure Plate T030X is engineered for those seeking enhanced performance from their clutch system. Utilizing an exclusive diaphragm design, this pressure plate significantly increases clamp load while minimizing deflection, which contributes to improved clutch longevity. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring durability and reliability under demanding conditions.

Key Features

• Increased clamp load by 50% to 120%, optimizing engagement and performance.
• Moderate to heavy pedal effort for a more connected driving experience.
• Precision cover stampings enhance rigidity and consistency.
• 100% clamp load tested and dynamically balanced for smooth operation at high RPMs.
• Recommended for both street and race applications, providing versatility for various driving styles.

Specifications

• Diameter: 8.3 inches (212 mm)
• Type: Xtreme
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 8.5 lbs
• SFI Rating: 1.1

Installation Notes

• For detailed installation instructions, CLICK HERE.

Fitment

The ACT Xtreme Pressure Plate T030X is compatible with the following models:

• Geo Prizm (1990-1997)
• Pontiac Vibe (2003-2008)
• Scion xA (2004-2006)
• Scion xB (2004-2006)
• Toyota Celica (1990-2005)
• Toyota Corolla (1989-2013)
• Toyota Matrix (2003-2014)
• Toyota MR2 (1985-1989)
• Toyota MR2/MRS (2000-2005)
