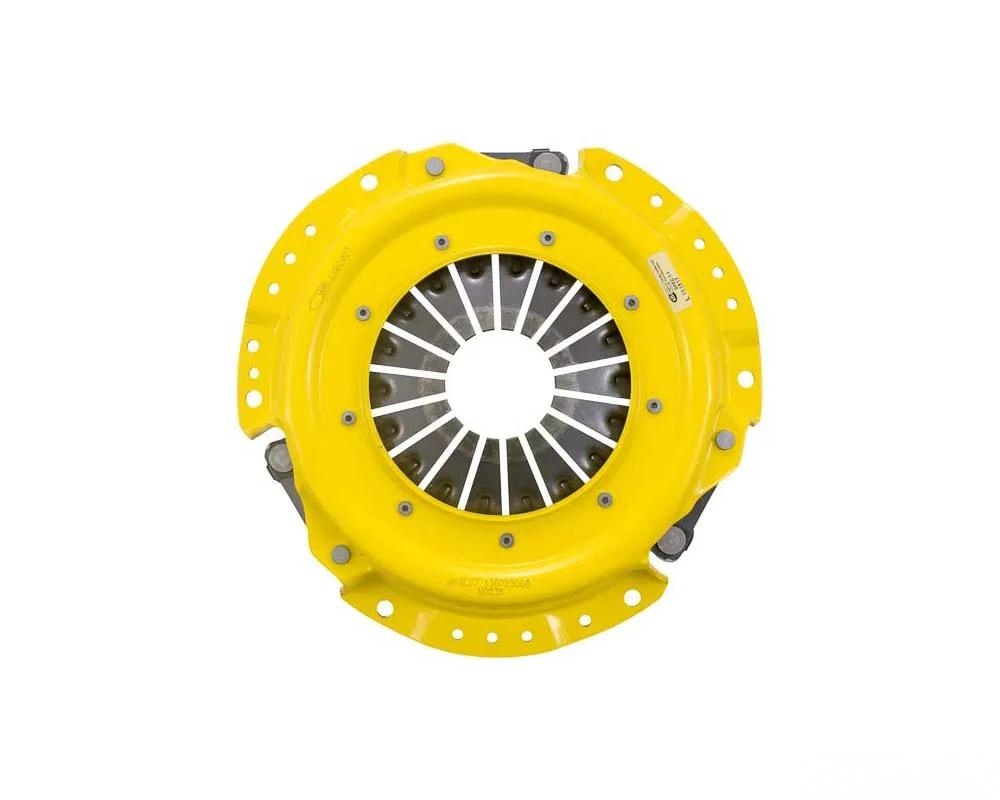

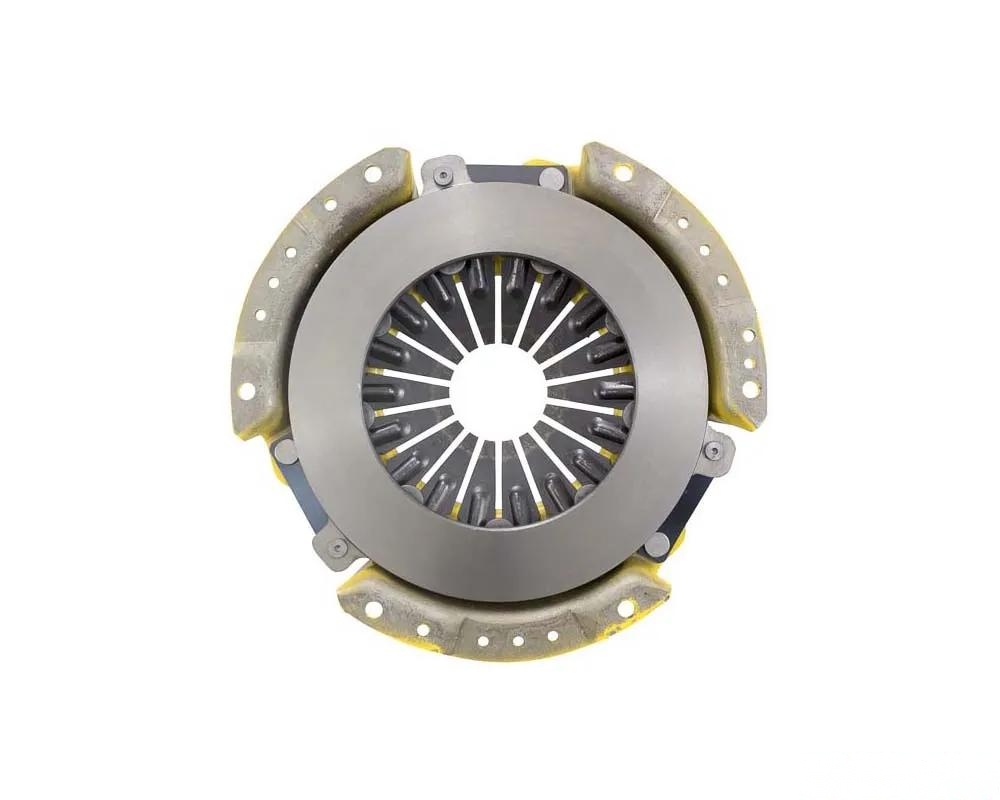

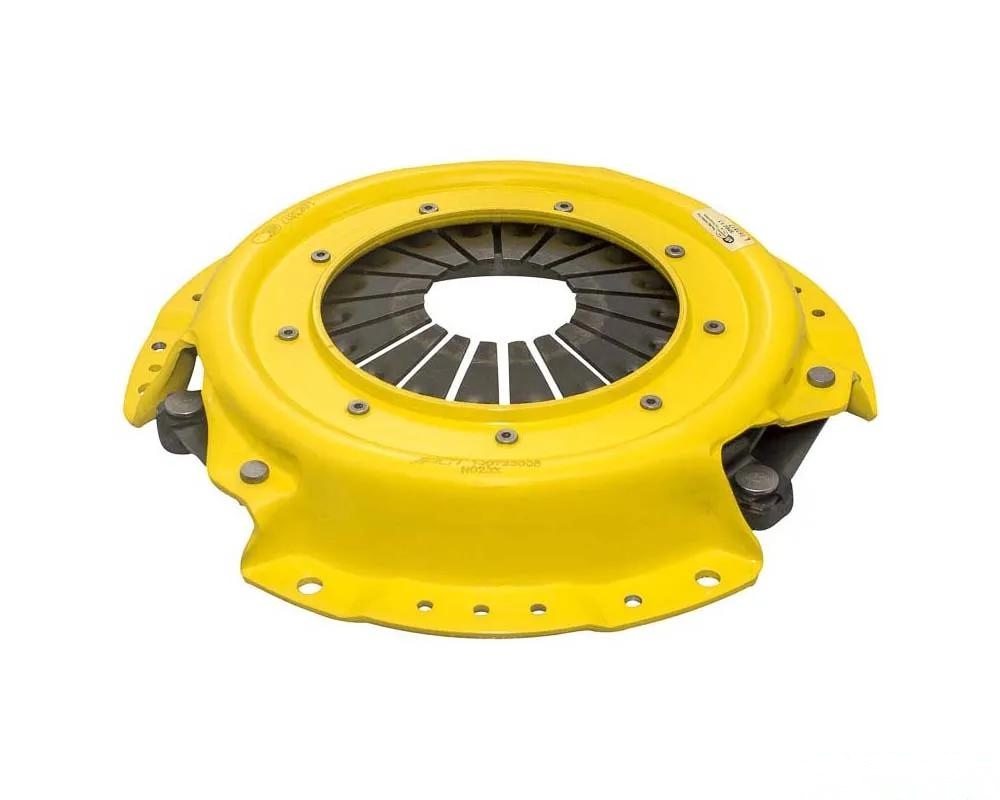

Advanced Clutch Xtreme Pressure Plate N023X

The Advanced Clutch Xtreme Pressure Plate N023X is designed for serious automotive enthusiasts who demand more from their clutch setup. This pressure plate utilizes a unique diaphragm design that significantly boosts clamp load, reducing deflection while extending clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring top-notch performance under pressure. With precision cover stampings, the ACT pressure plates offer enhanced rigidity and consistency, making them a reliable choice for both street and track applications.

Why Choose the N023X?

For those looking to maximize their performance, the N023X increases clamp load by an impressive 50 to 120 percent. This means you can expect a firmer pedal feel and improved engagement, whether you're cruising down the street or tearing up the racetrack. It's specifically engineered for use with street or race discs, giving you the flexibility to tailor your setup to your driving style.

Installation Details

• For detailed installation instructions, CLICK HERE.

Key Features

• Moderate to heavy pedal effort for positive engagement
• Enhanced lifespan thanks to the exclusive diaphragm design
• Engineered for durability, precision assembly, and accurate balancing
• Suitable for both street and race applications
• 100% clamp load tested and dynamically balanced for smooth high RPM performance

Technical Specifications

• Diameter: 8.8 in (224 mm)
• Type: Xtreme
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 10.8 lbs
• SFI Rating: 1.1

Fitment

This pressure plate is compatible with the following Nissan models:

• Nissan 240SX S13 (1989-1994)
• Nissan 240SX S14 (1995-1998)
• Nissan 280Z (1975-1978)
• Nissan 280ZX (1979-1983)
• Nissan 620 (1975-1979)
• Nissan 720 (1985-1986)
• Nissan Axxess (1990)
• Nissan Maxima (1981-1988)
• Nissan Stanza (1990-1992)

Customer Feedback

Owners of the Nissan 240SX S14 have reported that after installing the N023X, they experienced a noticeable improvement in clutch response during spirited driving. One owner shared, “The pedal feel is much firmer, and I can really feel the difference when launching at the track. It’s a game changer for my setup!”

For Nissan 280Z enthusiasts, the N023X has been praised for its reliability and performance under high-stress conditions. A customer noted, “This pressure plate holds up great, even during long track days. I’ve had zero issues with slippage!”
