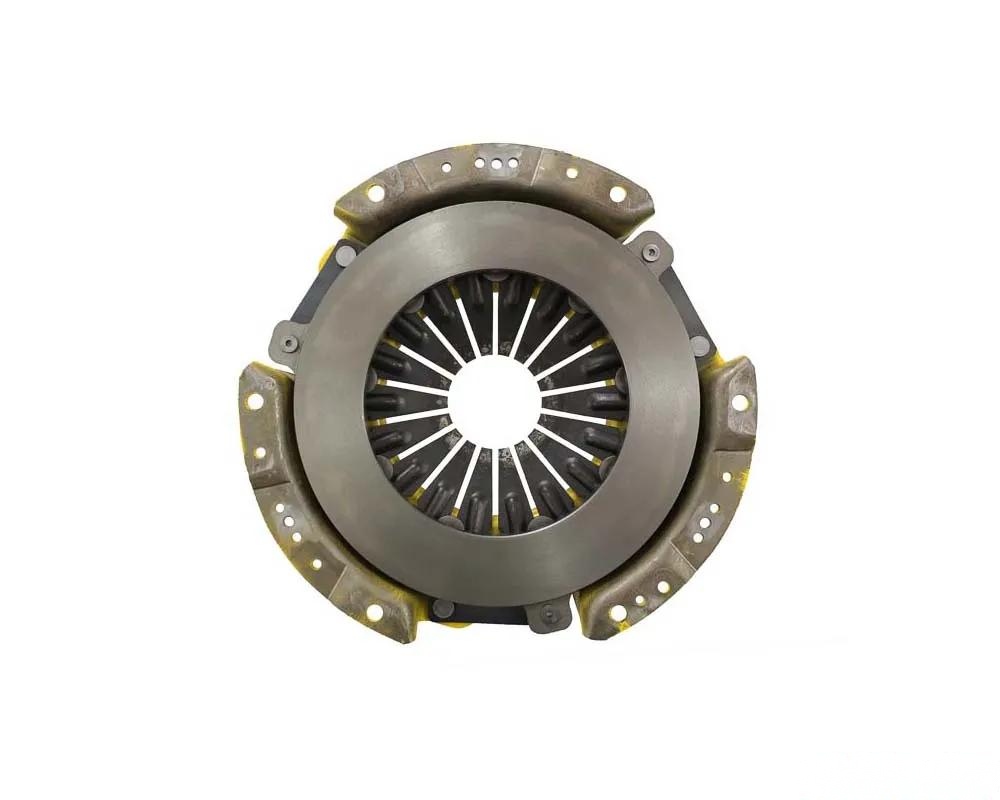

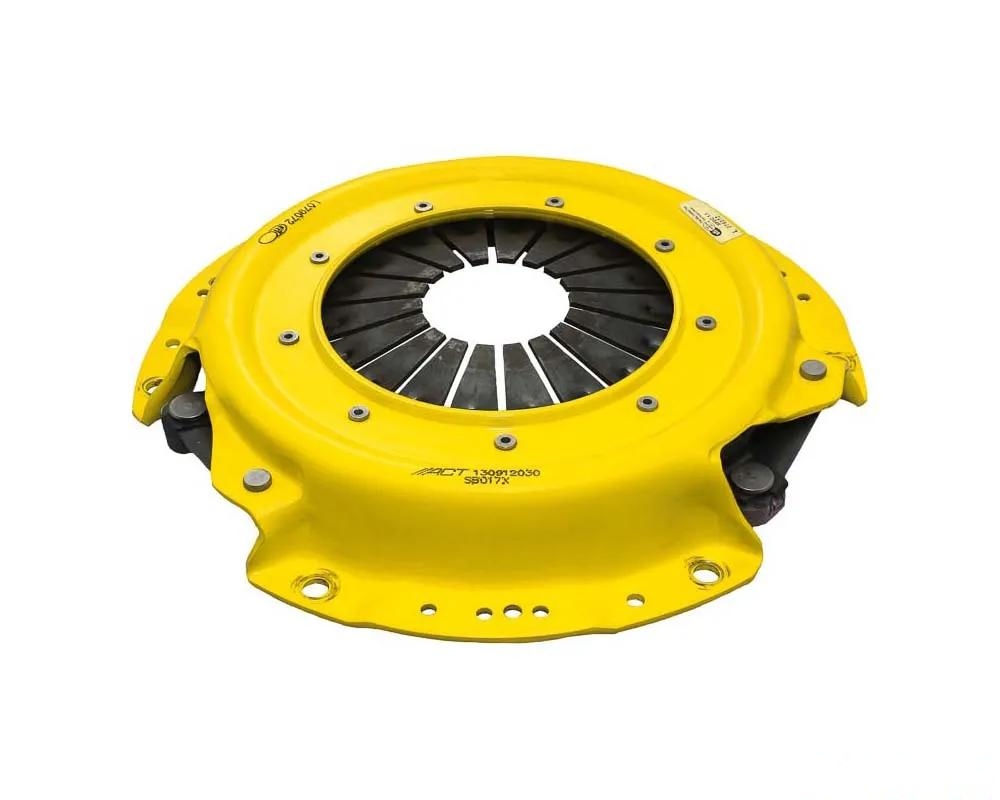

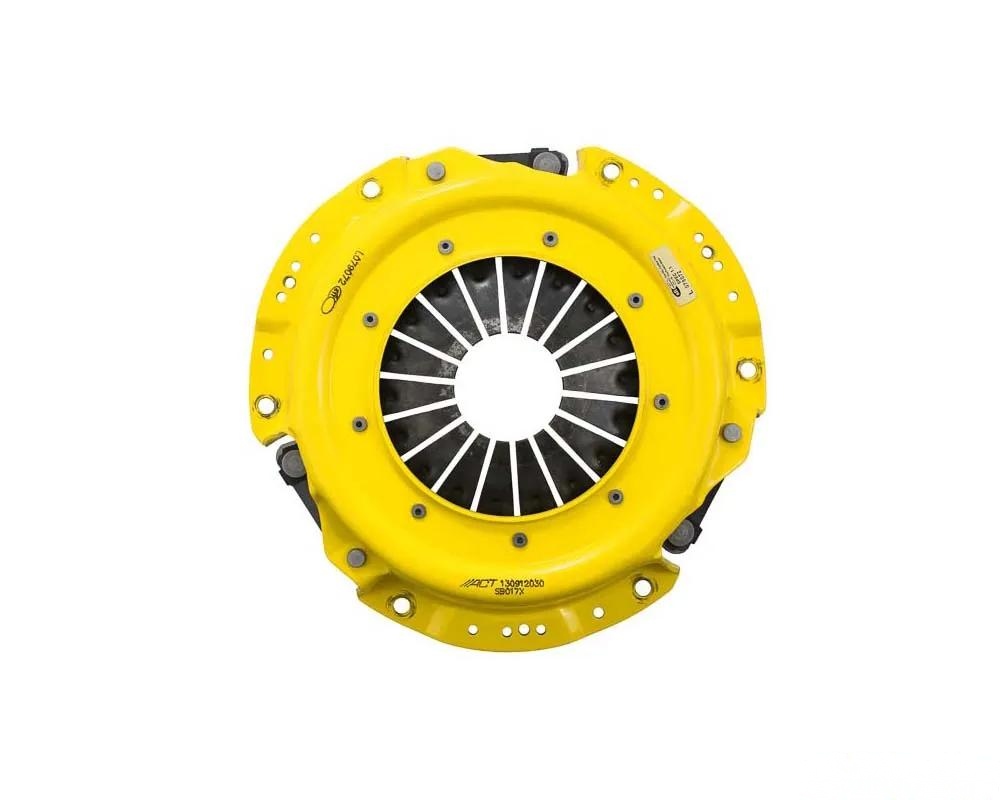

ACT Xtreme Pressure Plate SB017X

The ACT Xtreme Pressure Plate SB017X is engineered for serious performance, utilizing an exclusive diaphragm design that enhances clamp load, minimizes deflection, and extends clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring exceptional durability and reliability under demanding conditions. With precision cover stampings, this pressure plate delivers the rigidity needed for consistent performance.

Performance Features

• Increases clamp load by 50% to 120%, providing significant engagement strength.
• Moderate to heavy pedal effort for a direct connection to the drivetrain.
• Designed for both street and race applications, ensuring versatility.
• 100% clamp load tested and dynamically balanced for high RPM reliability.
• Constructed to improve durability with precise assembly and accurate balancing.

Specifications

• Diameter: 8.8 inches (225 mm)
• Type: Xtreme
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 10.9 lbs
• SFI Rating: 1.1

Installation Notes

• Must be paired with an ACT flywheel and disc for optimal performance.
• Pressure plate bolts are included (M8-1.25 x 16mm).
• For detailed installation instructions, CLICK HERE.

Confirmed Fitment

• Scion FRS: 2013-2016
• Subaru BRZ: 2013-2020
• Toyota GT-86: 2012-2021
