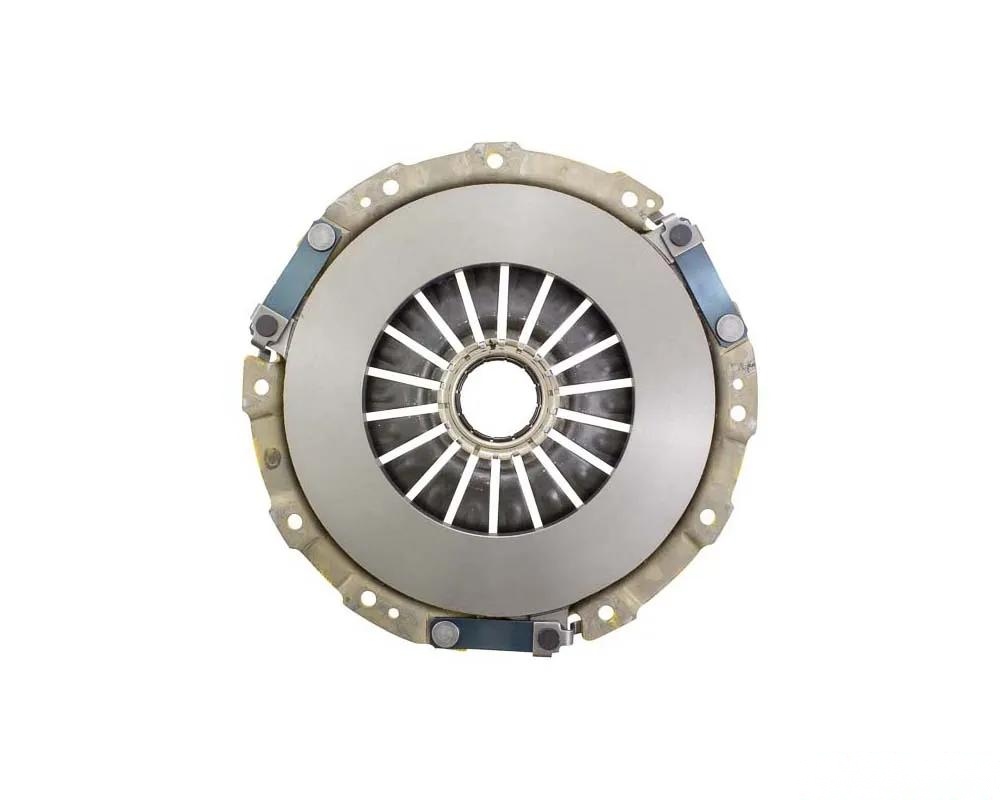

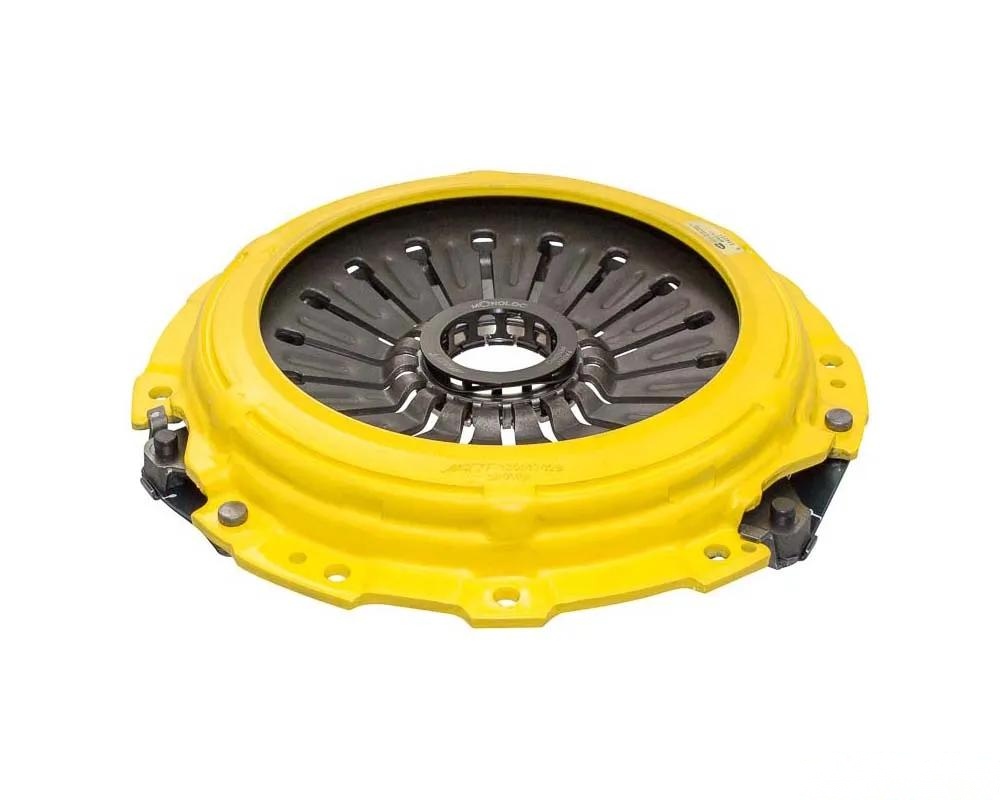

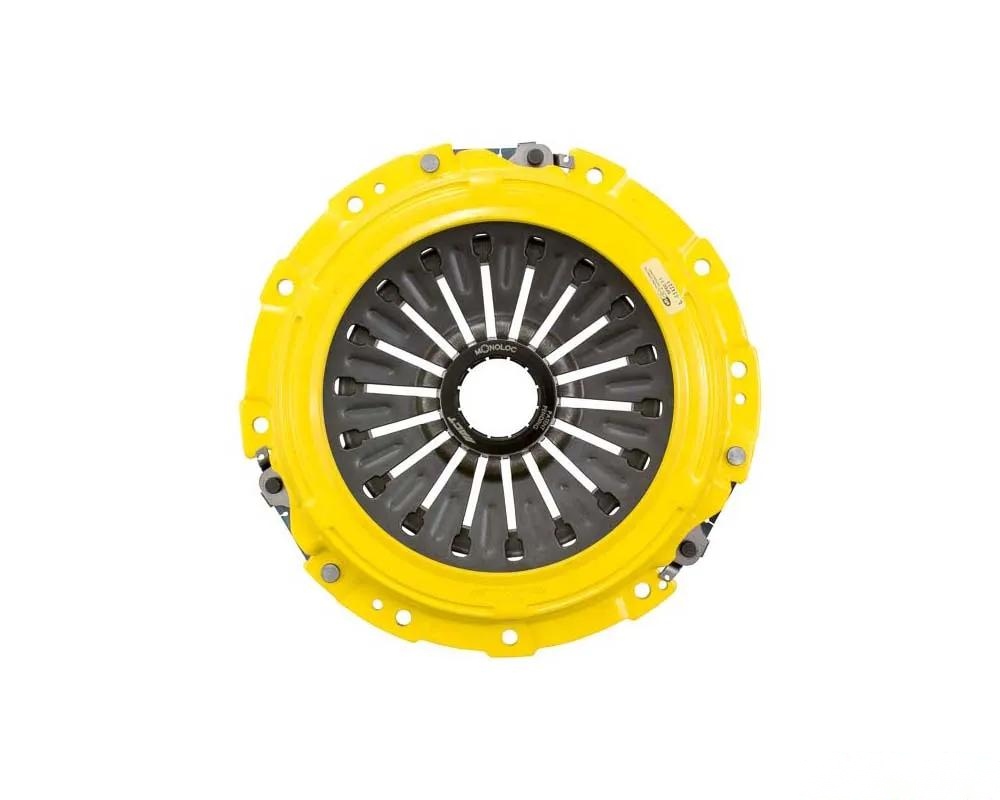

ACT Xtreme Pressure Plate SB019X

The ACT SB019X Xtreme Pressure Plate is engineered for performance-driven applications, providing an optimal balance of increased clamp load and durability. Utilizing an exclusive diaphragm design, this pressure plate enhances clamp load by 50 to 120 percent while minimizing deflection, resulting in improved clutch life and reliability under stress.

Construction and Design

Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring superior performance and longevity. The precision cover stampings contribute to the rigidity and consistency of the pressure plate, making it a reliable choice for both street and race environments. The Monoloc system serves as a direct replacement for the standard two-piece wedge collar and wire ring found in pull-type clutches, enhancing the overall design.

Performance Features

• Moderate to heavy pedal effort provides confidence during aggressive shifts.
• Extended life expectancy due to ACT's innovative diaphragm design.
• Engineered for improved durability with precise assembly and dynamic balancing.
• Suitable for both street and racing applications.
• 100% clamp load tested, ensuring smooth operation at high RPMs.

Specifications

• Diameter: 9.4 in (240 mm)
• Type: Xtreme
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight: 12.9 lbs
• SFI Rating: 1.1

Installation Notes

For detailed installation instructions, refer to the installation guide here.

Compatibility

The SB019X is specifically designed for the following models:

• Subaru Impreza (2004-2014)
• Subaru Legacy (2007-2009)
• Subaru STI (2004-2021)
• Subaru WRX (2013-2022)

With its robust construction and performance-oriented design, the ACT SB019X Xtreme Pressure Plate is a solid choice for those looking to enhance their clutch system's performance.
