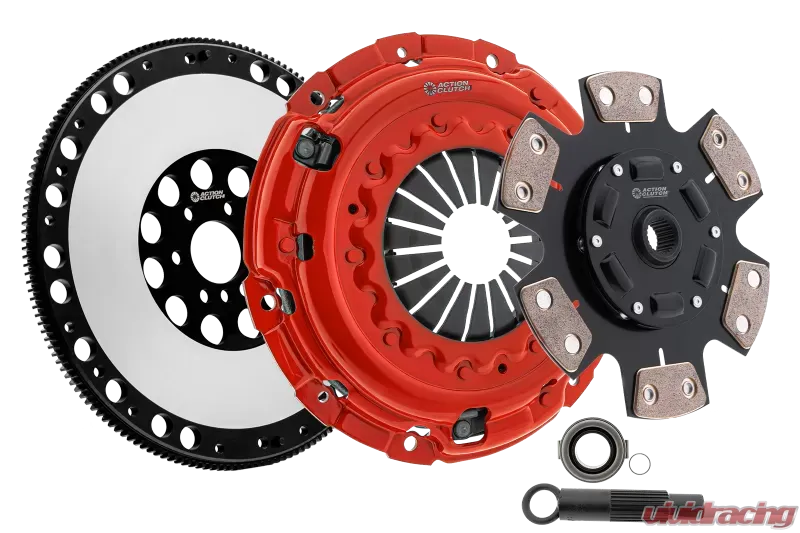

Action Clutch 03-12 Honda Accord 2.4L (K24A4) Stage 3 Clutch Kit (1MS) w/Lightened Flywheel

Description

Action Clutch’s Stage 3 (1MS) Clutch Kit is designed to withstand even the most challenging conditions. Featuring a heavy-duty single diaphragm pressure plate, reinforced drive straps, and a Sprung MIBA Ceramic (available in a 4 or 6 puck) disc, this kit provides peak performance and extreme durability for low/mild horsepower vehicles. Our Sprung MIBA Ceramic clutch kit provides quicker engagement and will introduce some clutch chatter, which will minimize after proper break-in. For those looking to take their vehicles to the next level, the Stage 3 (1MS) Action Clutch Kit provides maximum control and power with little compromise on reliability. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 170% INCREASED HOLDING CAPACITY OVER FACTORY KIT HEAVY-DUTY STREET USE AND OCCASIONAL DRAG / ROAD / DRIFT RACING
Specifications:

• Alignment Tool Included: Yes
• Alignment Tool Model: AT78
• Break-in Care: 500 street miles. Keep RPM’s under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
• Clutch Disk Diameter: 215
• Clutch Disk Model: ACR-CB6-215 1 1/32X24T-S
• Clutch Disk Spline Count: 24
• Clutch Disk Spline Diameter: 1.03125
• Clutch Kit Type: Stage 3 Clutch Kit (1MS)
• Counterweight Assist: No
• Disclaimer: Ceramic based clutch discs intend to increase the holding capacity and durability of the clutch as opposed to an increased life expectancy. Using a ceramic based material for easy street driving may contribute to premature wear of the clutch kit due to the harsher engagement and because of the higher tendency to slip the clutch during street driving. Increase in holding capacity is rated in Crank Torque, not Wheel Torque
• Flywheel Included: Yes
• Flywheel Model: AC102FW
• Flywheel Style: Lightened Flywheel
• Friction Material: Metallic
• Installation Care: 2008+ Honda Accord 2.4L MUST USE HONDATA FLASH PRO
• Mounting Hardware Included: No
• Package Contents: Sprung MIBA Ceramic 6 Puck Disc
• Pilot Bearing Included: Yes
• Pilot Bearing Model: 22103-PNA-004
• Pressure Plate Model: HCC539HD R 6.5KN
• Release Bearing Included: Yes
• Release Bearing Model: RB-0313
• Release Style: Conventional Release Bearing
• Spring Cover Included: Yes
• Weight: 26
