AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. Most sensors come with a mating connector and pins for ease of installation.

Features:

• High-quality sealed sensor housings
• Mating connector and pins included (most sensors)
• Accurate and affordable!

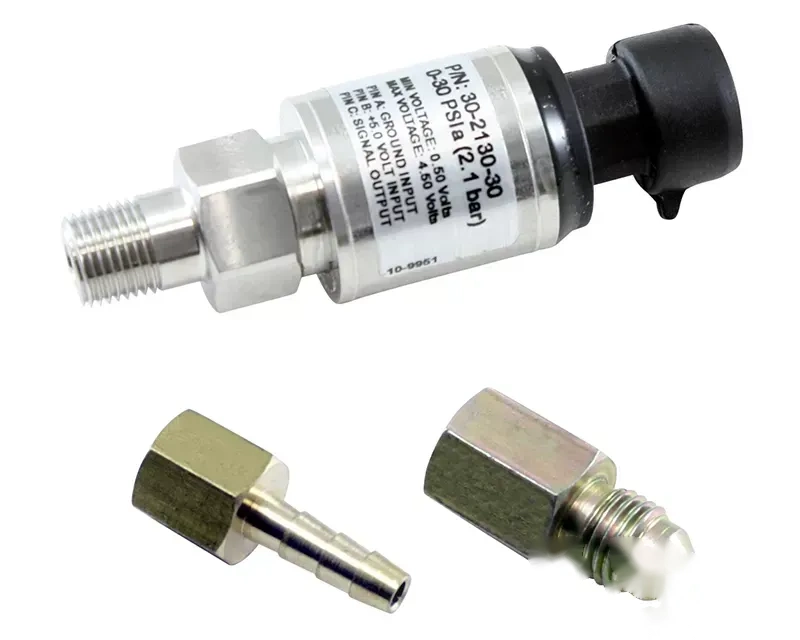

• 2 BAR / 30 PSIa MAP Stainless Steel Sensor Kit
• Stainless Steel Sensor Body
• 1/8" NPT Male Thread
• Includes: 2 BAR / 30 PSIa Stainless Steel Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter.
• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 300PSI
• Response Time: < 1mS
• Wetted Materials: 304L & 316L Stainless Steel
• Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Weight: <85g
• Supply Current: <6mA at 5 Vdc
• Output: .5 to 4.5Vdc Linear
• Transfer Function: PSI = (7.5*(Voltage))-18.75
• Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)

Fitment:

• Universal
