APR Roll-Control Sway Bar (SUS00030)

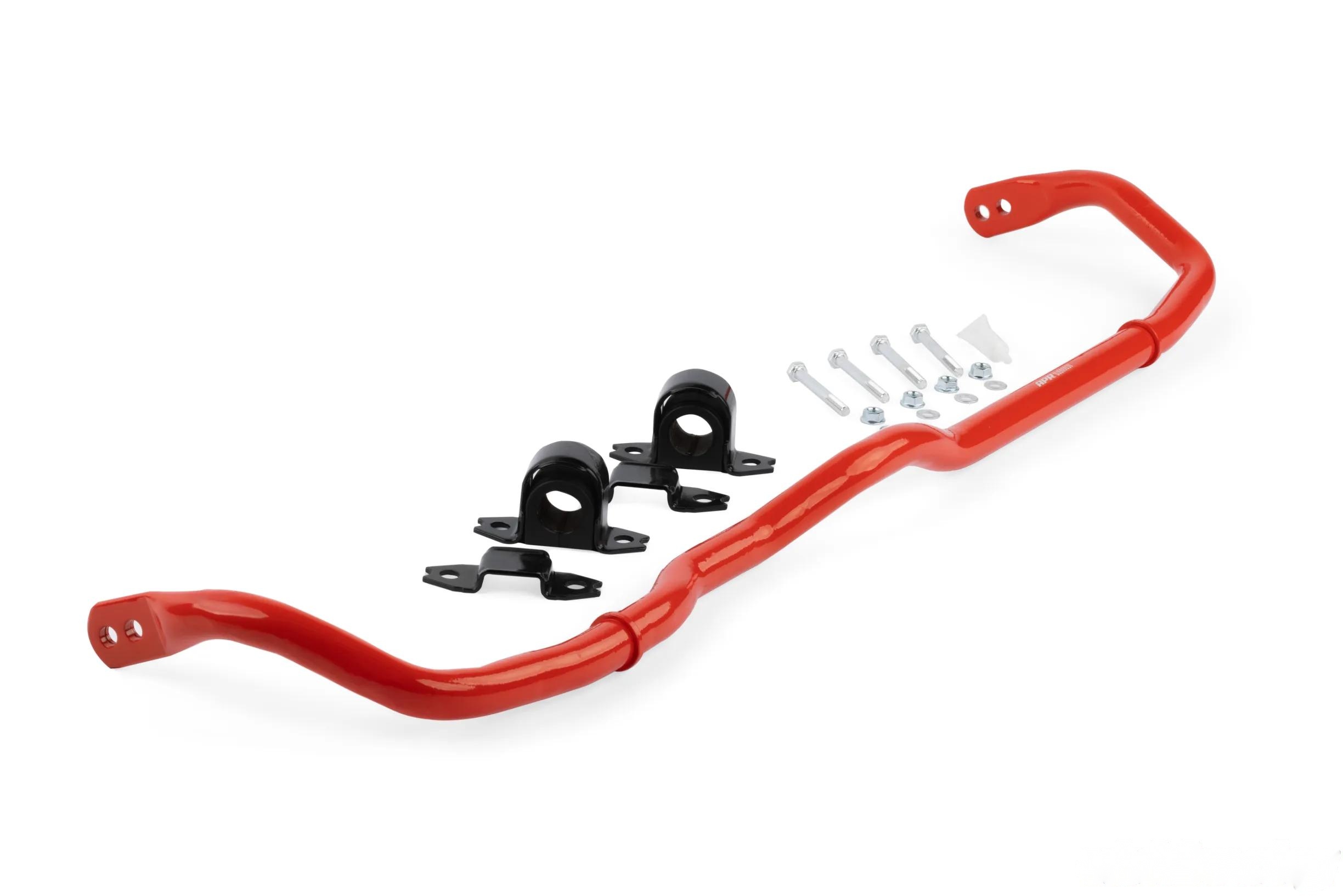

The APR Roll-Control Sway Bar, model SUS00030, is designed for automotive enthusiasts looking to enhance their vehicle's cornering capabilities while maintaining everyday comfort. This front sway bar is engineered specifically for the MQB and MQB EVO platforms, providing a significant upgrade over factory-installed sway bars.

Technical Specifications

• Material: High-tensile strength steel
• Diameter: 28 mm
• Wall Thickness: 4.5 mm
• Spring Rate: 339 lbs/in (soft) / 388 lbs/in (stiff)
• Weight Reduction: Hollow bar design
• Finish: Corrosion-resistant red powder coat
• Adjustability: 2 stiffness settings

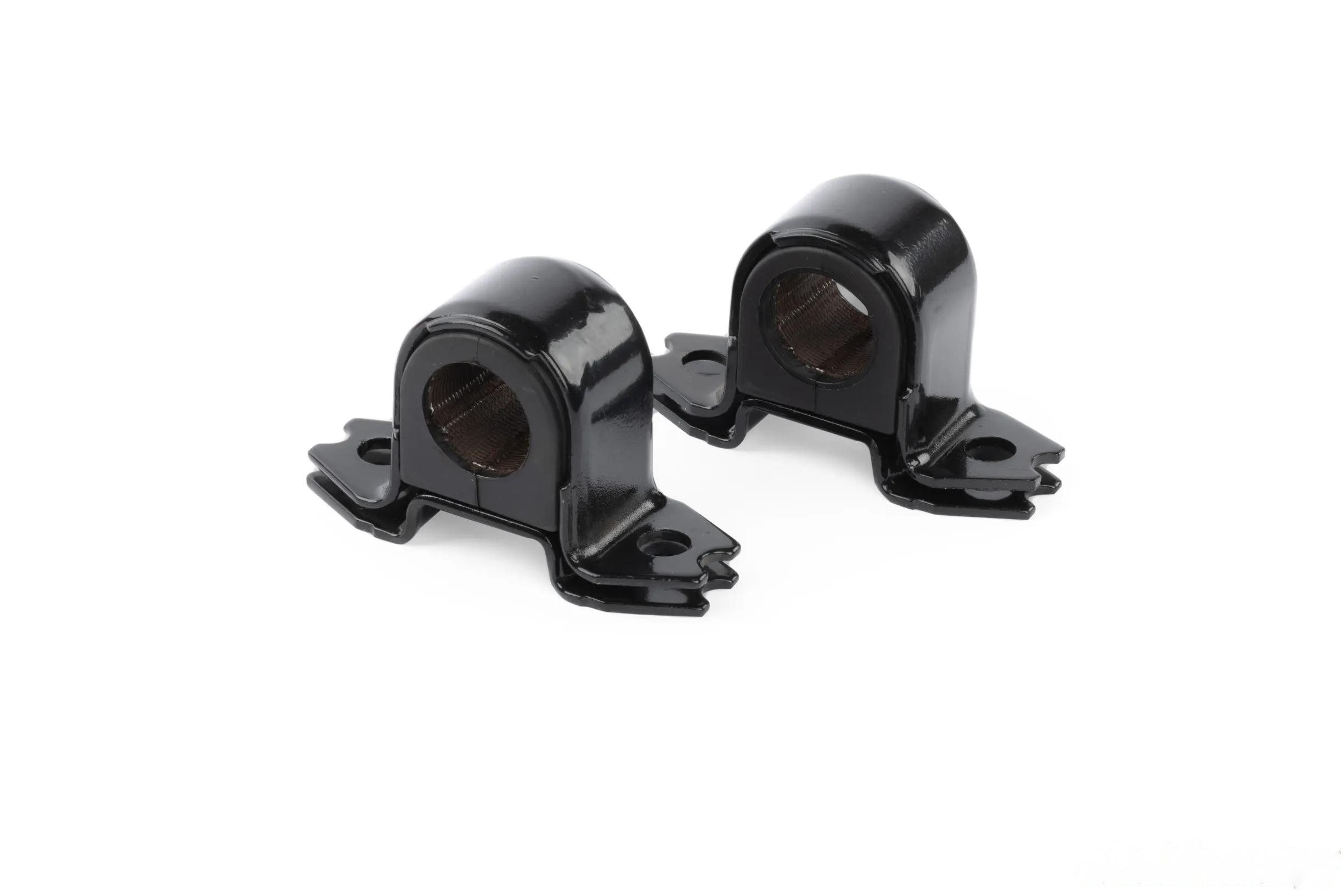

• Bushing Material: High-performance polyurethane

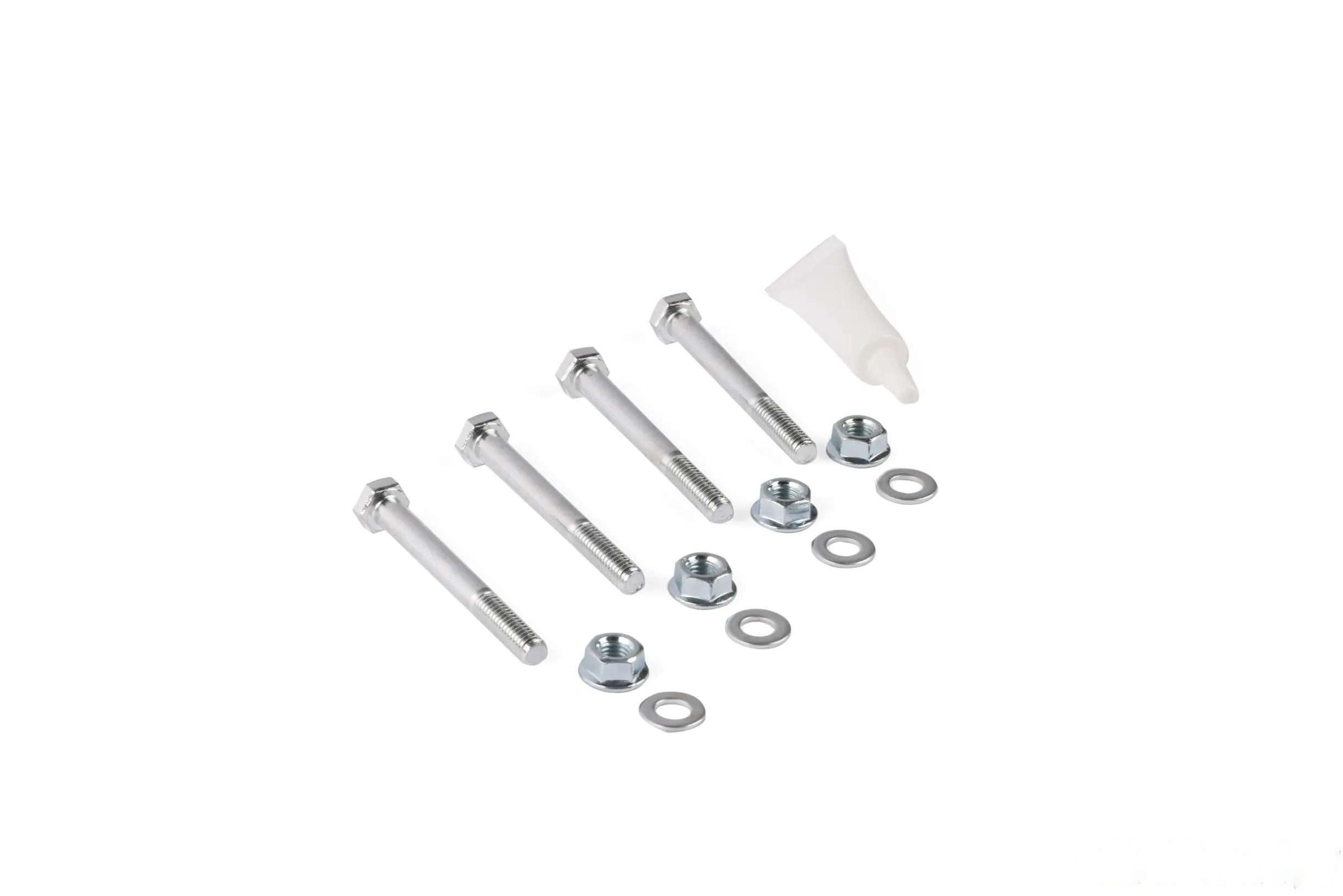

• Mounting Hardware: Included
• Platform: MQB/MQB EVO

Performance Enhancements

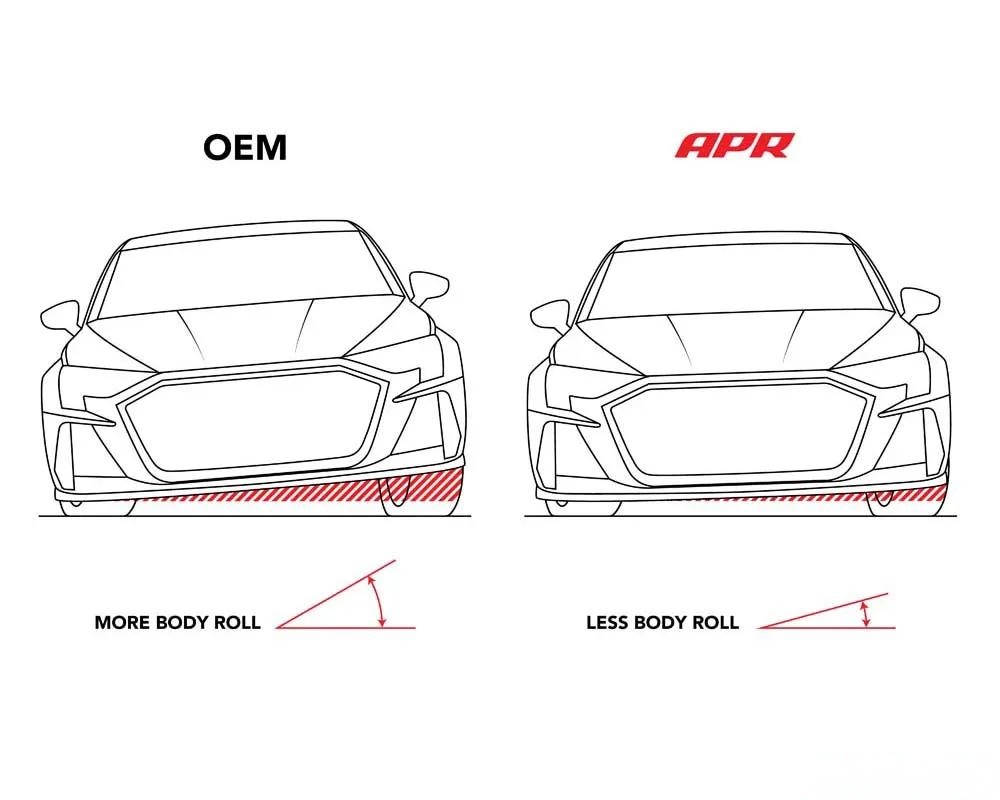

By increasing the bar diameter to 28 mm and enhancing the wall thickness, the SUS00030 achieves a notable improvement in stiffness compared to stock sway bars. This results in a 65% to 88% increase in spring rate over the factory MK7/MK8 Golf R bars, translating into reduced body roll and improved handling characteristics during aggressive cornering.

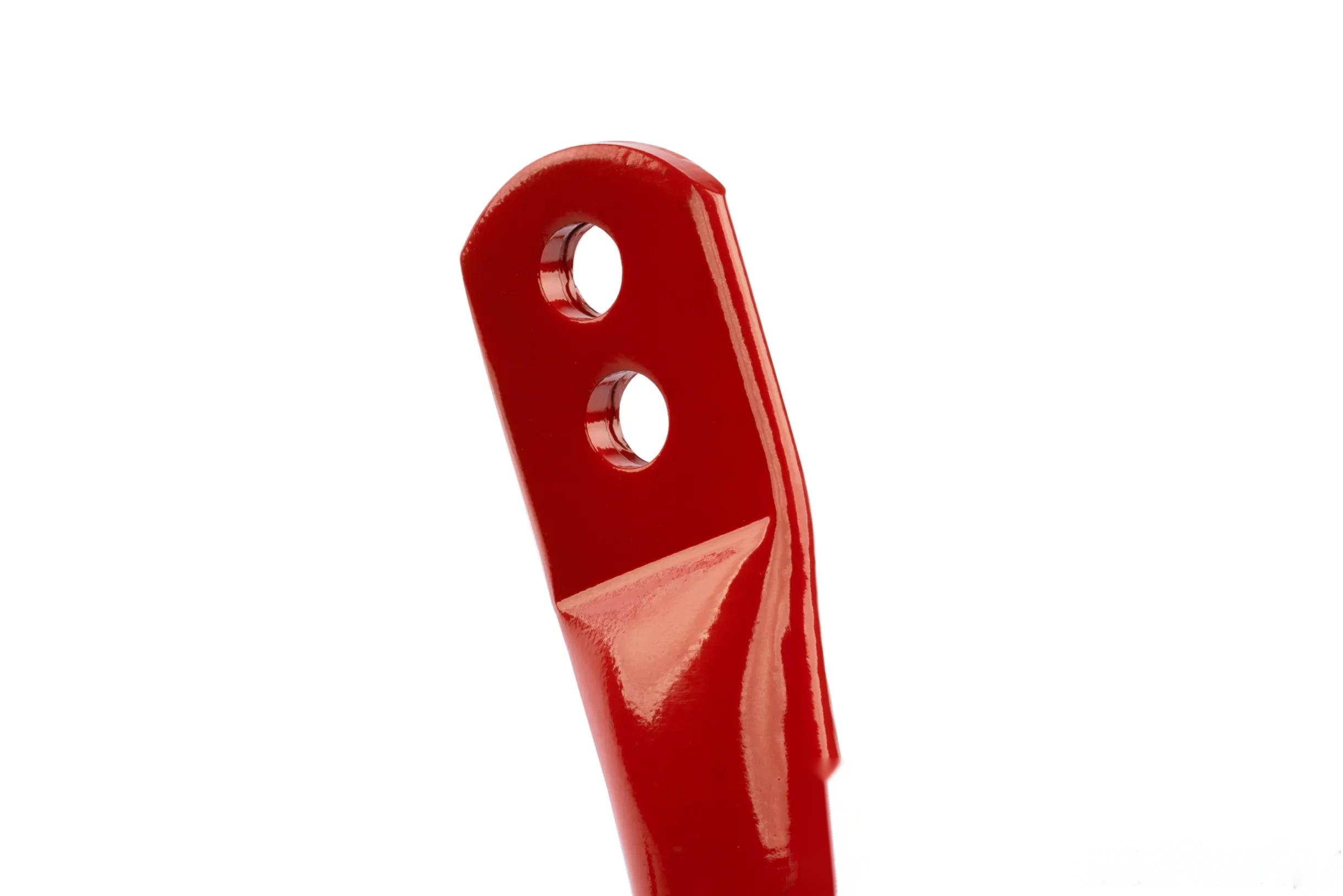

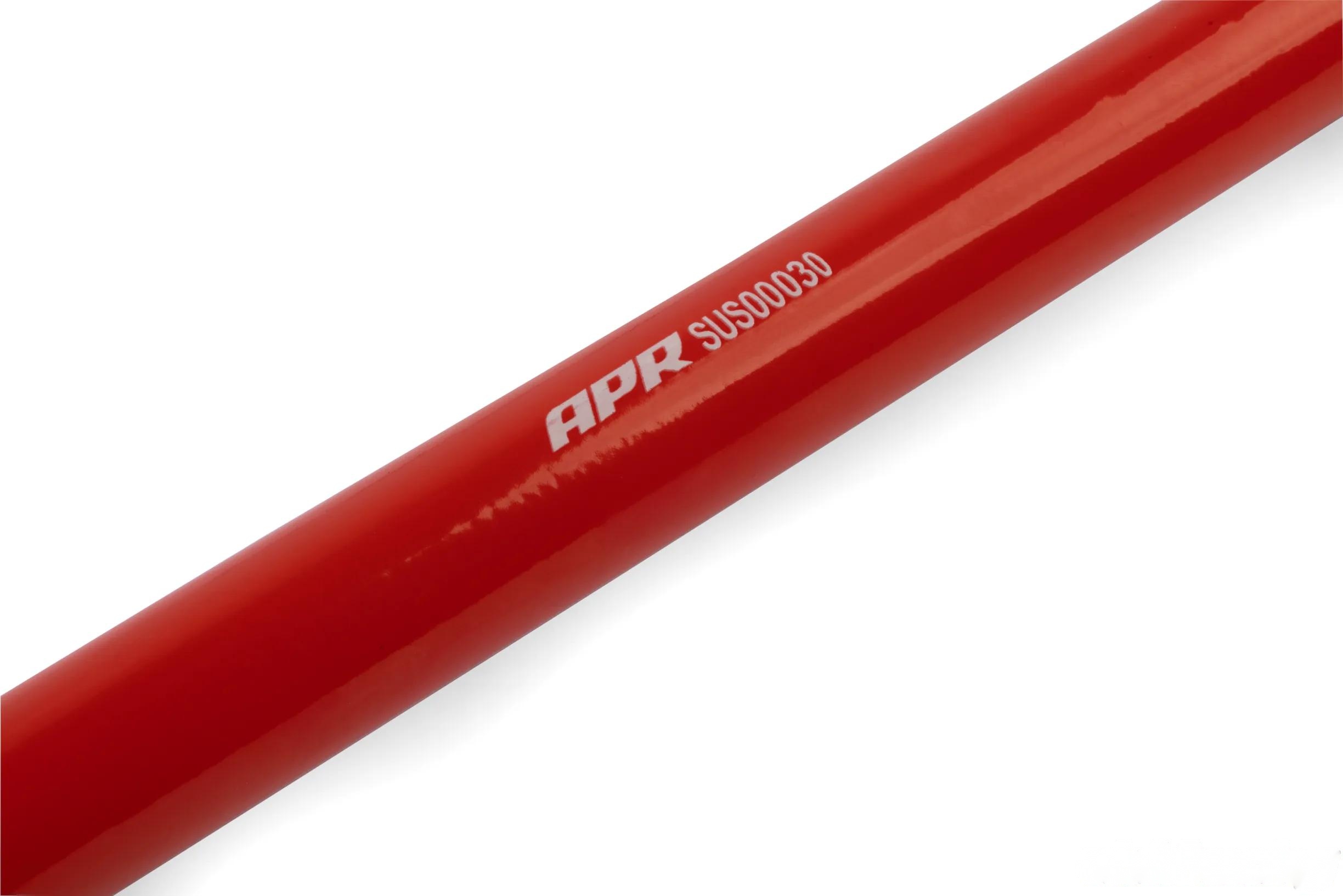

The sway bar features a hollow design, which not only minimizes weight but also maximizes strength, ensuring durability under demanding driving conditions. Each bar is precision CNC-bent from a single piece of steel, eliminating welds and potential failure points. The bar ends are forge-pressed and quench-hardened to achieve optimal strength, further enhancing reliability.

Installation Notes

The APR Roll-Control Sway Bar is a direct replacement for factory sway bars, allowing for a straightforward installation without the need for modifications. Simply remove the original sway bar and replace it with the APR unit to experience immediate enhancements in handling dynamics.

Fitment

• Audi A3 Quattro 2015-2025
• Audi RS3 2017-2025
• Audi S3 2015-2025
• Audi TT MK3 Quattro 2016-2023
• Volkswagen Golf MK7 2017-2019
• Volkswagen Golf R 2015-2025

Upgrade your vehicle's handling with the APR Roll-Control Sway Bar (SUS00030) and experience the difference in cornering performance and stability.
