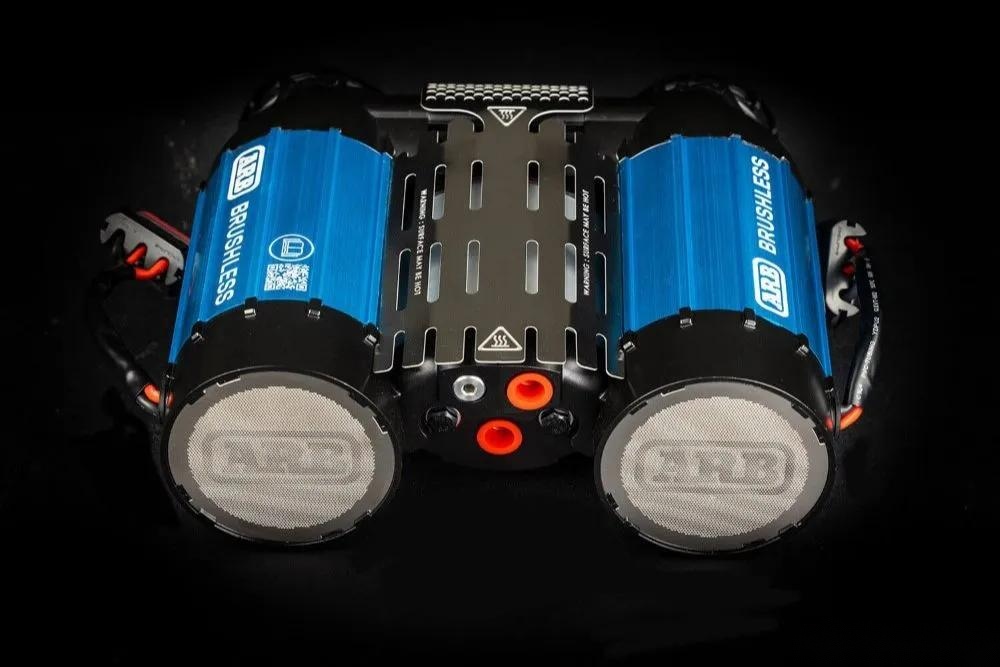

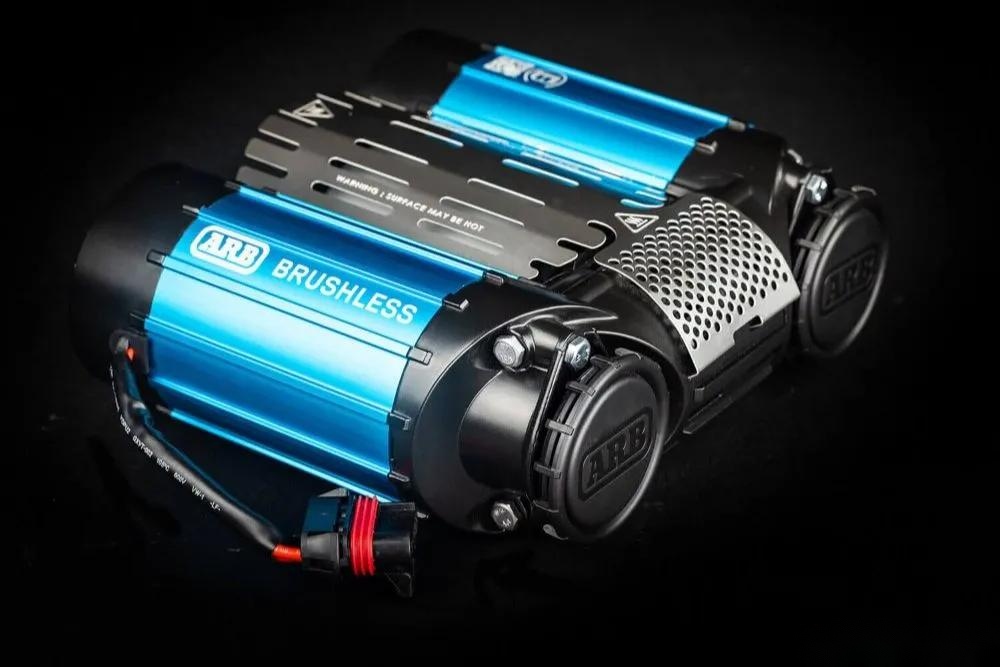

Discover the next generation of air compressors crafted specifically for 4WD enthusiasts: The ARB Brushless Compressor. Utilizing state-of-the-art technology, these groundbreaking compressors are equipped with the industry's first brushless motor, setting new standards in performance, efficiency, and reliability

Experience a remarkable 50% boost in output compared to our current market leading compressors. Whether you're navigating rugged landscapes or setting up your campsite, the new ARB Brushless Air Compressors provide the power and reliability to keep your gear running flawlessly and your campsite essentials fully inflated.

This line expansion adds to ARB's existing compressor collection, tailored for those who demand unmatched performance. Plus, it seamlessly integrates with all existing ARB Air accessories, including fittings, hose kits, and inflators!
Features & Benefits:

• Brushless motors have less wearing parts, rev faster and can compress air quicker. Meaning less time inflating and more time adventuring.
• Both the new brushless single and twin compressors boast an impressive 50% increase in output compared to our already market leading compressors, making tire inflation faster than ever.
• Electronically controlled fans will continue to operate even when the compressor is no longer in use, ensuring the compressor is kept at optimum operating temperature.
• Programmed to adjust speed to maintain optimum performance and operation across all pressures and ambient temperature conditions.

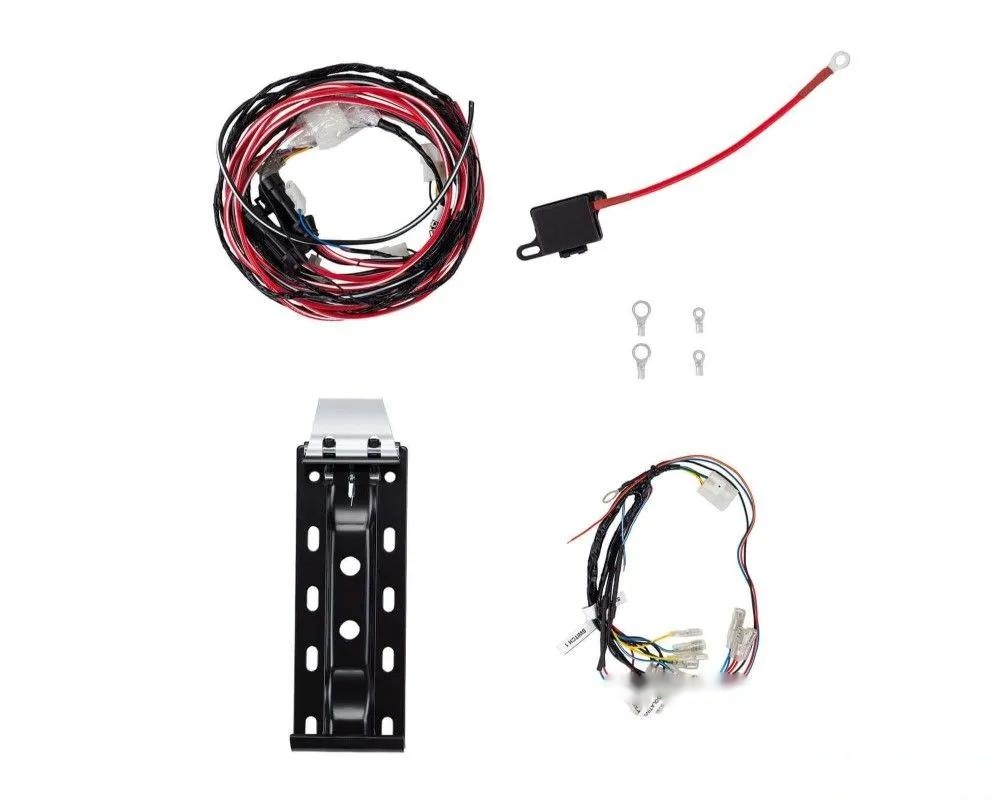

• Quick-release mounts for on-board models making installation simpler and faster
• Built-in protection against voltage spikes, drops or fluctuations, as well as safeguards against over-current and motor stall.
• Programmed to constantly monitor performance and make necessary adjustments to account for external factors, such as temperature and variations in vehicle charging systems. Brushless on-board compressors offer 100% duty cycle, with no need to shutdown to cool off.
• Relays have been removed from on-board models to simplify and speed up installation.
• Live diagnostics with both audio and visual alerts.
• Portable Brushless models feature blue clamps signaling a polarity correction harness, this allows either clamp to be connected to either battery terminal.

Specifications

• Volts: 12V
• Max Psi: 150
• Max Amps: 90
• Duty Cycle: 100%
• Air Flow 0PSI: 9.18 CFM
• Air Flow 29PSI: 6.20 CFM
• Width: 13.31 inch
• Height: 6.69 inch
• Length: 14.49 inch
• Weight: 15.8 lb
• IP Rating: IP67 Water Resistant

Note:

• Now accepting orders for On-Board units, with stock arriving early March.
