AutoMeter GAUGE; FUEL LEVEL; 2 1/16in.; 0OE TO 90OF; ELEC; CARBON FIBER

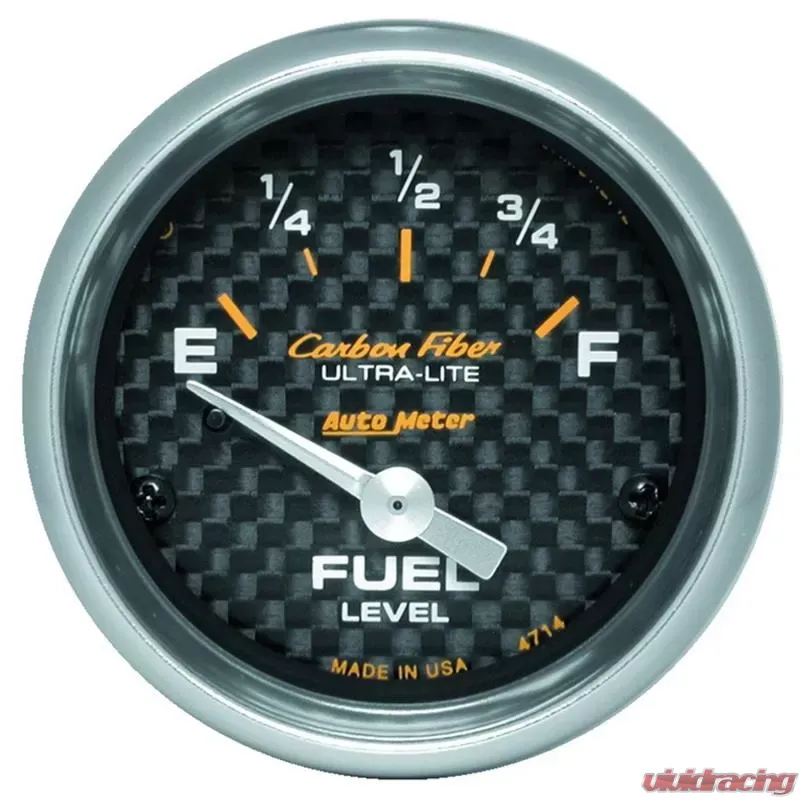

AutoMeter 4714 Fuel Level Gauge

The AutoMeter 4714 Fuel Level Gauge is an essential addition to any dashboard, providing accurate readings for your fuel levels. With five different resistance range configurations, it easily matches your existing fuel sending unit. Choose from options like 0-90 ohm for GM vehicles from the mid-60s to mid-90s, 0-30 ohm for early GM models, 73-10 ohm for pre-90s Ford and Chrysler, 16-158 ohm for later model Fords, and 240-33 ohm for aftermarket senders such as the AutoMeter 3262. Plus, our patented air core meter movement features extra dampening to minimize the effects of fuel slosh in non-baffled tanks, ensuring reliable performance.

Key Features

• Type: Analog
• Bezel Color: Bright Anodized
• Bezel Style: Super Bezel
• Electric or Mechanical: Electric
• Face Color: Carbon Fiber
• Gauge Size: 2-1/16 inches (52.4mm)
• Illuminated: Yes, with white incandescent lighting
• Pointer Color: Silver
• Voltage Range: 8-18 V
• Movement Type: Electric Air-Core
• WARNING: CA Proposition 65 compliant

Specifications

Customer Insights

Users appreciate the clarity and responsiveness of the AutoMeter 4714, noting that it provides reliable fuel level readings even during aggressive driving. Many have successfully installed it in classic cars, where it seamlessly integrates with existing systems. The carbon fiber face adds a modern touch that enhances the overall aesthetic of their dashboards.
