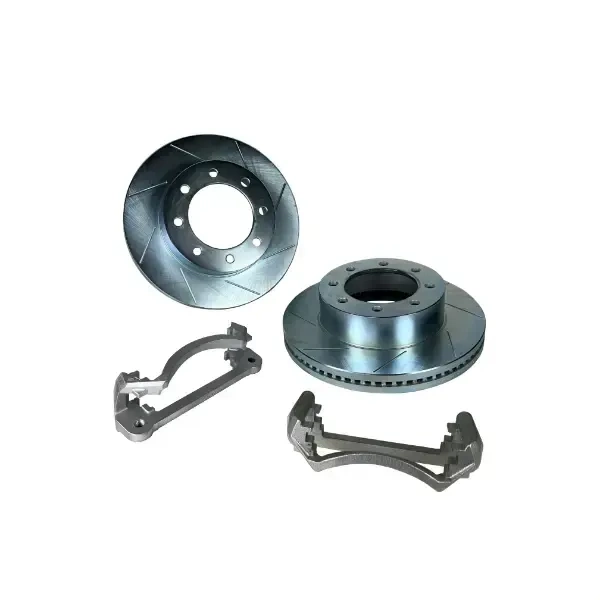

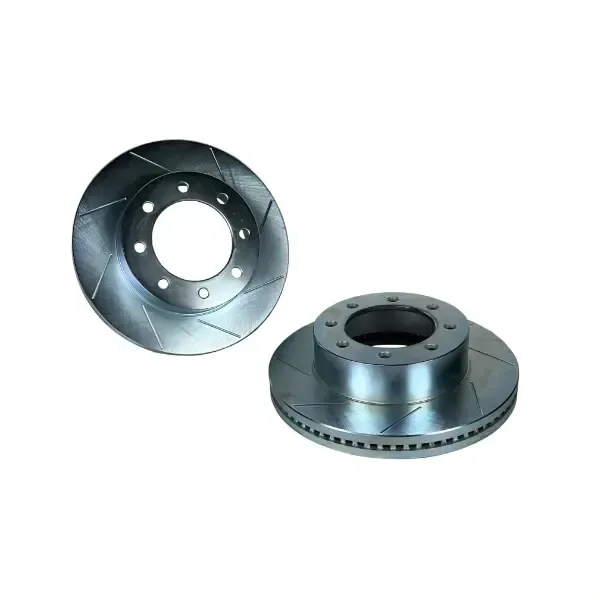

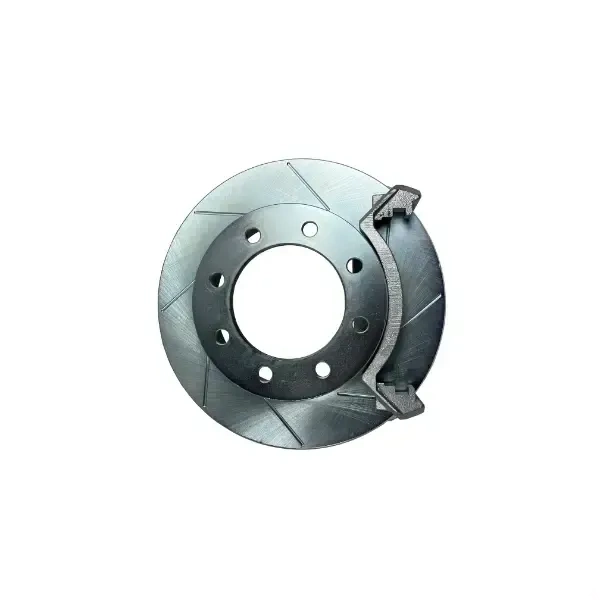

The Baer Big Claw HD performance rotor upgrade is a simple, bolt-on kit that designed to provide improved braking performance specifically for HD pickups. The kit includes a pair of 1pc, larger than stock diameter rotors and caliper relocation anchor brackets. The larger diameter rotors are purpose cast with added material in the fire path, a directional curved vane design and slotted friction surface that together provide increased brake torque and improved cooling for more consistent braking performance and reduced brake fade. The Big Claw HD rotors feature a zinc-plated finish for improved corrosion resistance and are designed to fit in many OE wheels.

Installation Guide


Features:

• Larger Than Stock Rotor for Increased Brake Torque and Reduced Stopping Distance (Use Template Below to Verify Wheel Fitment including Spare Tire/Wheel)
• Slotted Friction Surface Provides an Escape Route for the Dust and Gasses Produced During Braking for a Consistent Pedal Feel
• Features 1-Piece, Purpose-Cast Rotor with Increased Mass in Friction Area for Better Heat Absorption
• Directionally Vaned Rotor Acts Like a Centrifugal Pump to Maximize Air Flow for Better Heat Dissipation and Cooling
• Direct Bolt-on System, No Bleeding of the Brakes Required
• Anchor Will Accept OE Abutment Clips, OE Pads/OE Replacement Pads and Caliper
• Zinc Plated Finish to Help Resist Rust and Corrosion and an Improved Visual Appearance

Specifications:

• ABS Tone Ring Included : No
• Applications : Ram 2500/3500 19-25
• Axle : Rear
• Brand : Baer Brakes
• Category : Brake
• Center Hole Diameter : 122.900 MM
• Center Hole Diameter : 4.839 IN
• Construction : Full Cast
• Conventional Or Drum-In-Hat Type Rotor : Drum-In-Hat
• Directional or Non-Directional Brake Surface : Directional
• Discard Thickness : 1.260 IN
• Discard Thickness : 32.000 MM
• Emission Code : 6
• Export Description : Brake Components
• Grade Type : Performance
• Material : Cast Iron
• Min Wheel Dia (verify using template) : Minimum Wheel Diameter Will Vary Depending on Specific Wheel, Always use Template to Verify Fitment in a Certain Wheel
• Nominal Thickness : 1.354 IN
• Nominal Thickness : 34.400 MM
• Outside Diameter : 15.000 IN
• Overall Height : 124.800 MM
• Overall Height : 4.913 IN
• Part Type : Disc Brake Rotor Set
• Product Type : Big Claw Rotors
• Prop 65 - Long Label : WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
• Prop65 : A
• Rust Resistant Coating : Yes
• Solid Or Vented Type Rotor : Vented
• Stud/Lug Hole Circle Diameter : 165.1 MM
• Stud/Lug Hole Circle Diameter : 6.50 IN
• Stud/Lug Hole Quantity : 8
• Sub Category : Drums and Rotors
• Surface Type : Slotted & Zinc Plated
• System Notes : Fits Single Rear Wheel Only
• System Notes : It is recommended to also verify fitment of spare tire/wheel
• Template : Z326U
• Title : BIG Claw HD Disc Brake Rotors Rear
• Warranty : Manufacturer's Limited 1 Year Warranty
• Weight : 38.71 LB
• UPC : 90127976081
• Part Number : 2142013-2

Fitment:

• Ram 2500 | 3500 Trucks, 2/4wd w/Single Rear Wheel (SRW) 2019-2025

Note:

• Baer cannot however guarantee fit of the Big Claw rotors into any specific wheel and recommend the customer verify fit using the template specific to the system you are interested in and the wheel of choice, including spare tire/wheel.
