BBS CC0302BPO Wheels: Technical Insights

BBS has been a leader in flow-forming technology since 1996, and the CC0302BPO is a prime example of their expertise. This wheel utilizes a flow-forming process that employs three hydraulic rollers to reshape the inner rim area under high pressure and temperature. This method enhances the mechanical properties of the cast rim, delivering a superior stiffness-to-weight ratio, making it a highly efficient alternative to forged wheels.

Design and Construction

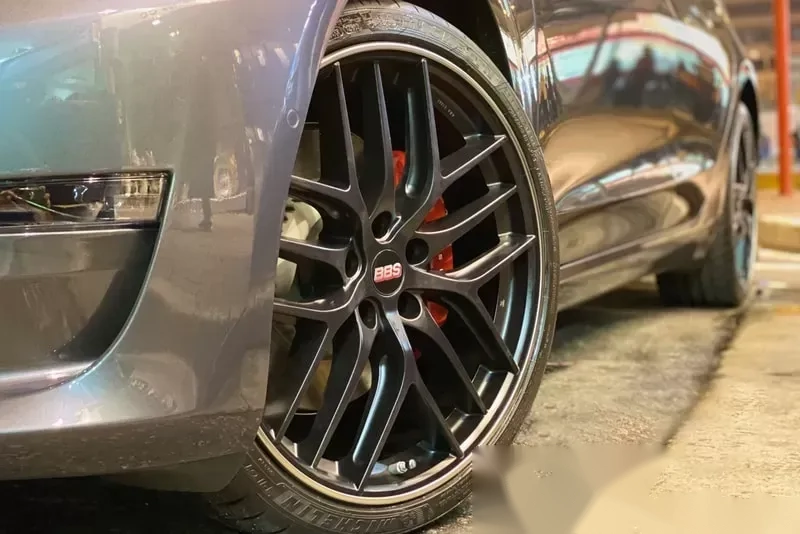

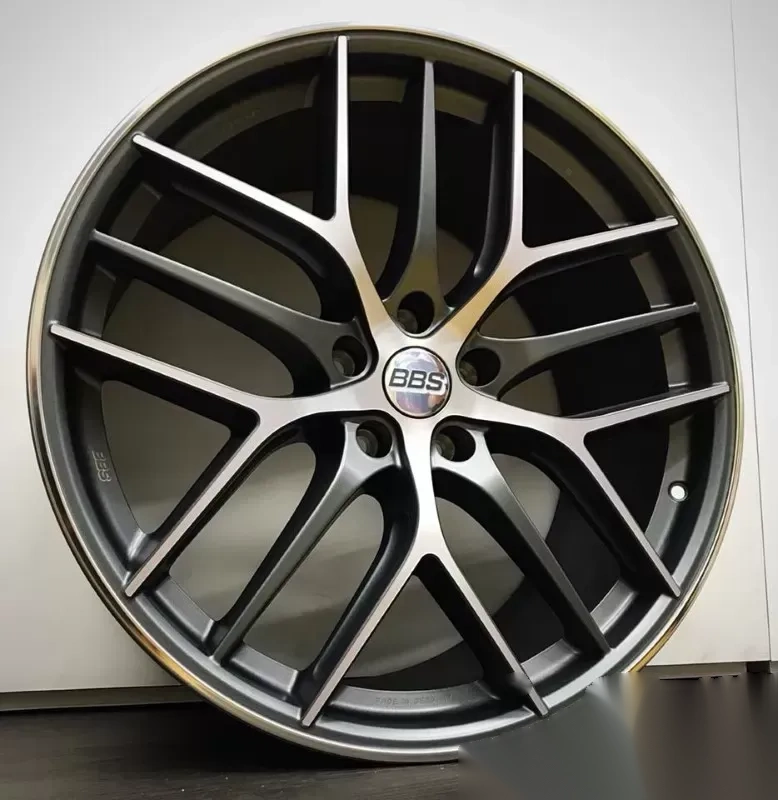

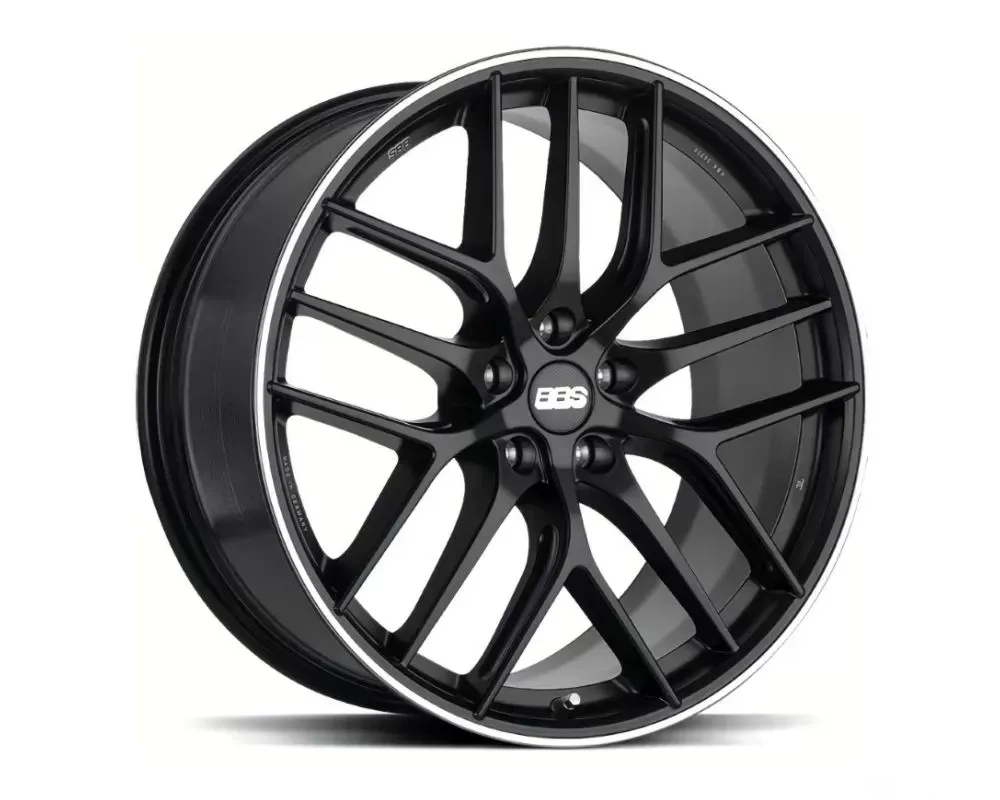

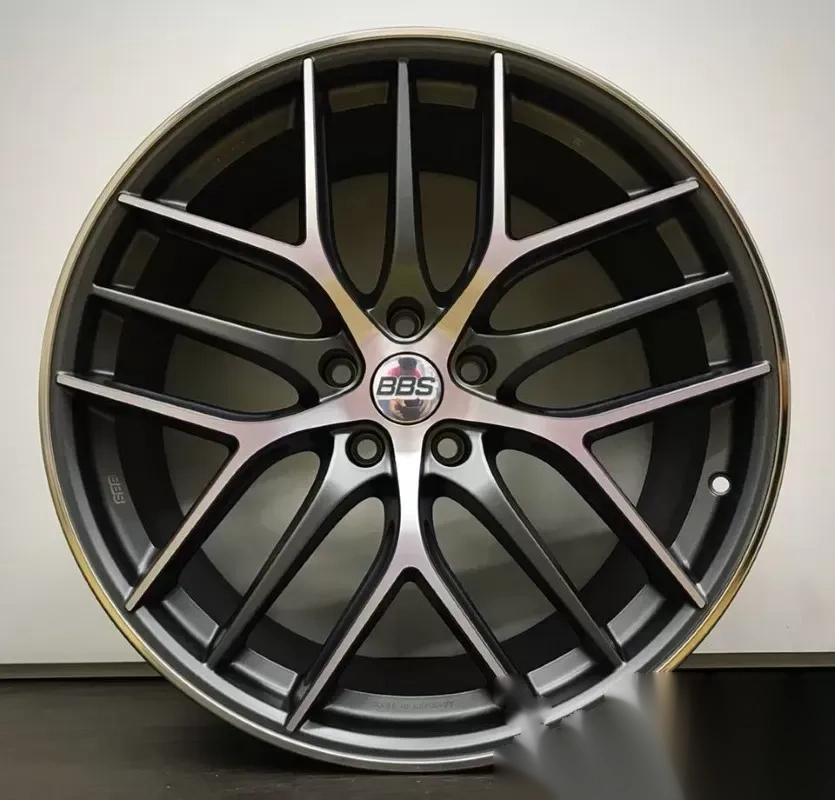

The CC-R design features a striking 3D aesthetic, highlighted by a combination of five graphite-colored spokes and five diamond-cut Y-shaped spokes. The back-milled spokes not only contribute to the wheel's lightweight nature but also add to its visual appeal. This attention to detail ensures that the CC0302BPO is not just about looks; it’s engineered for performance.

Specifications

• Type: One Piece Counter Pressure Cast Wheel with Flow-Formed Rim
• Spoke Design: Back-Milled Spoke Area
• Protection: Stainless Steel Rim Protector
• Weight Optimization: Analyzed via Finite Element Method (FEM)
• Finish: Black Center with Polished Rim
• Size: 20x9
• Bolt Pattern: 5x120
• Offset: 25mm
• Center Bore: PFS

Installation Notes

Ensure compatibility with your vehicle's specifications before installation. The CC0302BPO is designed for specific fitments, and proper installation will maintain the integrity of the ride quality and performance.

Images are for illustrative purposes only; actual product may vary.
